0.30 Thicknes Uns C17200 Beryllium Copper With Aging Heat Treatment

  • 0.30 Thicknes Uns C17200 Beryllium Copper With Aging Heat Treatment
  • 0.30 Thicknes Uns C17200 Beryllium Copper With Aging Heat Treatment
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number Uns C17200
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name C17200 Beryllium Copper Cb4 Berlium Sheet CUBERYLLIUM® Grade CUBERYLLIUM® 172
Thickness 0.30mm Standard ASTM B194
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TF00 Application For Oil Process Platform
High Light

0.30 C17200 Beryllium Copper Sheet

,

C17200 Beryllium Copper Sheet Polished

,

Bright C17200 Beryllium Copper Sheet
Leave a Message
Product Description

Cb4 Berlium Sheet 0.30 Thicknes Uns C17200 Beryllium Copper With Aging Heat Treatment

Normal Production Description
Name Cb4 Beryllium Sheet/C17200 Beryllium Copper Sheet
Product Type Thick Sheet/Solid Sheet
Thickness 0.3mm
Temper TF00, Aging Heat Treatment
Application For industrial
Standard By ASTM B194



About Standard ASTM B194:

ASTM or American Society for Testing and Materials is an international standard developing an organisation. It develops and designs various standards which are useful and beneficial for multiple industrial applications. To improve performance and to get satisfying output in manufacturing, this organisation defines some standards. ASTM B194 is one of the standards which specifies the requirements of Copper-Beryllium alloy Plate, Sheet, Strip, And Rolled Bar.



About CUBERYLLIUM ®:

Cuberyllium is one of the eminent manufacturer and exporter of high Grade Beryllium Copper Alloys, including beryllium copper strips, beryllium copper rods, beryllium copper bars, beryllium copper plates, beryllium copper sheet, beryllium copper wires, beryllium copper tubes and so no.
Cuberyllium offers a commendable range of beryllium copper alloys with competitive price. We offer beryllium copper alloys that are fabricated by our adroit professionals using supreme class raw material as per the set industry norms.
With holding years of experience in manufacturing, we continue to offer robust quality of Beryllium Copper Alloys with very reasonable prices across all over the world.

We not only provide beryllium copper plates, we also manufactures copper beryllium strips to fit various indusrial needs.

We are delivering these strips along with the features like good tensile strength, good thermal conductivity, good conductivity, and corrosion resistance.

Our high-quality copper strips are suitable in many industries like automotive, electronics, and electrical industries.

The are also applicable in home applicances such as switches, relays, thermostats, and connectors.

CUBERYLLIUM ® provide beryllium copper plates, berylllium copper strips,



Chemical Composition of C17200 Beryllium Copper
Cu/ Copper Be/ Beryllium Ni + Co/ Nickel + Cobalt Ni + Co +Fe/ Nickel +Cobalt + Iron
% rem % 1.8-2.0 0.2% Min. 0.6% Max.



Typical Physical Properties of C17200 Beryllium Copper:

Physical properties
Thermal Conductivity BTU/(ft hr F) 60
Specific Heat BTU/lb/ F 0.1
Thermal Expansion in/in/F 9.7 x 10 -6
Density lb/cu in 0.298
Hot Forming 1350-1500 ℉ Air or Water Cooled
Heat Treatment Anneal 1425-1475 ℉ in apporx.HB 150

Hardened 600 ℉ to approx. HB 370		 1/2 hr. & Water Quench

3 hr. Air Cool

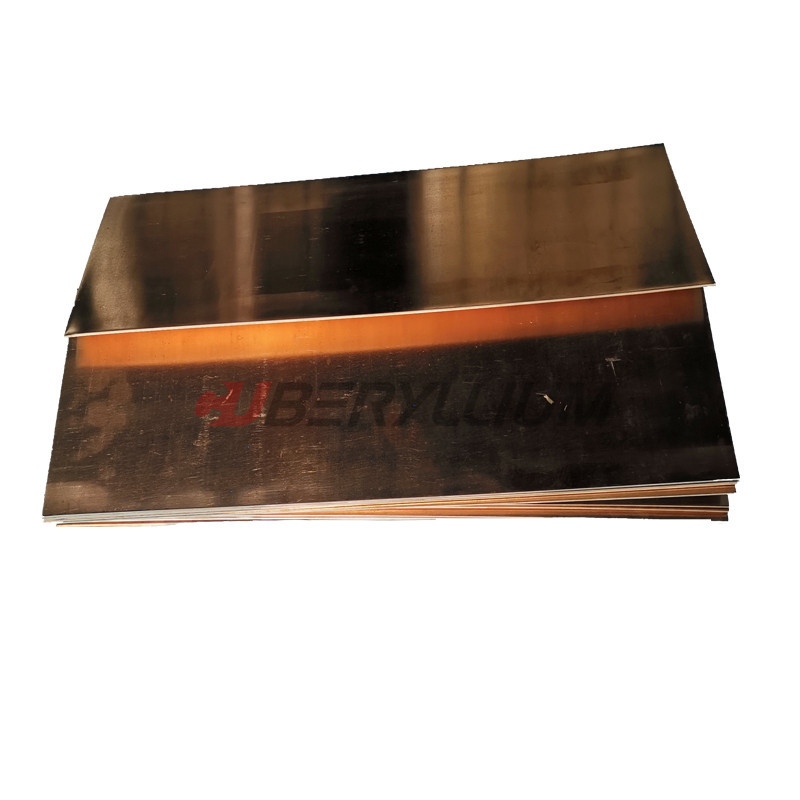

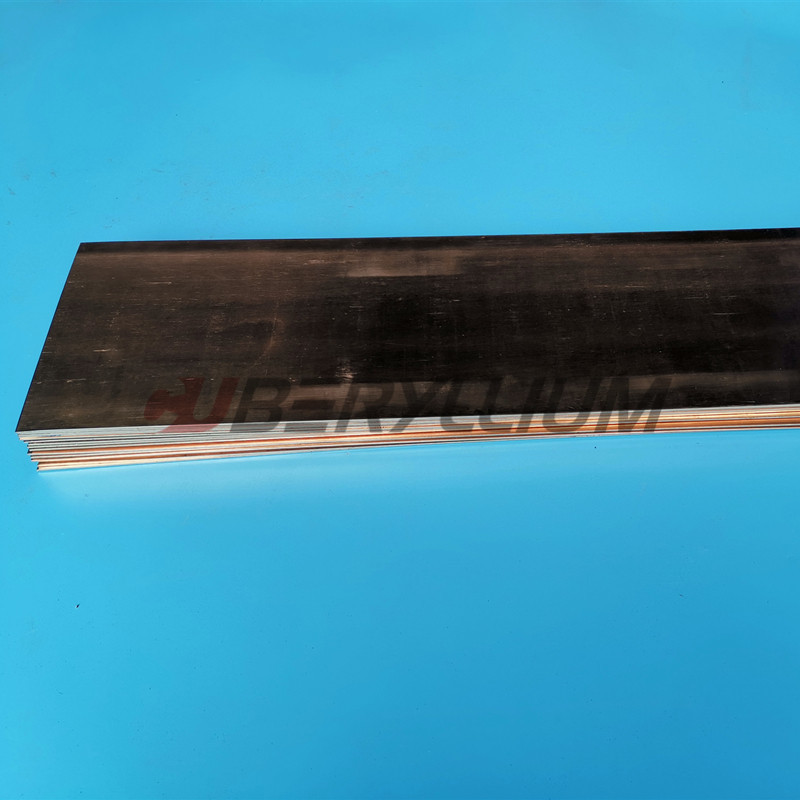

Product Photos:

0.30 Thicknes Uns C17200 Beryllium Copper With Aging Heat Treatment 0



About CUBERYLLIUM ®'s Product Range:

Range of Material C17200 Copper Alloy:
Exceptional production range
C17200 copper rod
C17200 copper strip
C17200 copper wire
C17200 copper plate
C17200 copper billet
C17200 copper disc
C17200 copper tube
