CuBe2 C17510 C17200 Beryllium Copper Sheet Coil Alloy 2mmx200mm For Connectors

CuBe2-UNS.C17200 Beryllium Copper Sheet 2mm(+0/-0.1)x200mm For Connectors

Product Normal Description:

Product Name: Beryllium copper sheet

Grade: CuBe2-UNS.C17200

Standard: ASTM B194

Product Size: 2mm(+0/-0.1)x200mm

State: A(TB00), H(TD04), AT(TF00), HT(TH04)

Typical Application: For connectors

Product Brand: CUBERYLLIUM®

Chemical Composition of CuBe2-UNS.C17200 Beryllium Copper Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.

Typical Physical Properties of CuBe2-UNS.C17200 Beryllium Copper Alloy:

Temper Designations of CuBe2-UNS.C17200 Beryllium Copper Sheet:

Product Advantage of C17200 Beryllium Copper Alloy:

(1) Smooth appearance;

(2) Without zinc nodules and burrs;

(3) No temperature hazard;

(4) Good corrosion resistance;

(5) High strength and high hardness

(6) High thermal conductivity and electrical conductivity

(7) To ensure the mechanical properties of the material unchanged.

Applications of CuBe2-UNS.C17200 Beryllium Copper Alloy:

Applications for beryllium copper C17200 include electrical components and connectors, offshore and marine, powertrains, robotic welding and oifield tooling. The non-magnetic nature of the alloy makes it ideal for use on down-hole wireline tools.

•Electrical/electronic connectors

•Current-carrying springs

•Precision screw machined parts

•Welding electrodes

•Bearings

•Plastic molds

•Corrosion resistant components

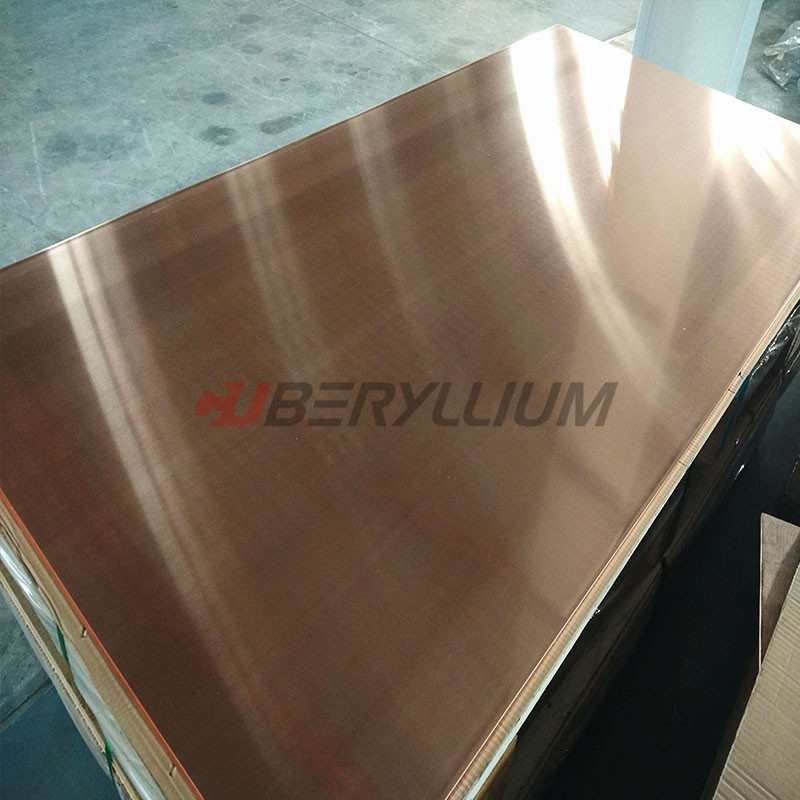

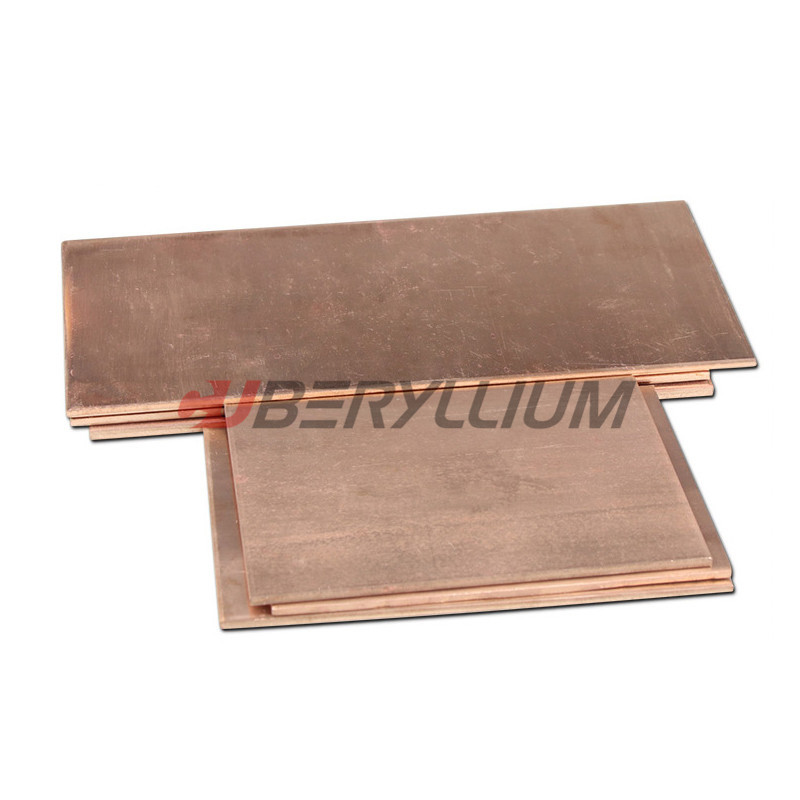

Product Photos:

The most important Technology of CUBERYLLIUM ®

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

Size Available

FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
