Name DIN 2.1247 Copper Plate CUBERYLLIUM® Grade CUBERYLLIUM® 172
Thickness Range 1mm-5mm Max Width 300mm
Max Length 2m Standard ASTM B194
Heat Treatment 3 Hr 315°C Or 2 Hr 315°C Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State A(TB00), H(TD04), AT(TF00), HT(TH04)
Application For Electrical Connectors
High Light

DIN 2.1247 Beryllium Copper Plate 5mmx200mm

,

Beryllium Copper Plate 5mmx200mm

,

beryllium copper foil 5mmx200mm

Leave a Message
Product Description

European Standard DIN 2.1247 Copper Plate 5mmx200mm For Electrical Connectors

Product Normal Description:

Product Name: Copper plate

Grade: European standard DIN 2.1247

Standard: ASTM B194

Product Size: 5mmx200mm

State: A(TB00), H(TD04), AT(TF00), HT(TH04)

Typical Application: For electrical connectors

Product Brand: CUBERYLLIUM®



Product Informance of C17200 Copper Alloy:

C17200 Berylliium Copper Alloy is an excellent material for a number of applications. C172 has excellent bearing properties with extremly high compressive strengths. C17200 also has siginificant non corrosive properties when exposed to harsh conditions. This alloy also has great galling resistance. C17200 has a relative magnetic permability very close to 1.00, making it transparent to the effect of magnetic fields. This alloy is non sparking.



Applications:

  • Landing Gear Bushings
  • Bearings
  • Bushings
  • Flex shafts
  • Pressure Housings



Chemical Composition of DIN 2.1247 Copper Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of DIN 2.1247 Copper Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980





Temper Designations of DIN 2.1247 Copper Plate:

Mechanical and Electrical Properties of C17200 Sheet/Plate
CUBERYLLIUM ASTM Heat Treatment

Thickness

(mm)

Tensile Strength

(Mpa)

Elongation Percent

HARDNESS

Rockwell B or C Scale

Electrical Conductivity
(% IACS)
Designation Designation
A TB00   All Size 400~580 20~60 B45-85 15~19
H TD04 <10 600~880 8~20 B91-103 15~19
10~25 600~850 8~20 B90-102 15 ~ 19
25~50 580~820 8~20 B88-102 15 ~19
>50 580~820 8~20 B88-102 15 ~19
AT TF00
3 hr 315℃

All Size 1120~1358 3~10 C36-41 22 ~ 28
HT TH04 2 hr 315℃ <10 1200~1450 1~5 C38-45 22 ~ 28
10~25 1200~1500 1~5 C38-44 22 ~ 28
25~50 1200~1450 2~5 C37-43 22 ~ 28
>50 1100~1350 2~5 C36-42 22 ~ 28





Product Photos:

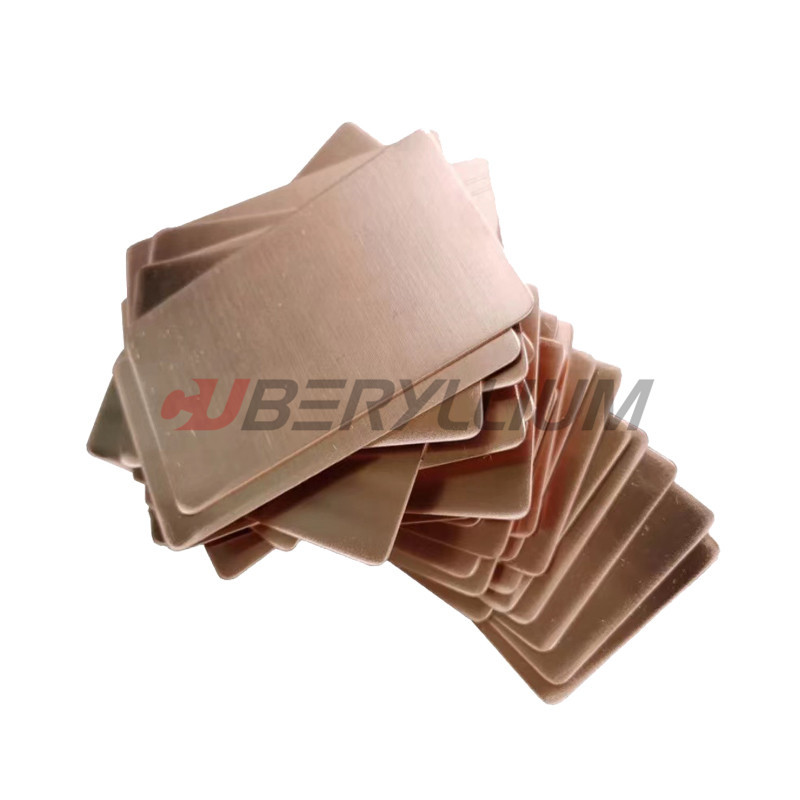

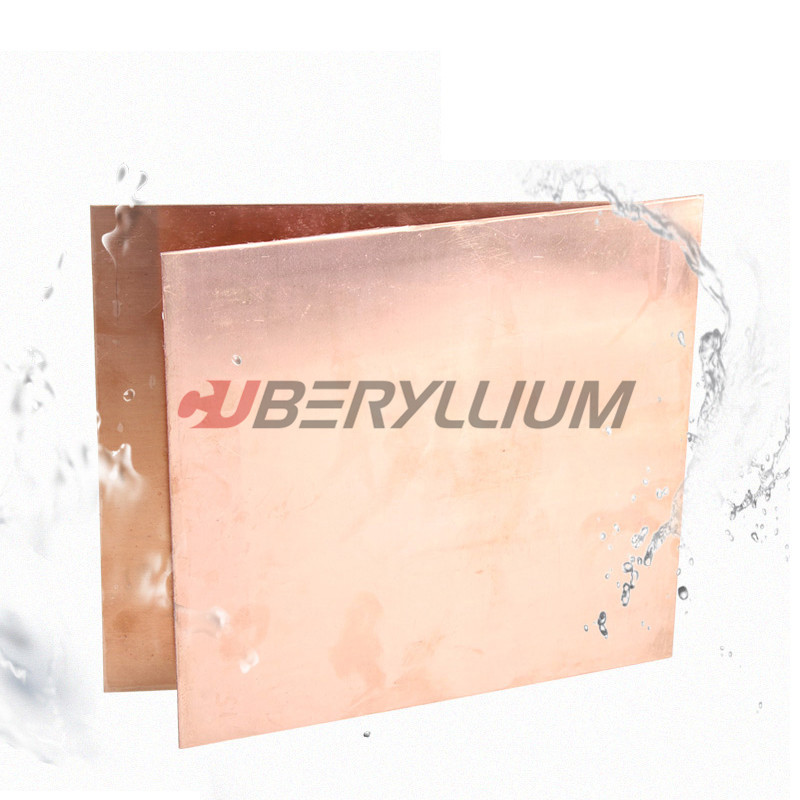

DIN 2.1247 Beryllium Copper Plate Foil 5mmx200mm For Electrical Connectors 0



The most important Technology of CUBERYLLIUM ®

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

Size Available





FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
