ASTM B194 / ASME SB194 Copper Beryllium Sheet For Electro Chemical Industries

Place of Origin China
Certification ISO,SGS
Model Number C17200/ CuBe2/ BeCu/ Qbe2.0
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Copper Beryllium Sheet CUBERYLLIUM® Grade CUBERYLLIUM® 172
Size 6mm X 50mm Standard ASTM B194
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TD02 Application Electro-chemical Industries
High Light

ASTM B194 Copper Beryllium Sheet


Copper Beryllium Sheet Polished


TD02 Copper Beryllium Sheet

Leave a Message
Product Description

ASTM B194 / ASME SB194 Copper Beryllium Sheet Small Copper Sheet For Electro-chemical Industries

Product Normal Description:

Product Name: Copper beryllium sheet

Grade: C17200/ CuBe2/ BeCu/ Qbe2.0

Standard: ASTM B194 / ASME SB194

Product Size: 6mm x 50mm

State: TD02

Typical Application: For electro-chemical industries

Product Brand: CUBERYLLIUM®


Chemical Composition of BeCu Copper Beryllium Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15

Note: Copper plus additions equal 99.5% Minimum.


Typical Physical Properties of BeCu Copper Beryllium Alloy:

Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980


Temper Designations of BeCu Copper Beryllium Plate: A(TB00)
1/4H (TD01)
1/2H (TD02)
H (TD04)
AT (TF00)

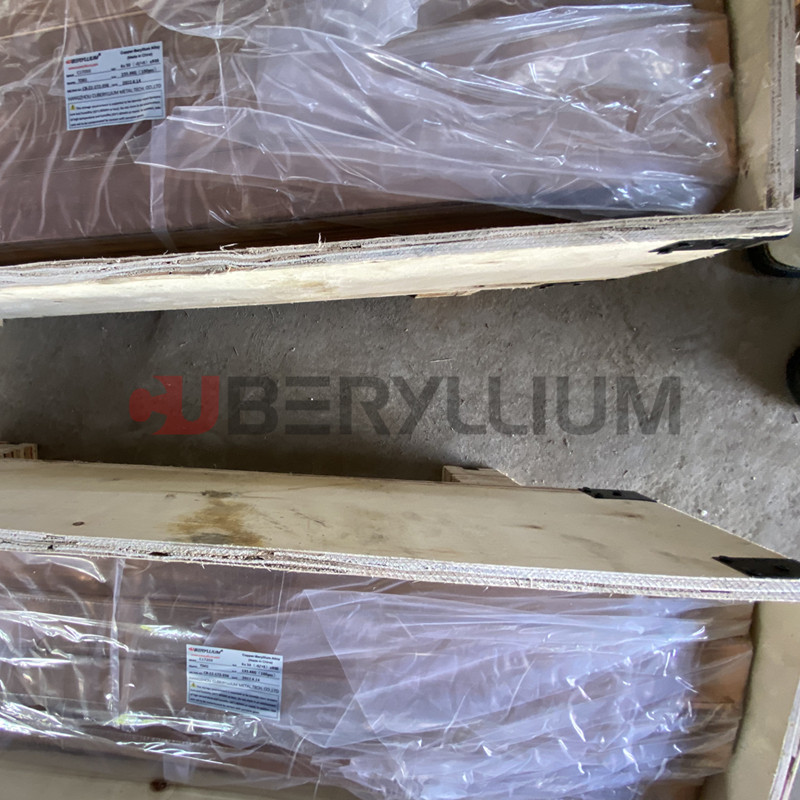

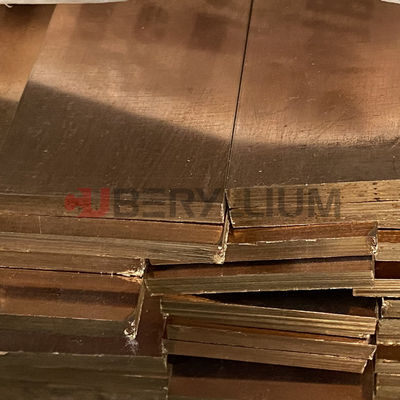

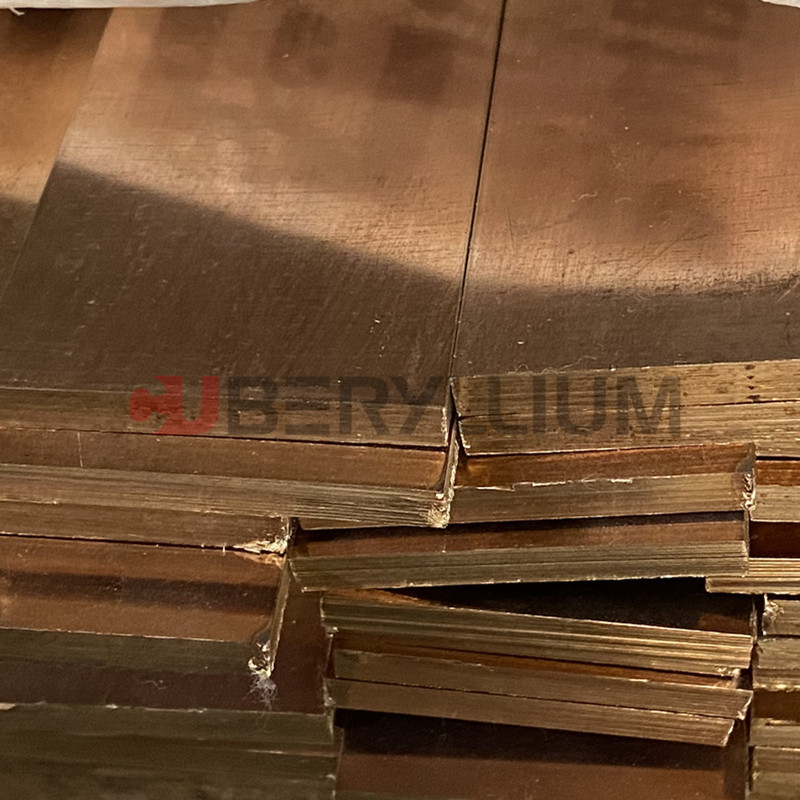

Product Photos:

ASTM B194 / ASME SB194 Copper Beryllium Sheet For Electro Chemical Industries 0


Beryllium Copper Sheets Application:

Beryllium copper sheets are known to deliver exceptional performance and are generally developed for meeting the demands.

We offer a broad range of Be-Cu Sheets for high temperature. These sheets are used in various industries like:

Beryllium copper sheets uses in Modern Architecture

Beryllium copper sheets uses in Oil & Gas industry

Berylliium copper sheets uses in Electronics

Beryllium copper sheets uses in Construction

Beryllium copper sheets uses in Chemical industries

Beryllium copper sheets uses in Power Plants

Beryllium copper sheets uses in General Purpose Applications

Beryllium copper sheets uses in Fabrication Industry

Beryllium copper sheets uses in Fertilizers

Berylliuum copper sheets uses in Plumbing

Beryllium copper sheets uses in Petroleum Industry


The most important Technology of CUBERYLLIUM ®

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
