Alloy CW101C UNS.C17200 Beryllium Copper Foil Sheet With State Hard 1/2 1/4

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | CW101C (UNS.C17200) Beryllium Copper Sheet | CUBERYLLIUM® Grade | CUBERYLLIUM® 172 |
---|---|---|---|
Thickness Range | 1mm-5mm | Max Width | 300mm |
Max Length | 2m | Standard | ASTM B194 |
Heat Treatment | 3 Hr 315°C Or 2 Hr 315°C | Safe Handling | No Special Health Risk. |
Machining Property | Good | Surface | Bright/Polished |
Flatness | Good | State | A(TB00), H(TD04), AT(TF00), HT(TH04) |
Application | For Electrical Connectors | ||
High Light | Alloy CW101C beryllium copper foil,UNS.C17200 beryllium copper foil,beryllium copper coil |
High Strength Alloy CW101C (UNS.C17200) Beryllium Copper Sheet With State Hard
Product Normal Description:
Product Name: Beryllium copper sheet
Grade: CW101C (UNS.C17200)
Standard: ASTM B194
Product Size: Thickness 1mm-5mm; Max width: 300mm; Max length: 2m; or custom diameter
State: A(TB00), H(TD04), AT(TF00), HT(TH04)
Typical Application: For electrical connectors
Product Brand: CUBERYLLIUM®
C17200 Copper Sheet:
CW101C/CuBe2/C17200/DIN 2.1247 Beryllium Copper
C17200 is manufactured to provide a combination of high strength and hardness properties coupled with superior thermal properties. This range of properties makes C17200 alloy the premier material for copper alloy molds and a wide range of other applications from oil and gas to aerospace.
Chemical Composition of CW101C (UNS.C17200) Beryllium Copper Alloy:
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Application:
- Nozzles and needles for hot runner systems
- Inserts in plastic blow moulding and plastic injection moulding
- Needles and nozzles for hot canal systems
- Packing bearings rings in extreme high pressure hydraulics
- Stud holders for stud welding equipment
- High strength, non-magnetic, non-sparking parts, sleeves, bushings, bearings for offshore, onshore, airplanes, precision instruments and medical applications moulding.
Typical Physical Properties of CW101C (UNS.C17200) Beryllium Copper Alloy:
Density (g/cm3): | 8.36 |
Density before age hardening (g/cm3): | 8.25 |
Elastic Modulus (kg/mm2 (103)): | 13.4 |
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
Melting Range (°C): | 870-980 |
Temper Designations of CW101C (UNS.C17200) Beryllium Copper Sheet:
Mechanical and Electrical Properties of C17200 Sheet/Plate | |||||||
CUBERYLLIUM | ASTM | Heat Treatment |
Thickness (mm) |
Tensile Strength (Mpa) |
Elongation Percent |
HARDNESS Rockwell B or C Scale |
Electrical Conductivity (% IACS) |
Designation | Designation | ||||||
A | TB00 | All Size | 400~580 | 20~60 | B45-85 | 15~19 | |
H | TD04 | <10 | 600~880 | 8~20 | B91-103 | 15~19 | |
10~25 | 600~850 | 8~20 | B90-102 | 15 ~ 19 | |||
25~50 | 580~820 | 8~20 | B88-102 | 15 ~19 | |||
>50 | 580~820 | 8~20 | B88-102 | 15 ~19 | |||
AT | TF00 | 3 hr 315℃ |
All Size | 1120~1358 | 3~10 | C36-41 | 22 ~ 28 |
HT | TH04 | 2 hr 315℃ | <10 | 1200~1450 | 1~5 | C38-45 | 22 ~ 28 |
10~25 | 1200~1500 | 1~5 | C38-44 | 22 ~ 28 | |||
25~50 | 1200~1450 | 2~5 | C37-43 | 22 ~ 28 | |||
>50 | 1100~1350 | 2~5 | C36-42 | 22 ~ 28 |

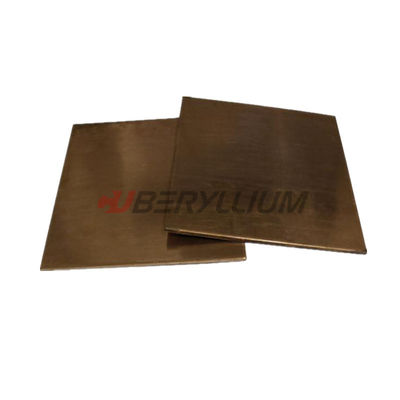

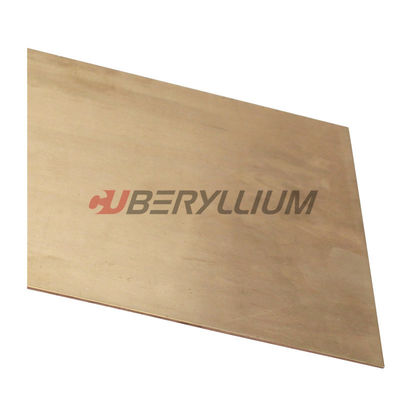

Product Photos:
The most important Technology of CUBERYLLIUM ®
A: Heat treatment
Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.
B: Solution Annealing
For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.
C: Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
