C17200 Plate 140x45x1810mm Standard ASTM B194 High Strength

Place of Origin China
Certification ISO,SGS
Model Number CuBe2-UNS.C17200 (CDA 172)
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Beryllium Copper Alloy Plate CUBERYLLIUM® Grade CUBERYLLIUM® 172
Size(mm) 140*45*1810 Standard ASTM B194
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TF00 Application For Oil Process Platform
High Light

C17200 Plate 140x45x1810mm


High Strength C17200 Plate


Oil Process Platform C17200 Plate

Leave a Message
Product Description

C17200 Plate 140*45*1810mm As Per Standard ASTM B194 With High Strength


About Standard ASTM B194:

ASTM or American Society for Testing and Materials is an international standard developing an organisation. It develops and designs various standards which are useful and beneficial for multiple industrial applications. To improve performance and to get satisfying output in manufacturing, this organisation defines some standards. ASTM B194 is one of the standards which specifies the requirements of Copper-Beryllium alloy Plate, Sheet, Strip, And Rolled Bar.


Chemical Composition of C17200 CuBe2 Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Be: 1.8-2.0

Co+Ni: 0.2 Min

Ni+ Co+ Fe: 0.6 Max

Si: 0.20 Max

Al: 0.20 Max

Cu: Balance

Note: Copper plus additions equal 99.5% Minimum.


Typical Physical Properties of C17200 CuBe2 Alloy:

Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980


Temper Designations of C17200 CuBe2 Plate: A(TB00)
1/4H (TD01)
1/2H (TD02)
H (TD04)
AT (TF00)


Our Advantages:

1, Sample order could be acceptable;

We could provide the sample as free if we have the required size in the stock, but the fligth cost should be paid by customer.

2, On-time delivery and reasonable rates are our main highlighted benefits.

Along with the ready stock, we are here to serve for urgent requirements.

3, Good quality with advance production process

The Biggest Coil weight could be reach 1200kg/Coil

We are the only one who melting by Vacuum semi-Continuous Furnace.

Surface further polishing for top clients.



Applications of C17200 CuBe2 Alloy:

Electrical Switch / Relay Blades Fuse Clips Switch Parts
Relay Parts Connectors Spring Connectors
Current-Carrying Contact Bridges Belleville Washers
Navigational Instruments Clips
Washers Fasteners Lock Washers
Retaining Rings Roll Pins Screws
Pumps Springs Electrochemical
Shafts Non-Sparking Safety Tools Flexible Metal Hose
Housings for Instruments Bearings Bushings
Valve Seats Valve Stems Diaphragms
Springs Welding Equipment Rolling Mill Parts
Spline Shafts Pump Parts Valves
Bourdon Tubes Wear Plates on Heavy Equipment Bellows

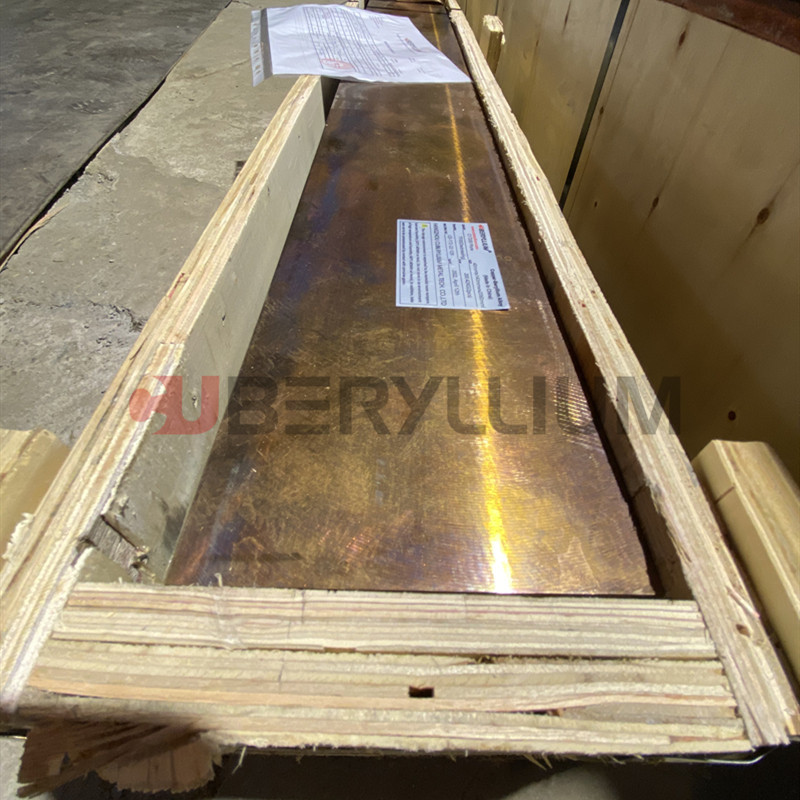

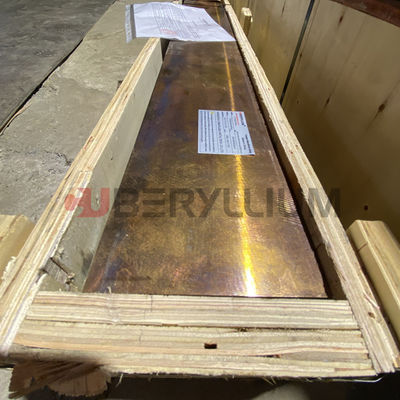

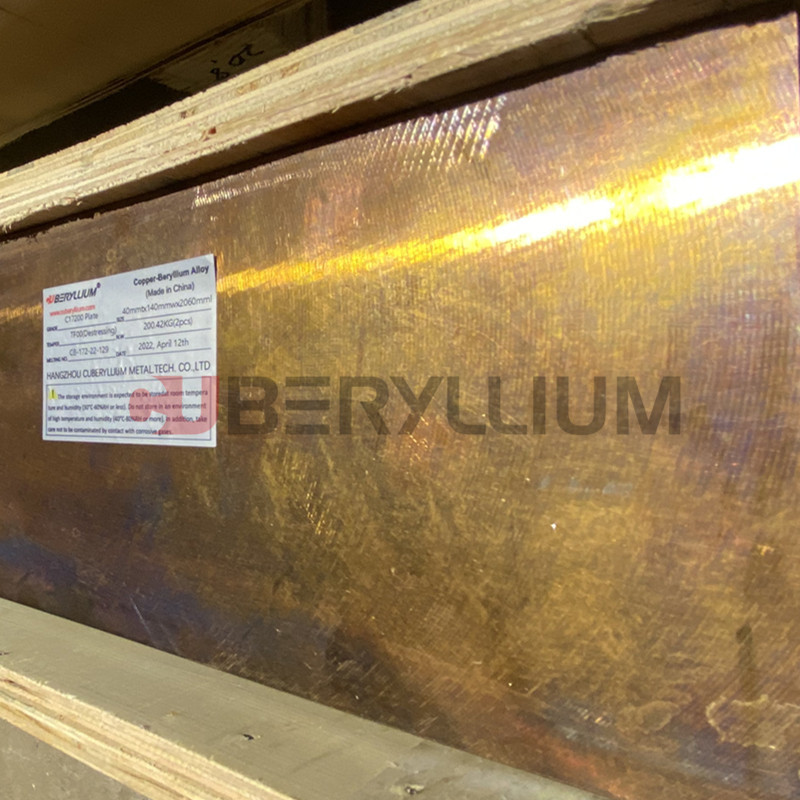

Product Photos:

C17200 Plate 140x45x1810mm Standard ASTM B194 High Strength 0


The most important Technology of CUBERYLLIUM ®

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
