Alloy Beryllium Copper Sheets 25 UNS C17200 With Thickness 2mm

  • Alloy Beryllium Copper Sheets 25 UNS C17200 With Thickness 2mm
  • Alloy Beryllium Copper Sheets 25 UNS C17200 With Thickness 2mm
  • Alloy Beryllium Copper Sheets 25 UNS C17200 With Thickness 2mm
  • Alloy Beryllium Copper Sheets 25 UNS C17200 With Thickness 2mm
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number Alloy 25 UNS C17200
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Sheets In Alloy 25 UNS C17200 CUBERYLLIUM® Grade CUBERYLLIUM® 172
Thickness Customized Standard ASTM Standard
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TF00 Or TB00 Application For Industry Application
High Light

Alloy Beryllium Copper Sheets

,

UNS C17200 Beryllium Copper Sheets

,

2mm Beryllium Copper Sheets
Leave a Message
Product Description

Beryllium Copper Sheets In Alloy 25 UNS C17200 With Thickness 2mm

Usage/Application Industrial
Alloy With Alloy
Pack Type Sheet, Plate, Square Plate
Grade C17200
Storage Temperature 0-25 degree C
Plate Size 2mm thickness
Cu Content Rem.
Customisation Customised



Copper Beryllium is the highest strength copper alloy and is specified when the mechanical strength is the limiting design feature for a copper alloy. It is a heat treatable copper alloy having the unusual combination of very high hardness and strength and lower electrical conductivity than AWS J1.3/ RWMA Class 3 materials.



Beryllium copper plates can be made available by us in both hot rolled/cold rolled construction finish choices. Our Beryllium Copper Plate are manufactured using excellent quality material at our reliable vendor’s end by the use of latest technology. Some of its features include: High performance based.



Introduction Beryllium Copper Alloy 25 UNS C17200:

  • Other designations of C17200 alloy: AWS J1.3, ASTM B196, AMS 4533, SAE J461, CuBe2.1247, Alloy 25, RWMA Class 4
  • Chemical Composition of C17200 alloy: Be: 1.8-2.0, Ni+Co: 0.02 Min., Ni+Co+Fe: 0.06 Max., Cu: Balance
  • End product form of C17200 alloy: Sheets, Plates, Strips, Rods, Bars, Tubes, Wires and other processing products.

Application of Beryllium Copper Alloy 25 UNS C17200:

Landing Gear Bushings
Directional Drilling Equipment
Bearings
Bushings
Flex Shafts
Pressure Housings



Physical Properties of Beryllium Copper Alloy 25 UNS C17200:

      Yield Strength   108 cycles Hardness
ksi
Temper Heat Treatment Tensile Strength ksi 0.2% offset ksi Elongation % Fatigue Strength Rockwell B or C Electrical Conductivity % IACS
A Dead Soft (TB00) -- 60-76 28-36 35-65 30-35 B45-78 15-19
A Planished (TB00) -- 60-78 30-55 35-60 30-35 B45-78 15-19
1/4 H (TD01) -- 75-88 60-80 20-45 31-36 B68-90 15-19
1/2 H(TD02) -- 85-100 75-95 12-30 32-38 B88-96 15-19
H (TD04) -- 100-120 90-115 2-18 35-39 B96-102 15-19
AT (TF00) 3 hr. at 600 °F 165-195 140-175 3-15 40-45 C36-42 22-28

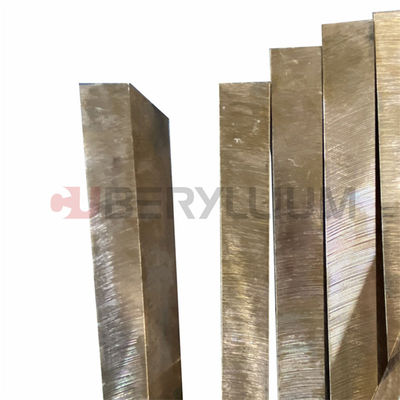

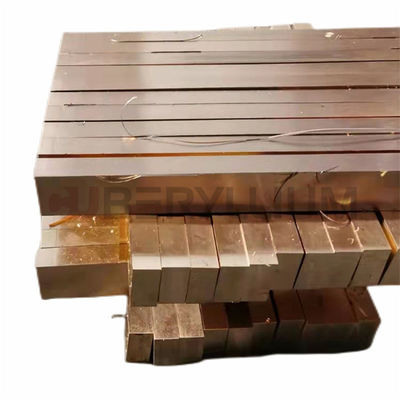

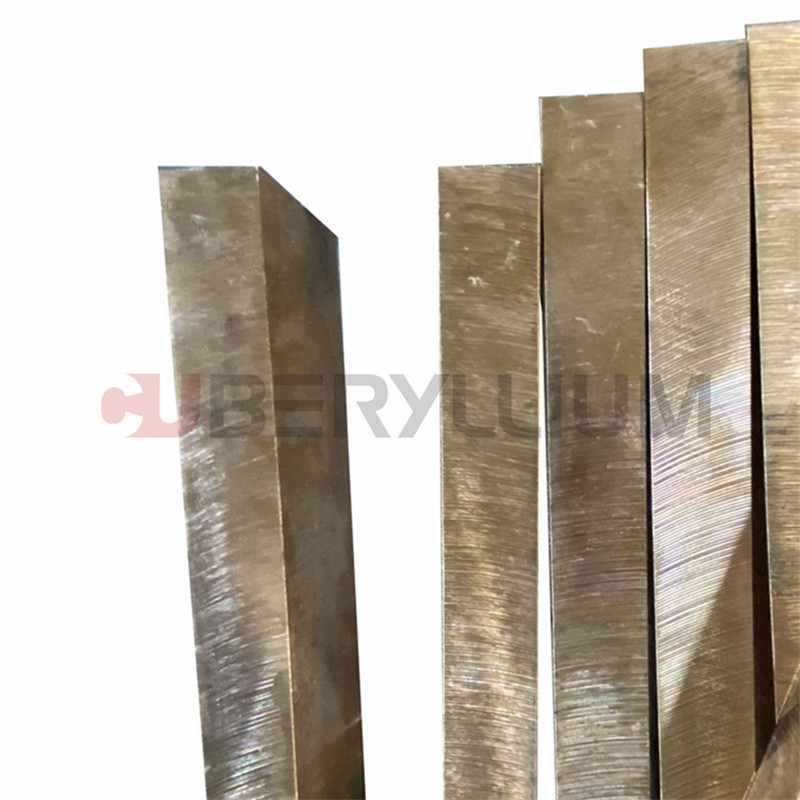

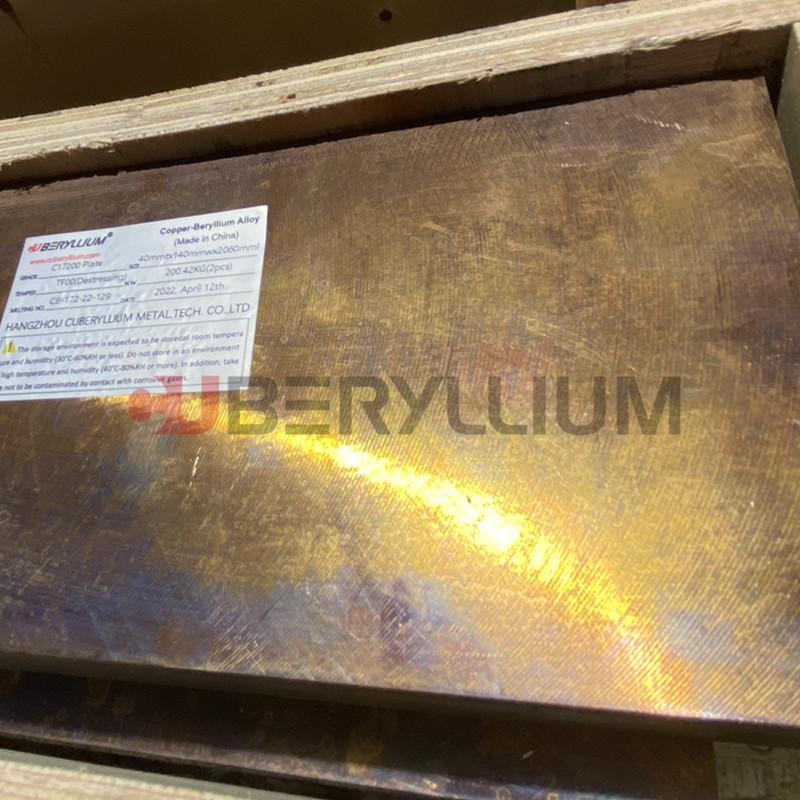

Product Photos:

Alloy Beryllium Copper Sheets 25 UNS C17200 With Thickness 2mm 0



More Products Cuberyllium could provide:

More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:

C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)



Our Advantages:
Superior quality
Proactive customer service
Innovative solutions
Extremely fast turn around
Technical Support
Together we can achieve substantial amount of productivity for our applications, we can also develop and arrange mechanical properties according to specific requirements.
