TB00 CDA172 ASTM Beryllium Copper C172 Sheet Plate High Strength Good Conductivity

CDA172(ASTM C17200) Beryllium Bronze Plate With High Strength And Good Conductivity

Product Normal Description:

Product Name: Beryllum bronze plate

Grade: CDA172(ASTM C17200)

Standard: ASTM B194

Product Size: Thickness 1mm-5mm; Max width: 300mm; Max length: 2m; or custom diameter

State: A(TB00), H(TD04), AT(TF00), HT(TH04)

Typical Application: For electrical application

Product Brand: CUBERYLLIUM®

Product Information of C17200 Beryllium Copper Alloy:

C17200 Beryllium Copper, the full range of beryllium copper is called " the king of non-farrous metal elasticity".

It is used for all kinds of micro-motor brushes, switches, relays, connectors, temperature with the increasing requirements for the reliability and service life of the springs and various springs of the controller, the demand for beryllium copper will also increse.

C17200 copper's ultimate tensile and Rockwell hardness properties in a peak aged condition are in the 200 ksi range and RC 45 respectively (electrical conductivity 22% IACS minimum).

Normal Name: C17200 Beryllium Copper Alloy

Other Names: Alloy 25 Beryllium Copper Alloy, C172 beryllium copper alloy, DIN 2.1247 Beryllium Copper Alloy, CDA 172 Beryllium Copper Alloy, CuBe2 Beryllium Copper Alloy, etc.

Chemical Composition of CDA172(ASTM C17200) Beryllium Bronze Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.

Typical Physical Properties of CDA172(ASTM C17200) Beryllium Bronze Alloy:

Temper Designations of CDA172(ASTM C17200) Beryllium Bronze Plate:

Applications of CDA172(ASTM C17200) Beryllium Bronze Alloy:

Applications for beryllium copper C17200 include electrical components and connectors, offshore and marine, powertrains, robotic welding and oifield tooling. The non-magnetic nature of the alloy makes it ideal for use on down-hole wireline tools.

•Electrical/electronic connectors

•Current-carrying springs

•Precision screw machined parts

•Welding electrodes

•Bearings

•Plastic molds

•Corrosion resistant components

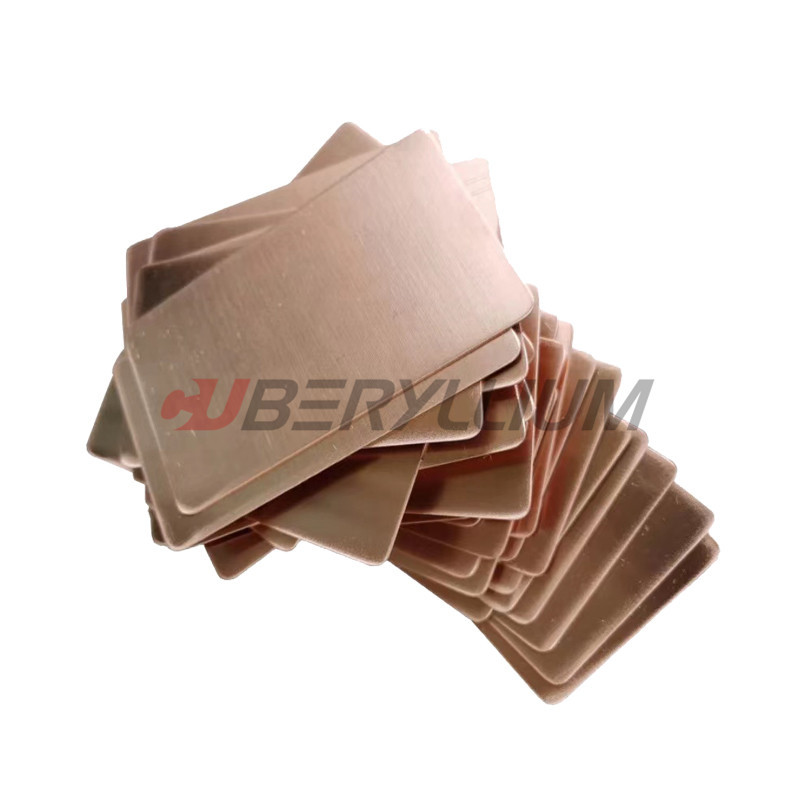

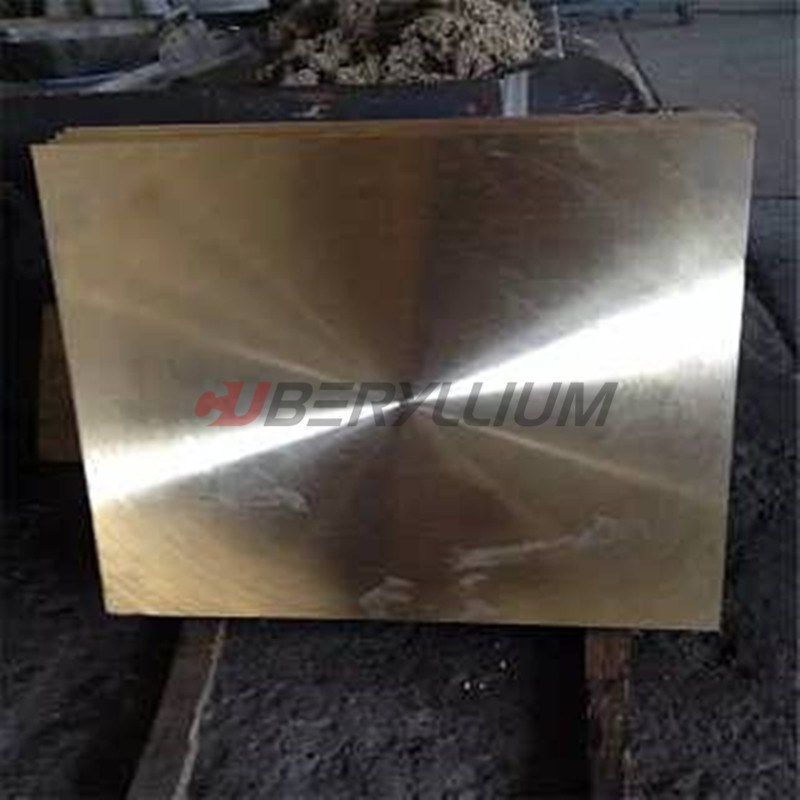

Product Photos:

The most important Technology of CUBERYLLIUM ®

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
