CDA 172 Beryllium Copper Plate 6x25x500mm TD02 Temper For Oil Process Platform

  • CDA 172 Beryllium Copper Plate 6x25x500mm TD02 Temper For Oil Process Platform
  • CDA 172 Beryllium Copper Plate 6x25x500mm TD02 Temper For Oil Process Platform
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CDA172
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Plate CUBERYLLIUM® Grade CUBERYLLIUM® 172
Size 6x25x500mm Standard ASTM B194
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TD02 Application For Oil Process Platform
High Light

CDA 172 Beryllium Copper Plate

,

TD02 Beryllium Copper Plate

,

Oil Process Platform Beryllium Copper Sheet
Leave a Message
Product Description

CDA172 Beryllium Copper Plate 6x25x500mm TD02 Temper Used For Oil Process Platform

Product Normal Description:

Product Name: Beryllium copper plate

Standard: ASTM B194

Product Size: 6x25x500mm

State: TD02

Typical Application: For oil process platform

Product Brand: CUBERYLLIUM®



Beryllium Copper Alloy Introduction:

One of the highest strength copper based alloys available on the market today is beryllium copper, also known as spring copper or beryllium bronze. The commercial grades of beryllium copper contain 0.4 to 2.0 percent beryllium. The small ratio of beryllium to copper creates a family of high copper alloys with strength as high as alloy steel. The first of the two families, C17200 and C17300, includes high strength with moderate conductivity, while the second family, C17500 and C17510, offers high conductivity with moderate strength. The principle characteristics of these alloys are their excellent response to precipitation-hardening treatments, excellent thermal conductivity, and resistance to stress relaxation.



Application of Beryllium Copper Alloy:

Beryllium copper and its variety of alloys are utilized in very specific and often tailor-made applications such as oilfield tools, aerospace landing gears, robotic welding, and mold making applications. Additional non-magnetic properties make it ideal for down-hole wire line tools. These specific applications are the reason this copper is known as spring copper and other various names.



Chemical Composition of CDA172 Beryllium Copper Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of CDA172 Beryllium Copper Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of CDA172 Beryllium Copper Plate:

Mechanical and Electrical Properties of C17200 Sheet/Plate
CUBERYLLIUM ASTM Heat Treatment

Thickness

(mm)

Tensile Strength

(Mpa)

 Elongation Percent

HARDNESS

Rockwell B or C Scale

 Electrical Conductivity
(% IACS)
Designation Designation
A TB00   All Size 400~580 20~60 B45-85 15～19
H TD04 ＜10 600~880 8~20 B91-103 15～19
10~25 600~850 8~20 B90-102 15 ~ 19
25~50 580~820 8~20 B88-102 15 ~19
＞50 580~820 8~20 B88-102 15 ~19
AT TF00
3 hr 315℃
 		 All Size 1120~1358 3~10 C36-41 22 ~ 28
HT TH04 2 hr 315℃ ＜10 1200~1450 1~5 C38-45 22 ~ 28
10~25 1200~1500 1~5 C38-44 22 ~ 28
25~50 1200~1450 2~5 C37-43 22 ~ 28
＞50 1100~1350 2~5 C36-42 22 ~ 28

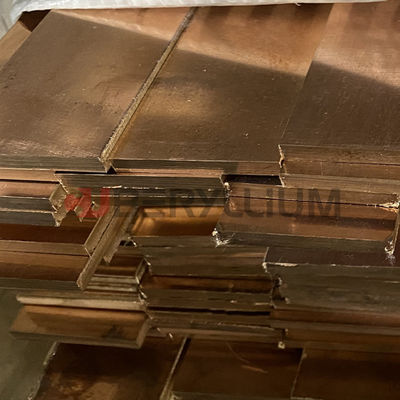

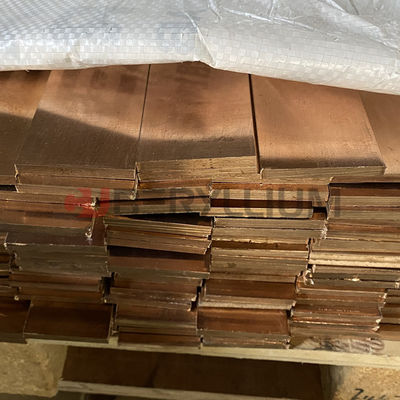

Product Photos:

CDA 172 Beryllium Copper Plate 6x25x500mm TD02 Temper For Oil Process Platform 0



Beryllium Copper Shim Sheets, Standard Size Beryllium Copper Alloy Sheets, Beryllium Copper Plate, ASTM B194 / ASME SB194 Copper Beryllium Sheet, Beryllium Copper Sheet Suppliers, BeCu Sheets, Beryllium Copper Alloy Sheets, CuBe2 / CuBe Sheet, Beryllium Copper Sheets Manufacturer in China.
