ASTM B194 TD02 CuBe2 C17200 Plate 40mm X 140mm X 1000mm Thermal Conductivity

  • ASTM B194 TD02 CuBe2 C17200 Plate 40mm X 140mm X 1000mm Thermal Conductivity
  • ASTM B194 TD02 CuBe2 C17200 Plate 40mm X 140mm X 1000mm Thermal Conductivity
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number ASTM B194 C17200
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name C17200 TD02 CuBe2 Plate CUBERYLLIUM® Grade CUBERYLLIUM® 172
Length 1000mm Standard ASTM B194
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TD02 Application For Oil Process Platform
High Light

Thermal Conductivity C17200 Plate

,

C17200 Plate ASTM B194

,

TD02 Beryllium Copper Plate
Leave a Message
Product Description

ASTM B194 C17200 TD02 CuBe2 Plate Size 40mm x 140mm x 1000mm With Good Thermal Conductivity



About Standard ASTM B194:

ASTM or American Society for Testing and Materials is an international standard developing an organisation. It develops and designs various standards which are useful and beneficial for multiple industrial applications. To improve performance and to get satisfying output in manufacturing, this organisation defines some standards. ASTM B194 is one of the standards which specifies the requirements of Copper-Beryllium alloy Plate, Sheet, Strip, And Rolled Bar.



Our Advantages:

We ensure long functional life and durable performance of these plates.

Our optimum quality copper beryllium plates are accurate in dimensions and offers excellent support in any applications.

Most exceptional quality and consistency make us able to deliver perfectly matching products to our clients.



We not only provide beryllium copper plates, we also manufactures copper beryllium strips to fit various indusrial needs.

We are delivering these strips along with the features like good tensile strength, good thermal conductivity, good conductivity, and corrosion resistance.

Our high-quality copper strips are suitable in many industries like automotive, electronics, and electrical industries.

The are also applicable in home applicances such as switches, relays, thermostats, and connectors.

CUBERYLLIUM ® provide beryllium copper plates, berylllium copper strips,



Chemical Composition of C17200 CuBe2 Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Be: 1.8-2.0

Co+Ni: 0.2 Min

Ni+ Co+ Fe: 0.6 Max

Si: 0.20 Max

Al: 0.20 Max

Cu: Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of C17200 CuBe2 Alloy:

Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980



Temper Designations of C17200 CuBe2 Plate: A(TB00)
1/4H (TD01)
1/2H (TD02)
H (TD04)
AT (TF00)

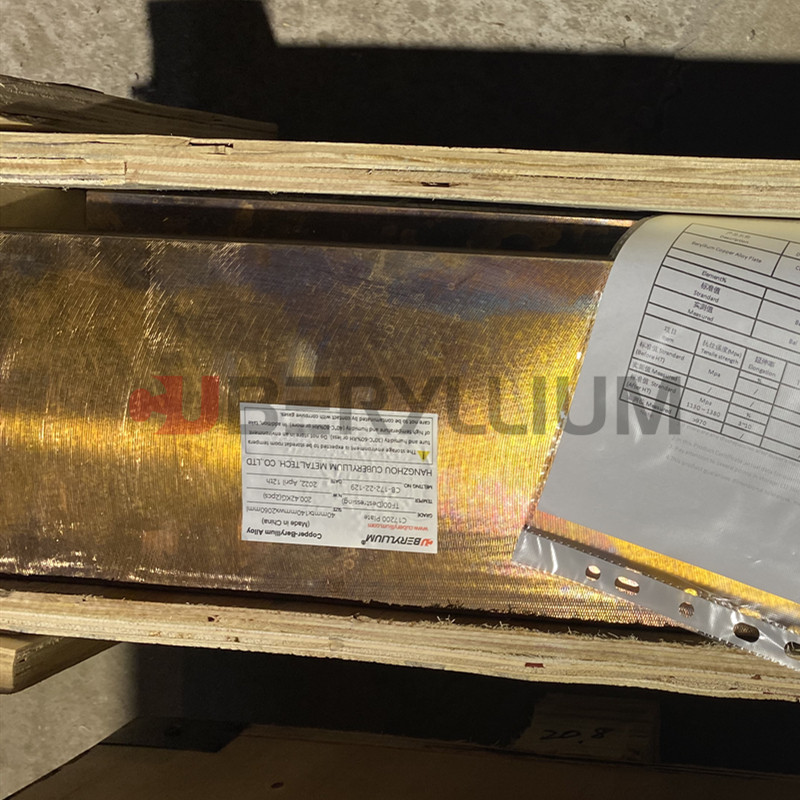

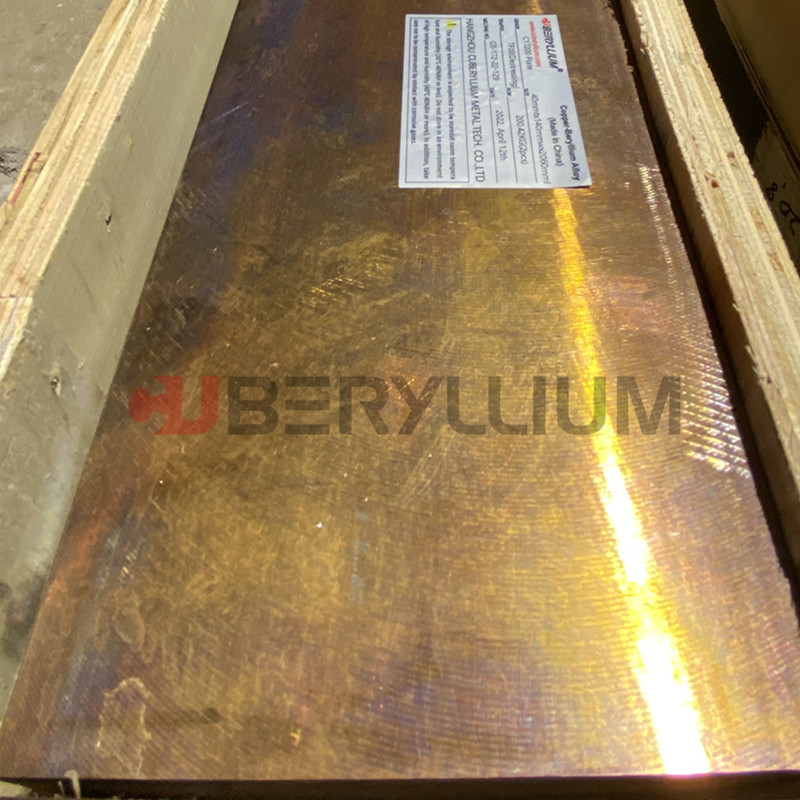

Product Photos:

ASTM B194 TD02 CuBe2 C17200 Plate 40mm X 140mm X 1000mm Thermal Conductivity 0



FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
