C17200 Beryllium Copper Alloy 25 Plate 2m Length Used In Chemical Industries

C17200 Beryllium Copper Alloy 25 Platre With 2m Length Used In Chemical Industries

Product Normal Description:

Product Name: Beryllium copper alloy plate

Grade: C17200/ Alloy 25

Standard: ASTM B194 / ASME SB194

Product Length: 2m

State: TF00

Typical Application: For chemical industries

Product Brand: CUBERYLLIUM®

About Standard ASTM B194:

ASTM or American Society for Testing and Materials is an international standard developing an organisation. It develops and designs various standards which are useful and beneficial for multiple industrial applications. To improve performance and to get satisfying output in manufacturing, this organisation defines some standards. ASTM B194 is one of the standards which specifies the requirements of Copper-Beryllium alloy Plate, Sheet, Strip, And Rolled Bar.

We are producing and supply Copper-Beryllium Plate, Sheets, Strips, and Bars. By considering requirements and demands of our clients, we are manufacturing perfectly suitable products. We aim to deliver the highest quality Copper-Beryllium Plate, Sheets, Strips, and Bars within decided time and at reasonable rates. We are fabricating Copper-Beryllium Plates in multiple size and dimensions as per the requirements of clients. Our Copper-Beryllium Plates has High strength, hardness, and elasticity which offers superior resistance to fatigue and abrasion. These plates are applicable in relays, connectors, sensors, temperature control switch, and thermostat spring. We are producing a wide range of Copper-Beryllium Sheets by using latest technologies and using the finest quality components.

Chemical Composition of C17200 Beryllium Copper Alloy 25:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Be: 1.8-2.0

Co+Ni: 0.2 Min

Ni+ Co+ Fe: 0.6 Max

Si: 0.20 Max

Al: 0.20 Max

Cu: Balance

Note: Copper plus additions equal 99.5% Minimum.

Typical Physical Properties of C17200 Beryllium Copper Alloy 25:

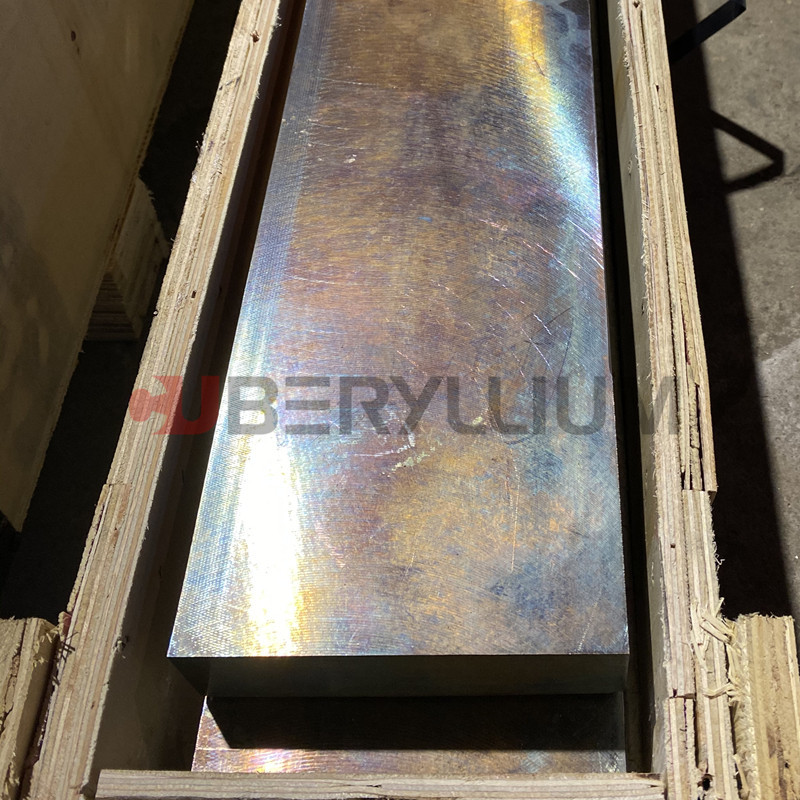

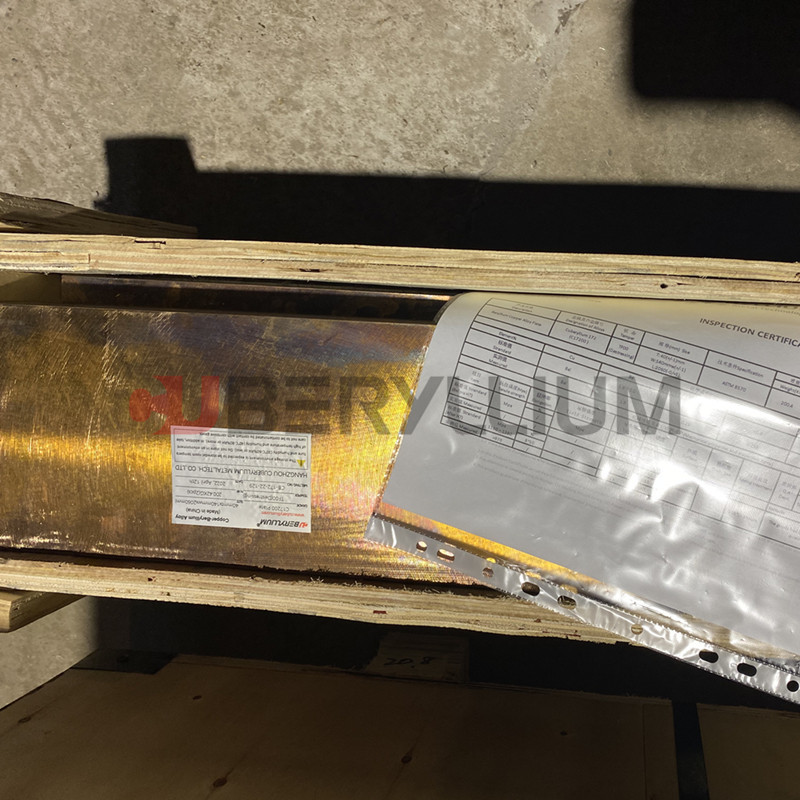

Product Photos:

The most important Technology of CUBERYLLIUM ®

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

Size Available
