Uns C17200 Solid Beryllium Copper Plate Size 505 Mm X 505 Mm X 28 Mm

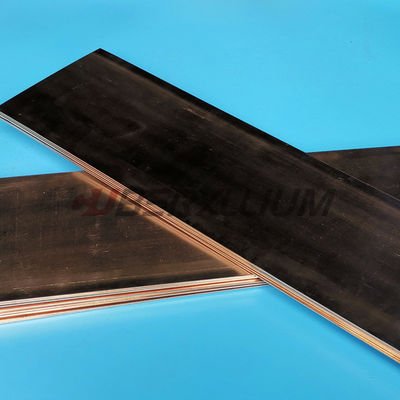

  • Uns C17200 Solid Beryllium Copper Plate Size 505 Mm X 505 Mm X 28 Mm

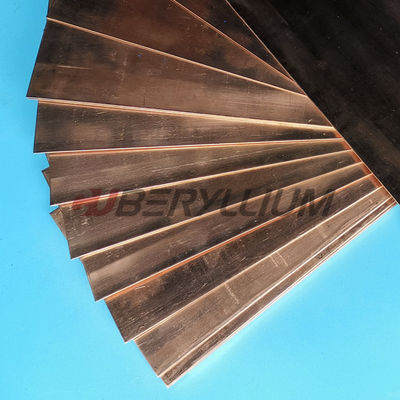

  • Uns C17200 Solid Beryllium Copper Plate Size 505 Mm X 505 Mm X 28 Mm
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number UNS C17200
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name UNS C17200 BERYLLIUM COPPER PLATE CUBERYLLIUM® Grade CUBERYLLIUM® 172
Size 505 MM X 505 MM X 28 MM Standard ASTM B194
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TF00 Application For Oil Process Platform
High Light

Uns C17200 Beryllium Copper Plate

,

Solid Beryllium Copper Plate

,

Uns C17200 Beryllium Copper Sheet
Leave a Message
Product Description

UNS C17200 BERYLLIUM COPPER PLATE SIZE 505 MM X 505 MM X 28 MM SOLID COPPER SHEET

Product Normal Description:

Product Name: Berylliium copper plate

Standard: UNS C17200

Product Size: 505mm x 505mm x 28mm

State: TF00

Product Brand: CUBERYLLIUM®



We are supplying Beryllium Copper Plates to various sectors and meeting their expectations. We are serving plates to electrical industries to use in connectors, fuse clips contact bridges, Electrical Switch and relay blades, spring connectors, switch parts, navigational instruments, relay parts, washers etc. We are also providing plates to different fasteners like lock washers, retaining rings, Washers, roll pins, screws, and bolts. Our Beryllium Copper plates are also provided to use in welding equipment, Pumps, springs, electrochemical, shafts, bushings, non-sparking safety tools, flexible metal hose, housings for instruments, bearings, valve seats, valve stems, diaphragms, springs, rolling mill parts, spline shafts, pump parts, and bourdon tubes.



Chemical Composition of UNS C17200 BERYLLIUM COPPER ALLOY:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15

Note: Copper plus additions equal 99.5% Minimum.



Standard Specificaiton For UNS C17200 BERYLLIUM COPPER PLATE:

Standards ASTM B194
Grade Alloy 25 (C17200), CDA 172
Specifications AMS 4530, AMS 4533, AMS 4534, AMS 4650, AMS 4651, SAE J461, SAE J463, JIS H 3130, RWMA Class 4
Temper A(TB00),H(TD04),AT(TF00),HT(TH04)



Typical Physical Properties of UNS C17200 BERYLLIUM COPPER ALLOY:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of UNS C17200 BERYLLIUM COPPER PLATE:

Mechanical and Electrical Properties of C17200 Sheet/Plate
CUBERYLLIUM ASTM Heat Treatment

Thickness

(mm)

Tensile Strength

(Mpa)

 Elongation Percent

HARDNESS

Rockwell B or C Scale

 Electrical Conductivity
(% IACS)
Designation Designation
A TB00   All Size 400~580 20~60 B45-85 15～19
H TD04 ＜10 600~880 8~20 B91-103 15～19
10~25 600~850 8~20 B90-102 15 ~ 19
25~50 580~820 8~20 B88-102 15 ~19
＞50 580~820 8~20 B88-102 15 ~19
AT TF00
3 hr 315℃
 		 All Size 1120~1358 3~10 C36-41 22 ~ 28
HT TH04 2 hr 315℃ ＜10 1200~1450 1~5 C38-45 22 ~ 28
10~25 1200~1500 1~5 C38-44 22 ~ 28
25~50 1200~1450 2~5 C37-43 22 ~ 28
＞50 1100~1350 2~5 C36-42 22 ~ 28



Product Photos:

Uns C17200 Solid Beryllium Copper Plate Size 505 Mm X 505 Mm X 28 Mm 0



Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
