ASTM B194 Beryllium Copper C17200 Plate 140mm X 45mm X 1810mm

  • ASTM B194 Beryllium Copper C17200 Plate 140mm X 45mm X 1810mm
  • ASTM B194 Beryllium Copper C17200 Plate 140mm X 45mm X 1810mm
  • ASTM B194 Beryllium Copper C17200 Plate 140mm X 45mm X 1810mm
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name ASTM B194 Beryllium Copper C17200 Plate CUBERYLLIUM® Grade CUBERYLLIUM® 172
Size 140mm X 45mm X 1810mm Standard ASTM B194
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TF00 Application For Oil Process Platform
High Light

Beryllium Copper C17200 Plate

,

ASTM B194 Beryllium Copper Plate

,

C17200 Beryllium Copper Plate
Leave a Message
Product Description

ASTM B194 Beryllium Copper C17200 Plate 140mm x 45mm x 1810mm Large Copper Sheet

Product Normal Description:

Product Name: Beryllum copper C17200 plate

Standard: ASTM B194

Product Size: 140mm x 45mm x 1810mm

State: TF00

Typical Application: For oil process platform

Product Brand: CUBERYLLIUM®



Chemical Composition of ASTM B194 Beryllium Copper C17200:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15

Note: Copper plus additions equal 99.5% Minimum.



ASTM B194 Beryllium Copper C17200 Plate:

UNS C17200 is one of the most generally practised beryllium copper alloys which is notable for the hardness and high strength qualities. The strength and hardness of this metal are similar to steel. Hangzhou Cuberyllium Metal Tech. Co.,Ltd. is manufacturing Beryllium Copper UNS C17200 Plates with various specifications. Our Beryllium Copper plates are having high-grade properties like sturdiness, longevity, high tensile strength, durability, flexibility, versatility, excellent dimensional accuracy, and precise surface finishes. Our sturdy plates are providing more comprehensive protection against crevice and stress corrosion cracking.



Typical Physical Properties of ASTM B194 Beryllium Copper C17200:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of ASTM B194 Beryllium Copper C17200 Plate:

Mechanical and Electrical Properties of C17200 Sheet/Plate
CUBERYLLIUM ASTM Heat Treatment

Thickness

(mm)

Tensile Strength

(Mpa)

 Elongation Percent

HARDNESS

Rockwell B or C Scale

 Electrical Conductivity
(% IACS)
Designation Designation
A TB00   All Size 400~580 20~60 B45-85 15～19
H TD04 ＜10 600~880 8~20 B91-103 15～19
10~25 600~850 8~20 B90-102 15 ~ 19
25~50 580~820 8~20 B88-102 15 ~19
＞50 580~820 8~20 B88-102 15 ~19
AT TF00
3 hr 315℃
 		 All Size 1120~1358 3~10 C36-41 22 ~ 28
HT TH04 2 hr 315℃ ＜10 1200~1450 1~5 C38-45 22 ~ 28
10~25 1200~1500 1~5 C38-44 22 ~ 28
25~50 1200~1450 2~5 C37-43 22 ~ 28
＞50 1100~1350 2~5 C36-42 22 ~ 28

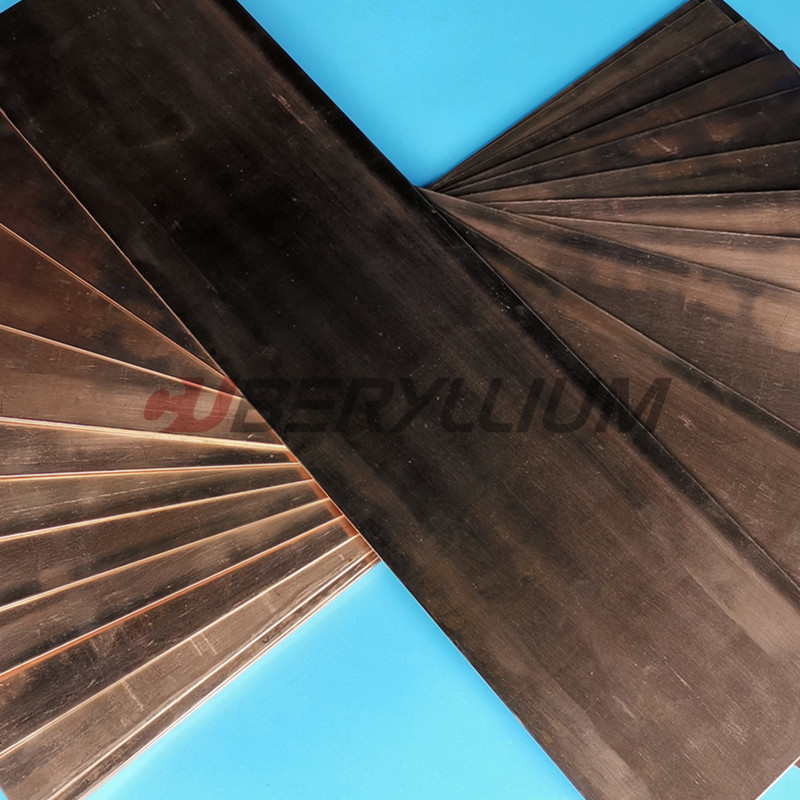

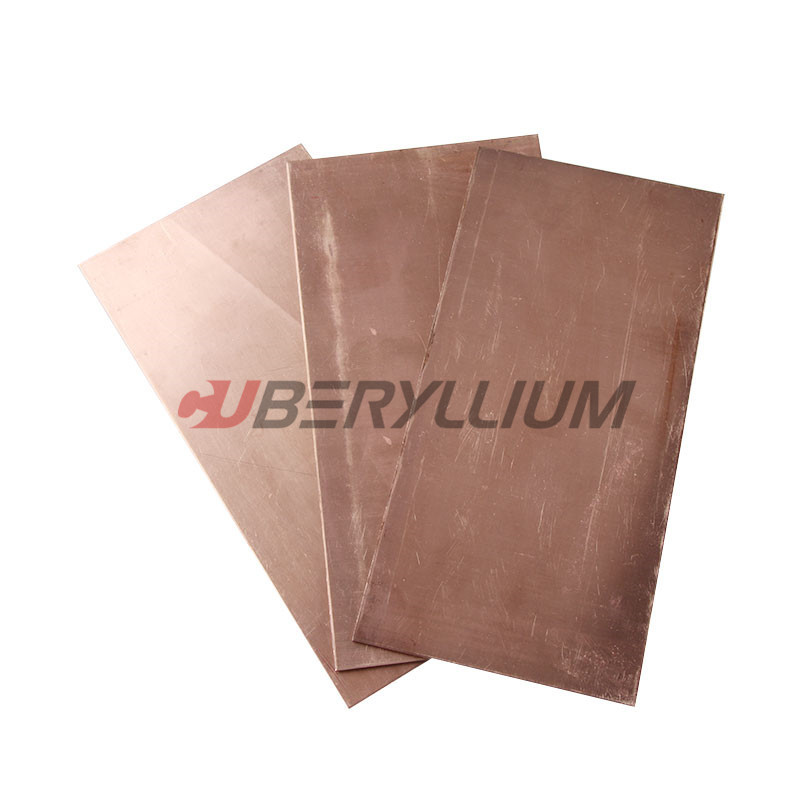

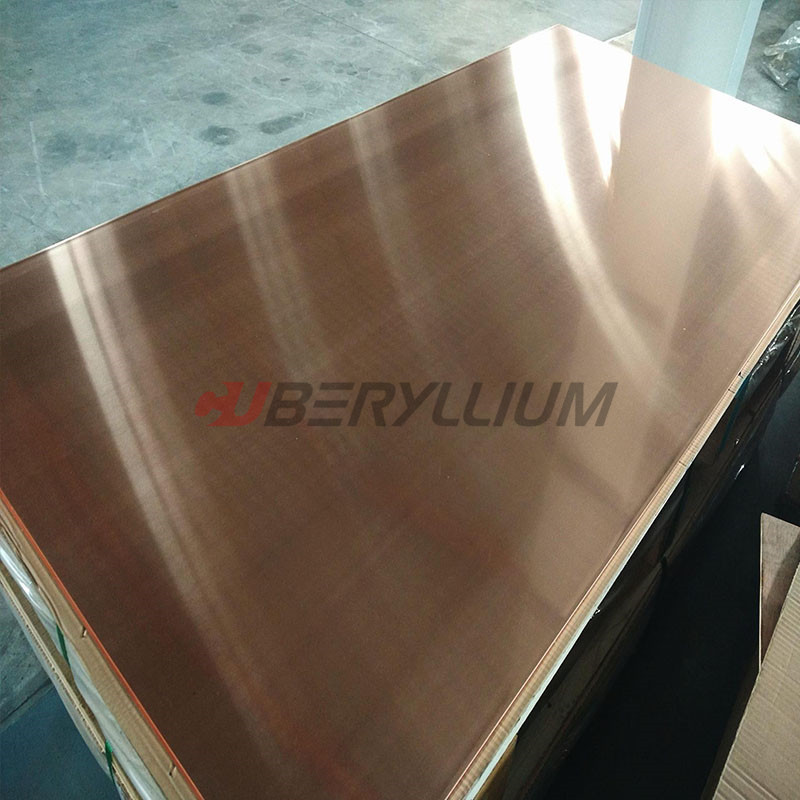

Product Photos:

ASTM B194 Beryllium Copper C17200 Plate 140mm X 45mm X 1810mm 0



Excellent Properties of CuBe2 Copper Alloys:

ASTM B194 Beryllium Copper C17200 Plate 140mm X 45mm X 1810mm 1

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
