Large CuBe2 Beryllium Copper Sheet 6x25x800 TD02 Temper

  • Large CuBe2 Beryllium Copper Sheet 6x25x800 TD02 Temper
  • Large CuBe2 Beryllium Copper Sheet 6x25x800 TD02 Temper
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2
Minimum Order Quantity 50
Price 30-50USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Large Copper Sheet CUBERYLLIUM® Grade CUBERYLLIUM® 172
Dimention(mm) 6x25x800 Standard ASTM B194
Heat Treatment 3 Hr 315°C Or 2 Hr 315°C Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State TD02
Application For Electrical Application
High Light

Bright Beryllium Copper Sheet

,

6x25x800 Beryllium Copper Sheet

,

TD02 Temper Beryllium Copper Sheet
Leave a Message
Product Description

CuBe2 High Copper Alloys Beryllium Large Copper Sheet 6x25x800 TD02 Temper

Product Normal Description:

Product Name Beryllium large copper sheet
Grade CuBe2
End Product Form Sheet/Plate
Standard ASTM B194
State of product TD02
Size(mm):

6x25x800
Application Electrical Industry
Product Brand

CUBERYLLIUM®



Chemical Composition of CuBe2 High Copper Alloys Beryllium Copper Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of CuBe2 High Copper Alloys Beryllium Copper Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of CuBe2 High Copper Alloys Beryllium Copper Plate:

Mechanical and Electrical Properties of C17200 Sheet/Plate
CUBERYLLIUM ASTM Heat Treatment

Thickness

(mm)

Tensile Strength

(Mpa)

 Elongation Percent

HARDNESS

Rockwell B or C Scale

 Electrical Conductivity
(% IACS)
Designation Designation
A TB00   All Size 400~580 20~60 B45-85 15～19
H TD04 ＜10 600~880 8~20 B91-103 15～19
10~25 600~850 8~20 B90-102 15 ~ 19
25~50 580~820 8~20 B88-102 15 ~19
＞50 580~820 8~20 B88-102 15 ~19
AT TF00
3 hr 315℃
 		 All Size 1120~1358 3~10 C36-41 22 ~ 28
HT TH04 2 hr 315℃ ＜10 1200~1450 1~5 C38-45 22 ~ 28
10~25 1200~1500 1~5 C38-44 22 ~ 28
25~50 1200~1450 2~5 C37-43 22 ~ 28
＞50 1100~1350 2~5 C36-42 22 ~ 28



Applications of CuBe2 High Copper Alloys Beryllium Copper Alloy:

ELECTRICAL:
Electrical Switch / Relay Blades Fuse Clips Switch Parts
Relay Parts Connectors Spring Connectors
Current-Carrying Contact Bridges Belleville Washers
Navigational Instruments Clips
FASTENERS:
Washers Fasteners Lock Washers
Retaining Rings Roll Pins Screws
Bolts
INDUSTRIAL:
Pumps Springs Electrochemical
Shafts Non-Sparking Safety Tools Flexible Metal Hose
Housings for Instruments Bearings Bushings
Valve Seats Valve Stems Diaphragms
Springs Welding Equipment Rolling Mill Parts
Spline Shafts Pump Parts Valves
Bourdon Tubes Wear Plates on Heavy Equipment Bellows

Product Photos:

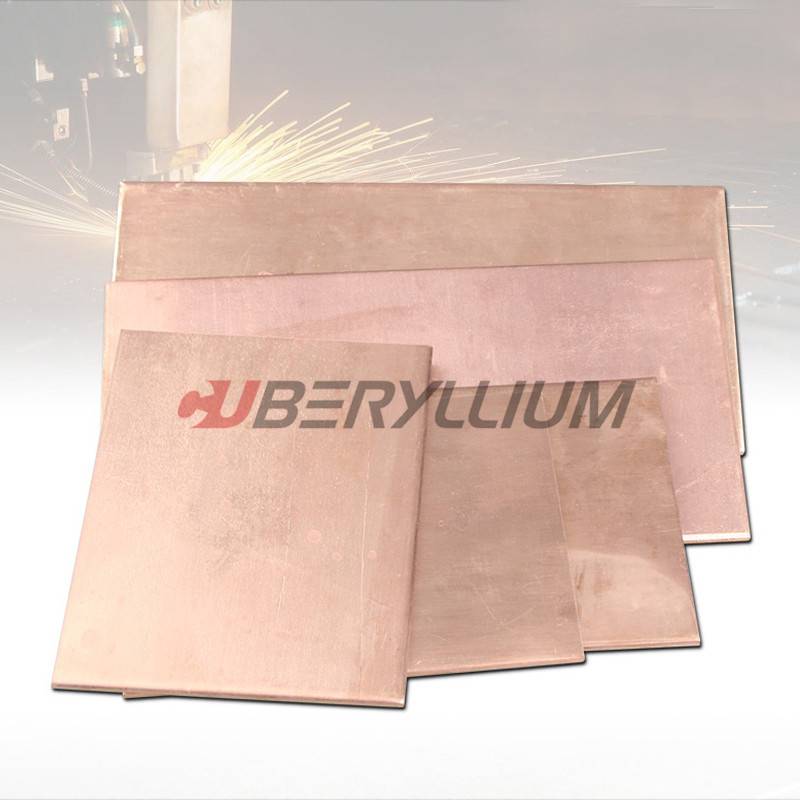

Large CuBe2 Beryllium Copper Sheet 6x25x800 TD02 Temper 0



Excellent Properties of CuBe2 High Copper Alloys Beryllium Copper Alloys:

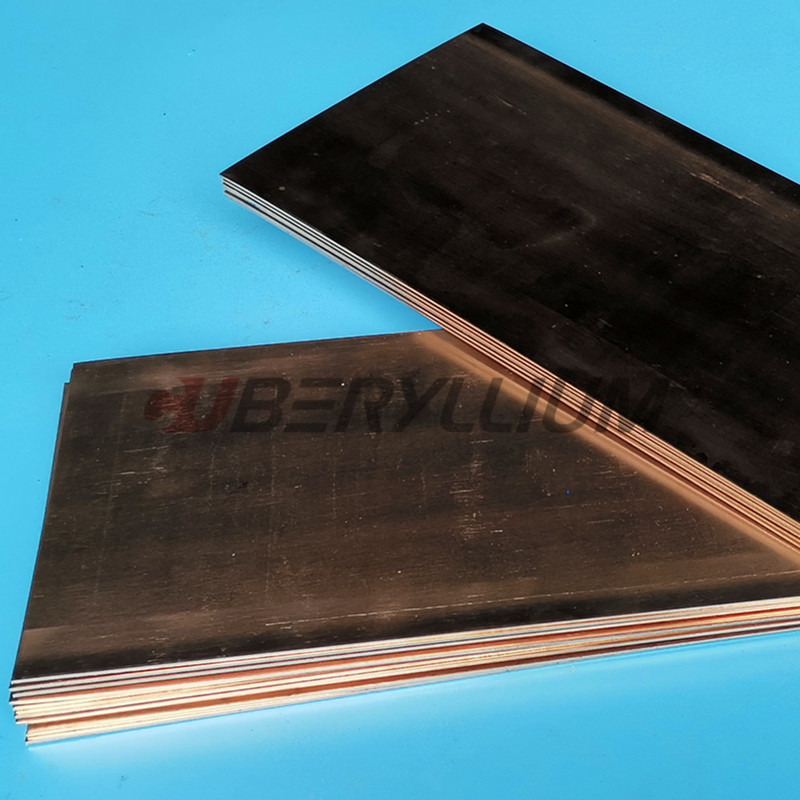

Large CuBe2 Beryllium Copper Sheet 6x25x800 TD02 Temper 1

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
