C17200 ASTM B194 Cuberyllium Copper Plate 6mm X 25mm X 800mm

  • C17200 ASTM B194 Cuberyllium Copper Plate 6mm X 25mm X 800mm
  • C17200 ASTM B194 Cuberyllium Copper Plate 6mm X 25mm X 800mm
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number ASTM B194
Minimum Order Quantity 50
Price 30-50USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Cuberyllium Copper Plate CUBERYLLIUM® Grade CUBERYLLIUM® 172
Sizw 6mm*25mm*800mm Standard ASTM B194
Heat Treatment 3 Hr 315°C Or 2 Hr 315°C Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State A(TB00), H(TD04), AT(TF00), HT(TH04)
Application For Electrical Application
High Light

ASTM B194 C17200 Plate

,

ASTM B194 Beryllium Copper Plate

,

Bright C17200 Plate
Leave a Message
Product Description

Material Requirement C17200 ASTM B194 Cuberyllium Copper Plate 6mm*25mm*800mm

Product Normal Description:

Product Name: Cuberyllium copper plate

Grade: C17200

Standard: ASTM B194

Product Size: 6mm*25mm*800mm

State: A(TB00), H(TD04), AT(TF00), HT(TH04)

Typical Application: For electrical application

Product Brand: CUBERYLLIUM®



Chemical Composition of C17200 ASTM B194 Cuberyllium Copper Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of C17200 ASTM B194 Cuberyllium Copper Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of C17200 ASTM B194 Cuberyllium Copper Plate:

Mechanical and Electrical Properties of C17200 Sheet/Plate
CUBERYLLIUM ASTM Heat Treatment

Thickness

(mm)

Tensile Strength

(Mpa)

 Elongation Percent

HARDNESS

Rockwell B or C Scale

 Electrical Conductivity
(% IACS)
Designation Designation
A TB00   All Size 400~580 20~60 B45-85 15～19
H TD04 ＜10 600~880 8~20 B91-103 15～19
10~25 600~850 8~20 B90-102 15 ~ 19
25~50 580~820 8~20 B88-102 15 ~19
＞50 580~820 8~20 B88-102 15 ~19
AT TF00
3 hr 315℃
 		 All Size 1120~1358 3~10 C36-41 22 ~ 28
HT TH04 2 hr 315℃ ＜10 1200~1450 1~5 C38-45 22 ~ 28
10~25 1200~1500 1~5 C38-44 22 ~ 28
25~50 1200~1450 2~5 C37-43 22 ~ 28
＞50 1100~1350 2~5 C36-42 22 ~ 28



Applications of C17200 ASTM B194 Cuberyllium Copper Alloy:

ELECTRICAL:
Electrical Switch / Relay Blades Fuse Clips Switch Parts
Relay Parts Connectors Spring Connectors
Current-Carrying Contact Bridges Belleville Washers
Navigational Instruments Clips
FASTENERS:
Washers Fasteners Lock Washers
Retaining Rings Roll Pins Screws
Bolts
INDUSTRIAL:
Pumps Springs Electrochemical
Shafts Non-Sparking Safety Tools Flexible Metal Hose
Housings for Instruments Bearings Bushings
Valve Seats Valve Stems Diaphragms
Springs Welding Equipment Rolling Mill Parts
Spline Shafts Pump Parts Valves
Bourdon Tubes Wear Plates on Heavy Equipment Bellows

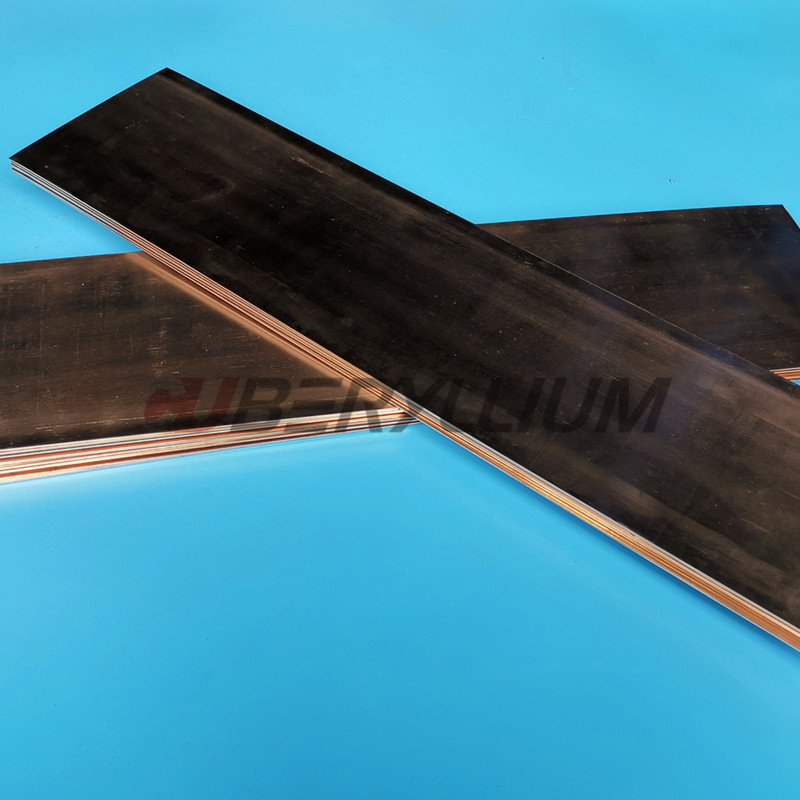

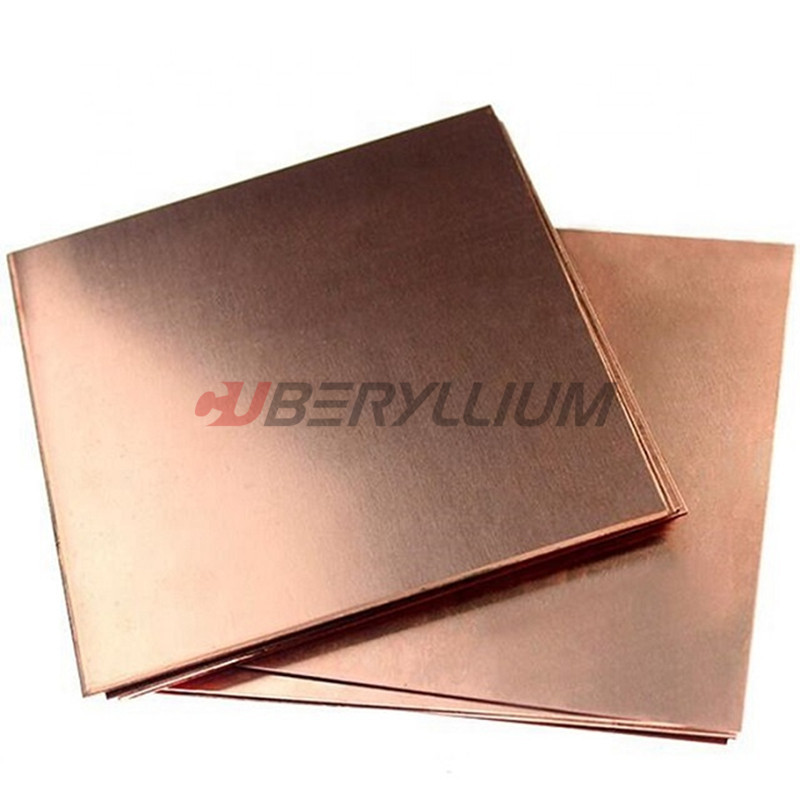

Product Photos:

C17200 ASTM B194 Cuberyllium Copper Plate 6mm X 25mm X 800mm 0



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
