CuCr1Zr Copper Alloy Round Bar 1000mm For Light Soldering Guns Tips

Place of Origin China
Certification ISO, SGS
Model Number C18150
Minimum Order Quantity 50 kgs
Price 20 USD
Packaging Details Wooden box with PVC cover or Customers' Requirement.
Delivery Time Usually 10~15 work days
Payment Terms L/C, T/T
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name CuCr1Zr Copper Alloys Round Bars 1000mm For Light Soldering Guns, Tips Length 1000mm~3000mm
Shape Round/Rectangle Typical Applications Light Soldering Guns, Tips
Brand CUBERYLLIUM Melting Point 1070~1080℃
Grade CuCr1Zr, EN CW106C Thermal Conductivity Btu/ft.2/ft./hr./°F 187
Processing Service Welding Machining Property Good
High Light

CuCr1Zr Copper Alloys


CuCr1Zr Copper Alloy Round Bar


1000mm Copper Alloy Round Bar

Leave a Message
Product Description

CuCr1Zr Copper Alloys Round Bars 1000mm For Light Soldering Guns, Tips
Product Description:
Name: CuCr1Zr Copper Alloys Round Bars
Grade: CuCr1Zr, EN CW106C
Thermal Conductivity Btu/ft.2/ft./hr./°F: 187
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Chemical Composition:

Cr: 0.50-1.50%
Zr: 0.05-0.25%
Cu: Balance
Note: Copper plus additions equal 99.70% minimum.

Chromium zirconium is a unique copper alloy that’s able to decrease stress under constant strain. It’s typically used with steel bolts in turbine casting, which must be straightened and typed.
Machining includes a variety of processes in which a raw piece of material is cut into a desired final shape and size by a controlled material-removal process. The machinability rating of C18150 is 30% which is moderate. The use of a cutting tool with a chip breaker is recommended.
Material Properties of C18150:
The C18150 copper alloy has a combination of properties as below:
Tensile strength: 220-540 N/mm2
0.2% Proof strength: 100-440 N/mm2
% Elongation: 35-5
Hardness (HV): 55-175
Electrical conductivity: 80% IACS
Lead Time:

Quantity(kilograms) 1 - 50 51 - 100 >100
Est. Time(days) 7 15 To be negotiated


Detailed Specifications:

Bar/Rod Diameter:1.0-200mm Length:1000-6000mm
Sheet/Plate Thickness:0.2-100mm Width:100-1000mm Length:1000-2000mm
Strip/Tape Thickness:0.01-2.0mm Width:4-1000mm
Pipe/Tube Thickness:0.1-100mm OD:1-600mm

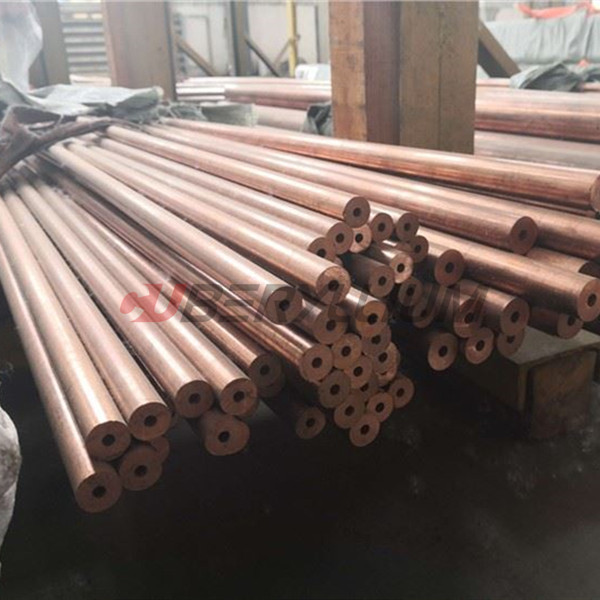

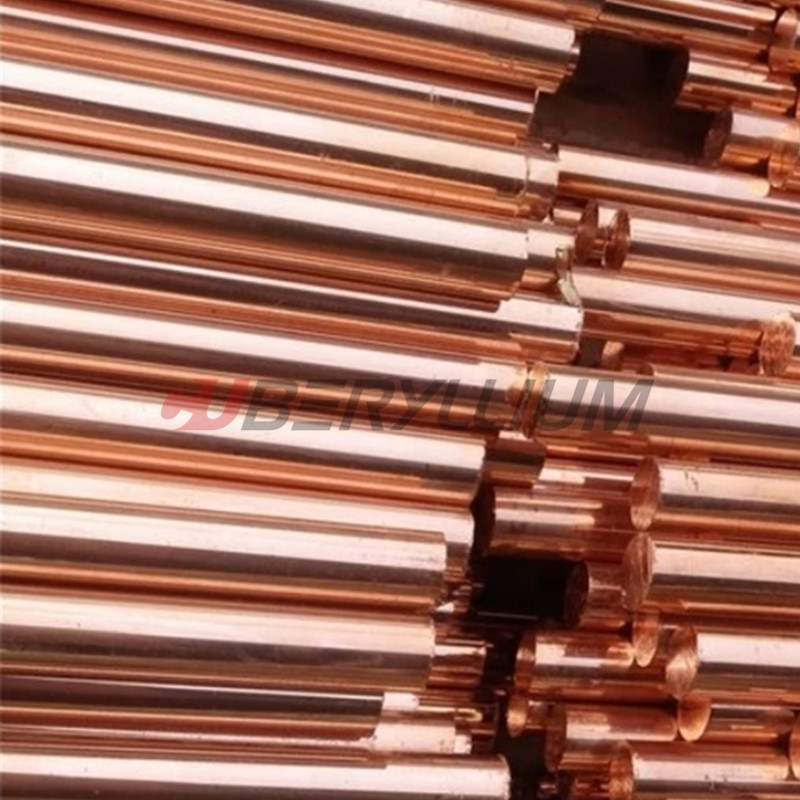

Product Photo:
CuCr1Zr Copper Alloy Round Bar 1000mm For Light Soldering Guns Tips 0
CUBERYLLIUM®-815 is a high conductivity, high strength copper alloyed with chromium. C18150 is heat treatable, and resists softening in service up to temperatures of 500°C. It is used for spot and seam welding electrodes, plastic mould components and other applications requiring excellent electrical and thermal conductivity and high strength and wear resistance at high temperatures.
C18150 when used for spot and seam welding electrodes can provide less sticking and resists deformation longer than copper-chromium (C18200) in some specific situations. C18150 can be used instead of C18200 in any structural or current carrying application.
Company Profile:
CUBERYLLIUM® is a national-level high-tech company. It is a production-oriented enterprise mainly engaged in the production of high-performance copper alloy materials , High conductivity, high strength, wear resistance, fatigue resistance, corrosion resistance and other characteristics, widely used in aerospace, communications, welding, chemical petroleum and medical fields.
Why Choose Us:
1. We have more than 20 years fabricating experience and timely service.
2. CUBERYLLIUM® dedicates to support our customers with good quality products and competitive price.
3. Our main goal is to establish long-term cooperation and to achieve win-win success with our customer together.
