C18150 Chromium Zirconium Copper Square Rod For Tips Rod Extensions 2 - 10mm
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO, SGS |
| Model Number | C18150 |
| Minimum Order Quantity | 50 kgs |
| Price | 20 USD |
| Packaging Details | Wooden box with PVC cover or Customers' Requirement. |
| Delivery Time | Usually 10~15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 200T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | CUBERYLLIUM | Machining Property | Good |
|---|---|---|---|
| Specific Gravity | 8.89 | Name | C18150 Chromium Zirconium Copper Square Rods 2mm~10mm For Tips And Rod Extensions |
| Grade | CuCr1Zr, EN CW106C, UNS C18150 | Shape | Round/Flat/Rectangle |
| Melting Point | 1070~1080℃ | Diameters | 2mm~10mm |
| Length | 1000mm~3000mm | Typical Uses | Tips And Rod Extensions |
| High Light | C18150 Chromium Zirconium Copper,Square Rod Chromium Zirconium Copper,10mm Chromium Zirconium Copper |
||
Product Description
C18150 Chromium Zirconium Copper Square Rods 2mm~10mm For Tips and Rod Extensions
Physical Properties:
| Density at 68°F: | 0.321 Lbs./In.3 |
| Specific Gravity: | 8.89 |
| Melting Point: | (Liquidus): 1080°C (1976°F) |
| (Solidus): 1070°C (195°F) | |
| Coefficient of Thermal Expansion per °F: | 9.5 x 10-6 (77-212°F) |
| Electrical Conductivity at 68°F (volumetric): | 80% IACS (aged and drawn) |
| Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: | 187 |
| Modulus of Elasticity - Tension: | 17000 ksi |
Detailed Specifications:
| Bar/Rod | Diameter:1.0-200mm Length:1000-6000mm |
| Sheet/Plate | Thickness:0.2-100mm Width:100-1000mm Length:1000-2000mm |
| Strip/Tape | Thickness:0.01-2.0mm Width:4-1000mm |
| Pipe/Tube | Thickness:0.1-100mm OD:1-600mm |
Applications:
| Product Category | Product | Reason Category | Reason |
| Consumer | Pencil-type & Light Soldering Guns: Tips, Rod Extensions | Conductivity (Thermal) | Thermal Conductivity |
| Pencil-type & Light Soldering Guns: Tips, Rod Extensions | Mechanical Properties | Retains Strength Better Than C18200 at Elevated Temp w/ Decrease in Conduct | |
| Pencil-type & Light Soldering Guns: Tips, Rod Extensions | Mechanical Properties | Stable up to 700 F. | |
| Electrical | Resistance welding electrodes | Conductivity (Electrical) | Electrical Conductivity |
| Resistance welding electrodes | Conductivity (Thermal) | Thermal Conductivity | |
| Resistance welding electrodes | Corrosion Resistance | Oxidation Resistance | |
| Resistance welding electrodes | Mechanical Properties | High Strength | |
| Industrial | Welding Electrodes | Welding Characteristics | Weldability |
| Welding Wheels, Tips and Rod Extensions | Welding Characteristics | Weldability |

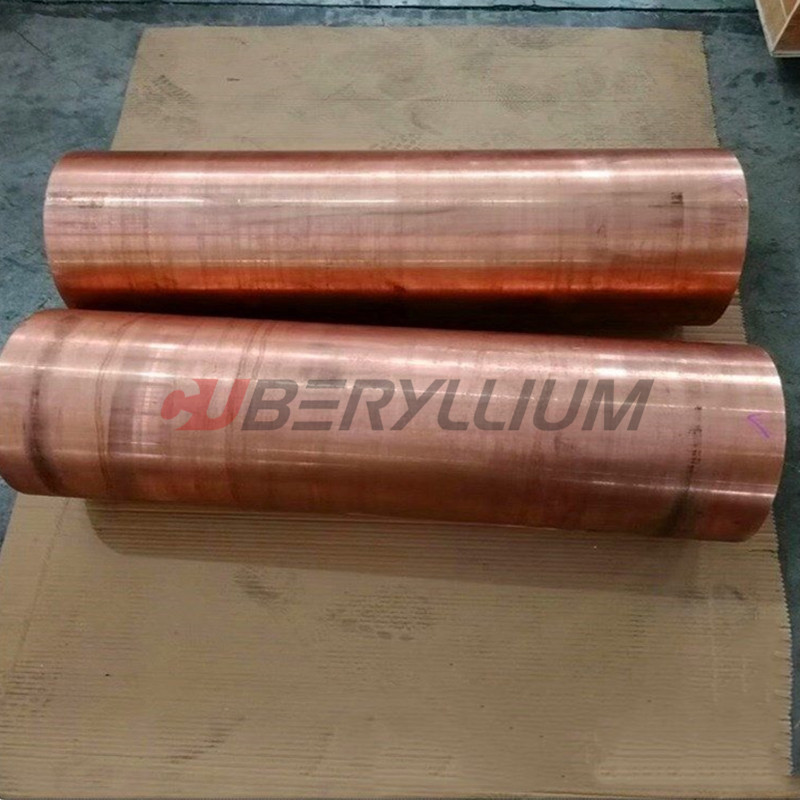

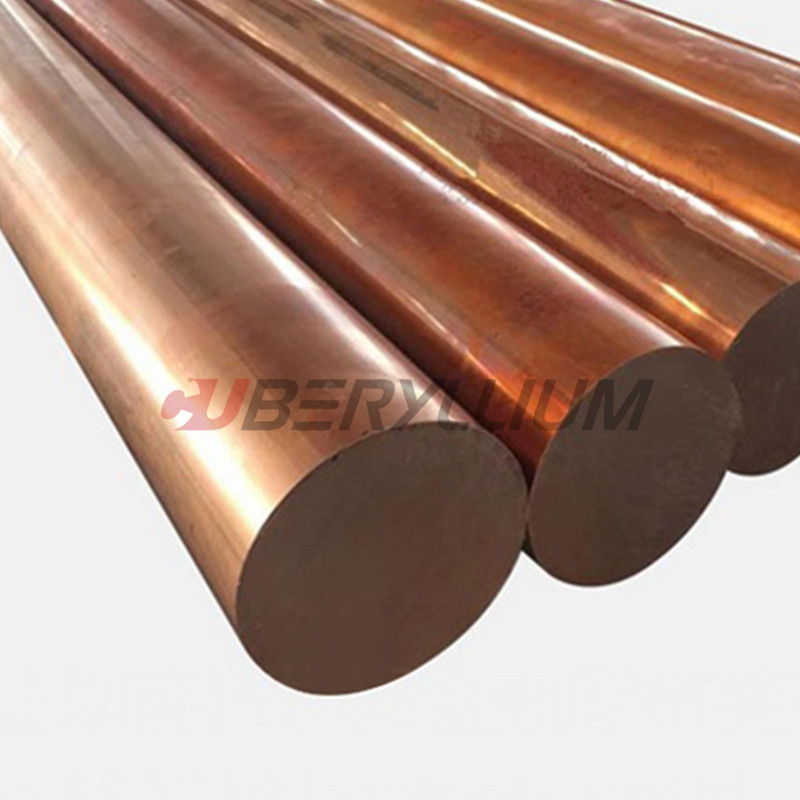

Product Photo:
Characteristics:
Copper Chromium Zirconium is a unique copper alloy. It is used for industrial applications, electrical applications, and casting purposes. Copper ZIrconium chromium is less sticky and possesses anti-corrosive properties. A high copper alloy with small additions of chromium and zirconium, that can be heat treated by quench and precipitation hardening.The addition of Zirconium helps prevent electrode sticking during the spot welding of galvanised steel.
The chemical composition of C18150 is 1% chromium, 98.85% copper, and 0.15% zirconium. The addition of Zirconium to chromium copper improves creep resistance at high operating temperatures and reduces sticking of electrodes to the work during spot welding of galvanized or coated materials. The physical copper properties of C18150 include a density of 8.89 grams per cubic centimeter.
FAQ:
Q1: Do you have after-sale service?
A1: Our quality and service is our life, so even after your buying, we still offer free after sale service.
Q2. Why should I choose your products?
A2. Our products are high quality and prices are competitive.
Q3: What's your payment term?
A3: We accept TT, L/C and west union.
