SGS Zirconium Copper Alloy C15000 Round Plate For Collector Connector

Place of Origin China
Certification ISO,SGS
Model Number C15000
Minimum Order Quantity 50kgs
Price 30~50 USD
Packaging Details PVC material packaging or according to customer requirements.
Delivery Time 10-15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Brand CUBERYLLIUM Shape Rectangle, Round,Square
Name SGS Zirconium Copper Alloy Round Plate C15000 Thermal Conductivity 212
Standard SAE J461,J463 Machining Property Good
Processing Service Bending, Welding Typical Usage Collector Connector
Modulus Of Elasticity-Tension  18,700 Ksi Safe Handing No Special Health Risk
High Light

Round Plate Zirconium Copper Alloy C15000


SGS Zirconium Copper Alloy C15000


Round Plate C15000 Zirconium Copper

Leave a Message
Product Description

SGS Zirconium Copper Alloy Round Plate C15000 For Collector Connector


Copper Zirconium Plate C15000 For Axial Conductors, Back-up Electrodes

Product Details:

Item Name: Copper Zirconium Plate C15000

Resistance Welding Manufacturing Alliance: Class1

Density at 68°F: 0.321 Lbs./In.3

Melting Point: 980℃~1080℃

Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 212

Principal Element: Cu, Zr

Available Shape: Hexagon/Octagon Bar, Rectangle/Round/Special/Square Plate

Thickness: 5mm~200mm

Mechanical and Physical Testing: Elongation,Grain,Size,Hardness,Tensile,Yield


Chemical Composition:

Zr: 0.15-0.20%

Cu: Balance

Note: Copper plus additions equal 99.90% minimum.


Fabrication Properties:

Technique Suitability
Soldering Excellent
Brazing Good
Oxyacetylene Welding Not Recommended
Gas Shielded Arc Welding Not Recommended
Coated Metal Arc Welding Not Recommended
Spot Weld Not Recommended
Seam Weld Not Recommended
Butt Weld Good
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Excellent
Machinability Rating 20

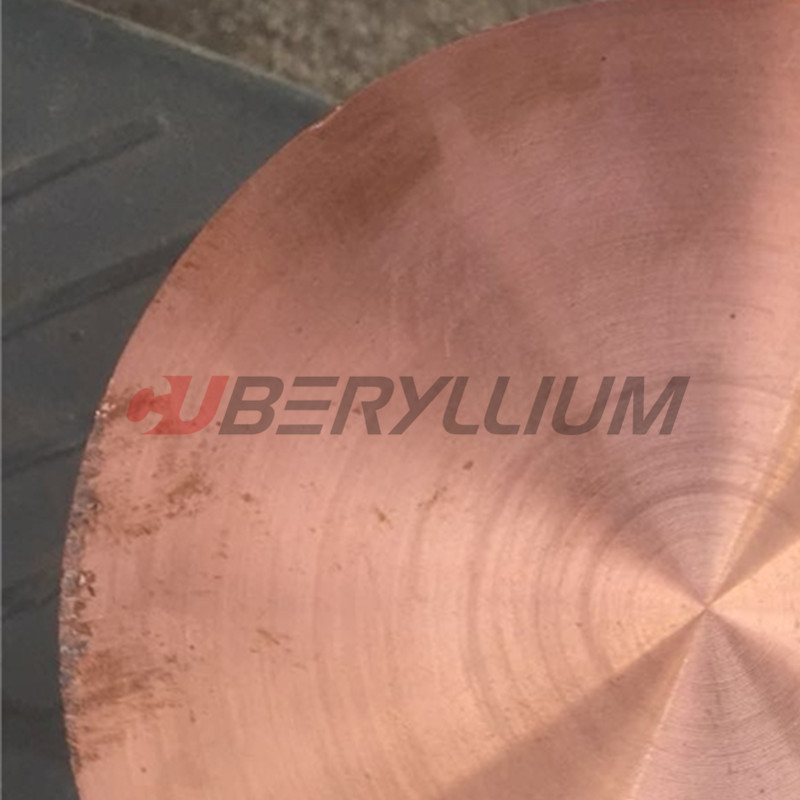

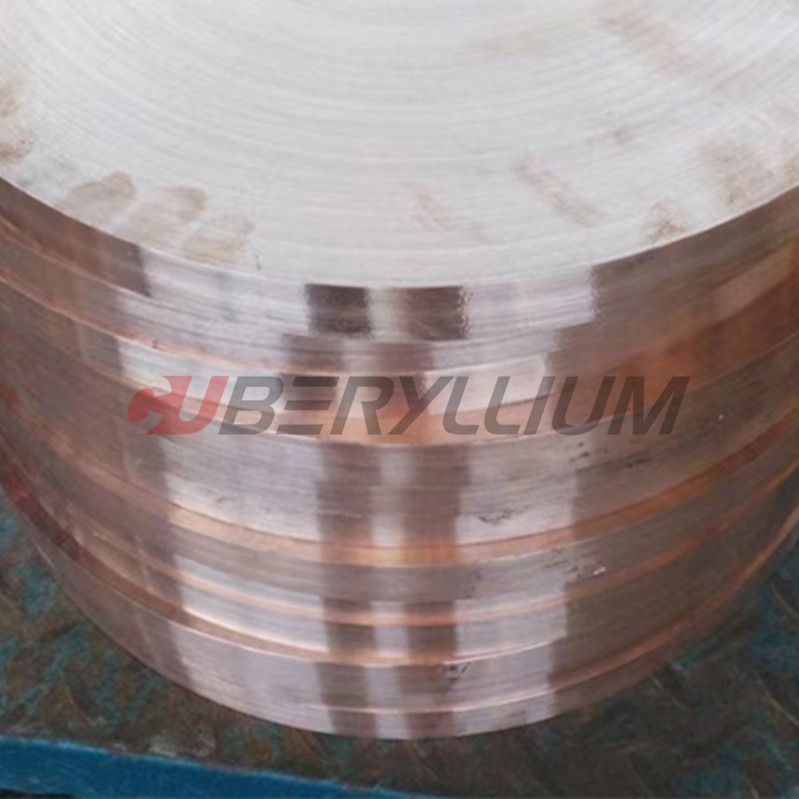

Product Photo:

SGS Zirconium Copper Alloy C15000  Round Plate For Collector Connector 0


Main Applications:

Axial Conductors, Back-up Electrodes, Bushings, Caps & Shanks, Casting Wheels

Casting Molds, Circuit Breaker Parts, Collector Connector, Collector Housing

Connector Bar, Connectors, Connection Lead Bar, Continuous Casting Molds

Cross Wire Welding Electrodes & Components, Damper Ring/Fingers

Dies & Fixtures, Electrode Holders & Adaptors, Electrical & Mechanical Power Components

End Rings & Rotor Bar, Flash & Butt Welding Dies, Flexible Connector, Joining Components



C15000 Copper Zirconium is good replacement for C16200 Copper Cadmium. C15000 Copper Zirconium is a good replacement because of its excellent thermal and electrical conductivity while offering moderate strength. C15000 strength properties are developed through cold working (similar to C16200) whereas C18150 strength properties are developed primarily from heat treating (precipitation hardening), which is an advantage for large parts.

CUBERYLLIUM®-150 Zirconium Copper is an excellent and unique copper alloy with high electrical conductivity, hardness, and ductility, moderate strength, and excellent resistance to softening at elevated temperatures. The addition of 0.15% zirconium (Zr) to copper results in a heat treatable copper alloy which may be solution treated and subsequently aged to produce these desirable properties.
