Copper Chromium Zirconium RWMA Class 1 C15000 Bars For Solderless Wrapped

  • Copper Chromium Zirconium RWMA Class 1 C15000 Bars For Solderless Wrapped
  • Copper Chromium Zirconium RWMA Class 1 C15000 Bars For Solderless Wrapped
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO, SGS
Model Number C15000
Minimum Order Quantity 100kgs
Price 20 USD
Packaging Details Standard Seaworthy Package
Delivery Time Generally 10~15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name ISO Copper Chromium Zirconium RWMA Class1 C15000 Bars Brand CUBERYLLIUM
Shape Round,Square,Rectangle,Flat Diameters 2mm~10mm
Typical Applications Solderless Wrapped Length 6000mm
Processing Service Bending, Welding Surface Polished
Density 0.321 Lbs./In.3 Specific Gravity 8.89
High Light

Solderless Wrapped Copper Chromium Zirconium

,

RWMA Class 1 Bars

,

C15000 Copper Chromium Zirconium
Leave a Message
Product Description

ISO Copper Chromium Zirconium RWMA Class1 C15000 Bars For Solderless Wrapped

Specification:

item value
Application Solderless Wrapped
Grade C15000
Brand Name CUBERYLLIUM
Place of Origin China
Processing Service Bending, Welding, Decoiling, Cutting, Punching
Product Name Copper Bars
MOQ 100 kgs
Diameters 2mm~10mm
Delivery Time 7-15 Days
Package Standard Seaworthy Package
Length Customer's Demands
Payment terms 30%TT+70% Balance
Shape Bars/Rods







Chemical Composition:

Zr: 0.15-0.20%
Cu: Balance
Note: Copper plus additions equal 99.90% minimum.



Features:

Rod is supplied from the mill in the fully aged and drawn condition so no further heat treatment is required by the fabricator. The softening temperature of properly heat treated C15000 rod exceeds 500°C as compared to unalloyed, pure copper which softens at 200°C and silver bearing coppers which soften at 350°C.



Advantages:

1. Good wear resistance;

2. High intensity;

3. Hot Forging performance;

4. Good cutting performance;

5. Self-lubricating performance



Physical Properties:

Density at 68°F: 0.321 Lbs./In.3
Specific Gravity: 8.89
Melting Point: (Liquidus): 1080°C (1976°F)
  (Solidus): 980°C (1796°F)
Coefficient of Thermal Expansion per °F: 9.4 x 10-6 (68-212°F)
  9.8 x 10-6 (68-572°F)
  11.2 x 10-6 (68-1200°F)
Electrical Conductivity at 68°F (volumetric): 85-95% IACS (aged and drawn)
  55-72% IACS (solution annealed)
Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 212
Modulus of Elasticity - Tension: 18,700 ksi

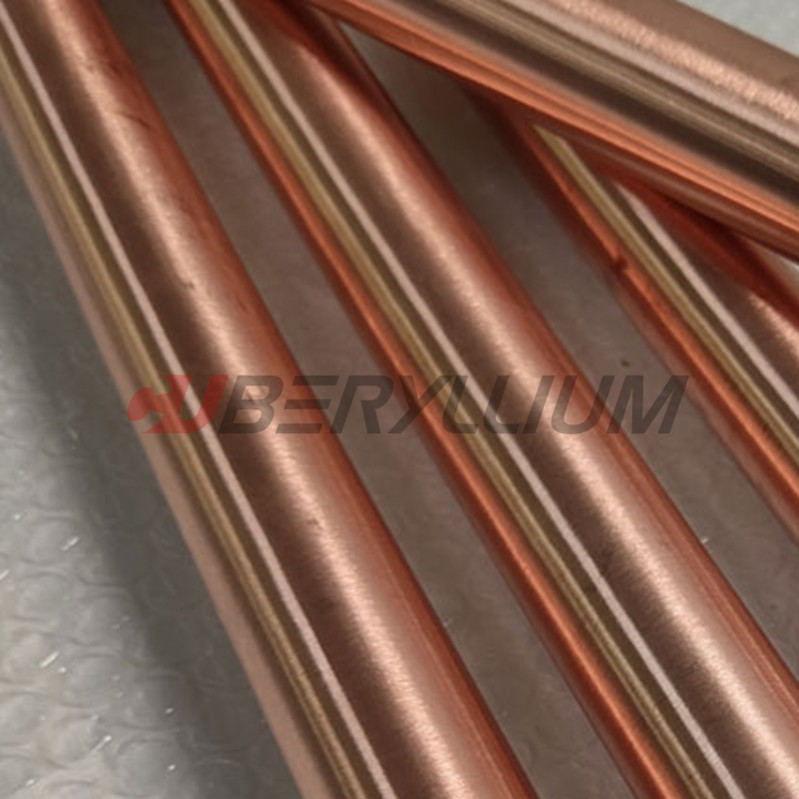

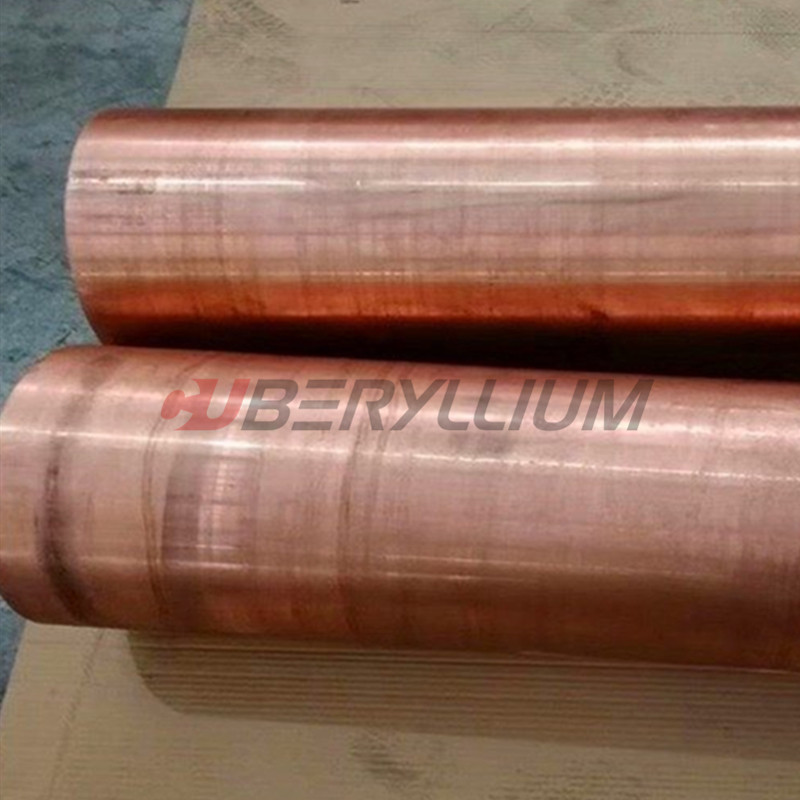

Product Photo:

Copper Chromium Zirconium RWMA Class 1 C15000 Bars For Solderless Wrapped 0



CUBERYLLIUM®-150 Zirconium Copper is an excellent and unique copper alloy with high electrical conductivity, hardness, and ductility, moderate strength, and excellent resistance to softening at elevated temperatures. The addition of 0.15% zirconium (Zr) to copper results in a heat treatable copper alloy which may be solution treated and subsequently aged to produce these desirable properties.



Available Products (forms):
Round bars, Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates.
Custom shapes are available upon request.



FAQ:

Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.



Q2. What service can we provide?

A2. Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese



Q3. The logo and the color can be customized?

A3. Yes, we welcome you to sample custom.
