Copper Zirconium Plate C15000 For Axial Conductors Back Up Electrodes

Copper Zirconium Plate C15000 For Axial Conductors, Back-up Electrodes

Product Details:

Item Name: Copper Zirconium Plate C15000

Resistance Welding Manufacturing Alliance: Class1

Density at 68°F: 0.321 Lbs./In.3

Melting Point: 980℃~1080℃

Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 212

Principal Element: Cu, Zr

Available Shape: Hexagon/Octagon Bar, Rectangle/Round/Special/Square Plate

Thickness: 5mm~200mm

Mechanical and Physical Testing: Elongation,Grain,Size,Hardness,Tensile,Yield

Chemical Composition:

Zr: 0.15-0.20%

Cu: Balance

Note: Copper plus additions equal 99.90% minimum.

Fabrication Properties:

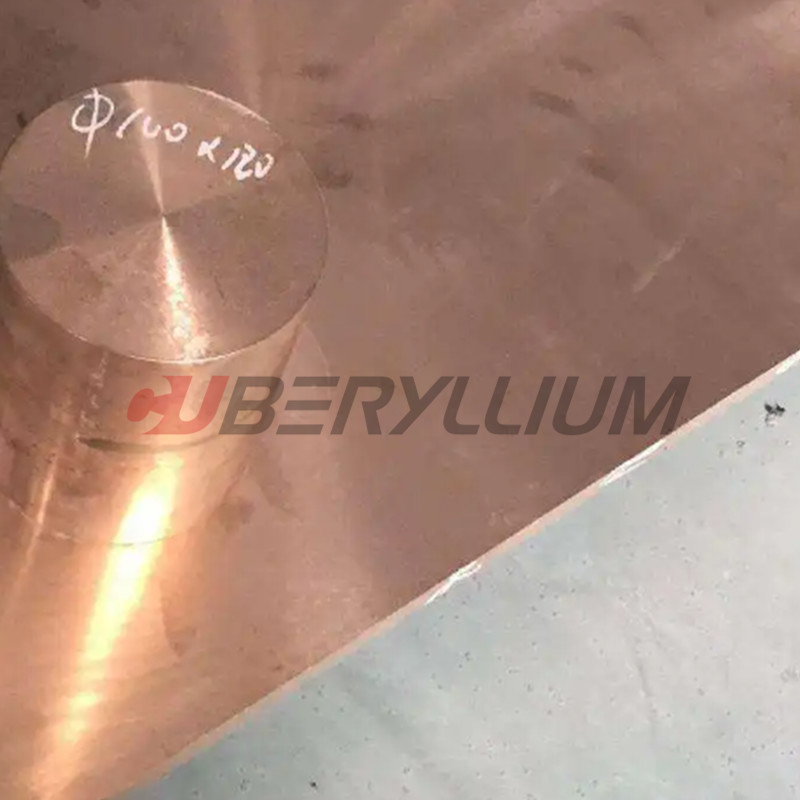

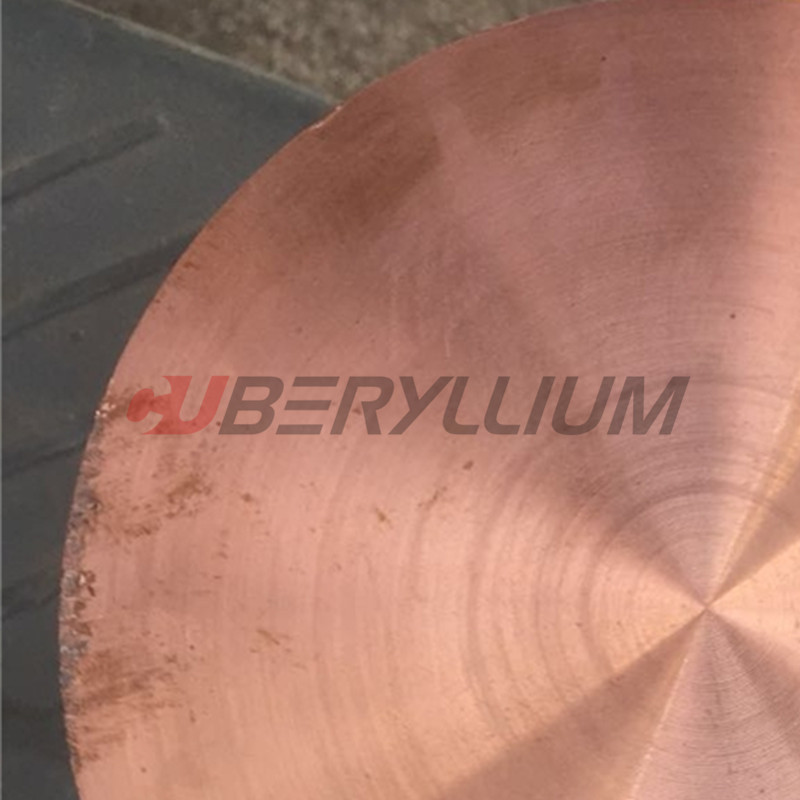

Product Photo:

Main Applications:

Axial Conductors, Back-up Electrodes, Bushings, Caps & Shanks, Casting Wheels

Casting Molds, Circuit Breaker Parts, Collector Connector, Collector Housing

Connector Bar, Connectors, Connection Lead Bar, Continuous Casting Molds

Cross Wire Welding Electrodes & Components, Damper Ring/Fingers

Dies & Fixtures, Electrode Holders & Adaptors, Electrical & Mechanical Power Components

End Rings & Rotor Bar, Flash & Butt Welding Dies, Flexible Connector, Joining Components

Advantages:

C15000 Copper Zirconium is good replacement for C16200 Copper Cadmium. C15000 Copper Zirconium is a good replacement because of its excellent thermal and electrical conductivity while offering moderate strength. C15000 strength properties are developed through cold working (similar to C16200) whereas C18150 strength properties are developed primarily from heat treating (precipitation hardening), which is an advantage for large parts.

CUBERYLLIUM®-150 Zirconium Copper is an excellent and unique copper alloy with high electrical conductivity, hardness, and ductility, moderate strength, and excellent resistance to softening at elevated temperatures. The addition of 0.15% zirconium (Zr) to copper results in a heat treatable copper alloy which may be solution treated and subsequently aged to produce these desirable properties.
