ASTM B224 CuZr Copper Round Rod For Resistance Welding Electrodes

  • ASTM B224 CuZr Copper Round Rod For Resistance Welding Electrodes
  • ASTM B224 CuZr Copper Round Rod For Resistance Welding Electrodes
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number C15000
Minimum Order Quantity 100kgs
Price 20USD
Packaging Details Wooden box or as requirement.
Delivery Time Generally 10-15 working days
Payment Terms L/C, T/T,Paypal
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name ASTM B224 CuZr Copper Round Rods Safe Handing No Special Health Risk
Machining Property Good Shape Round/Square
Brand CUBERYLLIUM Density 0.321 Lbs./In.3
Standard ASTM B224,B150, SAE J463, SAE J461 Main Application Resistance Welding Electrodes
Processing Service Bending, Welding, Decoiling, Cutting, Punching Modulus Of Elasticity-Tension  18,700 Ksi
High Light

CuZr Copper Round Rod

,

ASTM B224 Copper Round Rod
Leave a Message
Product Description

ASTM B224 CuZr Copper Round Rods For Resistance Welding Electrodes

Mechanical Properties:

Form Temper Code

Tensile Strength

(ksi)

YS-0.5% Ext

(ksi)

Elongation

(%)

 Rockwell B scale Rockwell F scale

Section Size

(in)

Cold Work

(%)
Rod& Bar TH01 48 Typ 40 Typ 28 Typ 57 Typ   0.50 - 1.0 20
TH04 60 Typ 53 Typ 24 Typ 71 Typ   0.50 - 1.0 60
TF00 30 Typ 13 Typ 51 Typ 6 Typ   0.50 - 1.0
TB00 29 Typ 6 Typ 54 Typ     0.50 - 1.0
TD02 49 Typ 47 Typ 20 Typ     0.50 - 1.0 40
TD04 57 Typ 51 Typ 19 Typ     0.50 - 1.0 60
Wire TH02 53 Typ 49 Typ 23 Typ   90 Typ 0.5 30
O61 37 Typ 11 Typ 50 Typ   40 Typ 0.25
TH04 76 Typ 72 Typ 1.5 Typ     0.04 98
TH04 72 Typ 68 Typ 3 Typ     0.09 92
TF00 30 Typ 13 Typ 49 Typ     0.09 0
TB00 29 Typ 6 Typ 54 Typ     0.09 0



Characteristics:

C15000 is an important and unique copper alloy with high electrical conductivity, hardness and ductility, moderate strength and excellent high temperature softening properties. The addition of 0.15% zirconium to copper yields a heat-treatable copper alloy that can be treated with solution and subsequently aged to produce these desirable properties. The bar is supplied by the mill and is completely aged and stretched so that the manufacturer does not need further heat treatment.



Specifications:

item value
Application Solderless Wrapped
Grade C15000
Brand Name CUBERYLLIUM
Place of Origin China
Processing Service Bending, Welding, Decoiling, Cutting, Punching
Product Name Copper Bars
MOQ 100 kgs
Diameters 2mm~10mm
Delivery Time 7-15 Days
Package Standard Seaworthy Package
Length Customer's Demands
Payment terms 30%TT+70% Balance
Shape Bars/Rods



Fabrication Properties:

Technique Suitability
Soldering Excellent
Brazing Good
Oxyacetylene Welding Not Recommended
Gas Shielded Arc Welding Not Recommended
Coated Metal Arc Welding Not Recommended
Spot Weld Not Recommended
Seam Weld Not Recommended
Butt Weld Good
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Excellent
Machinability Rating 20

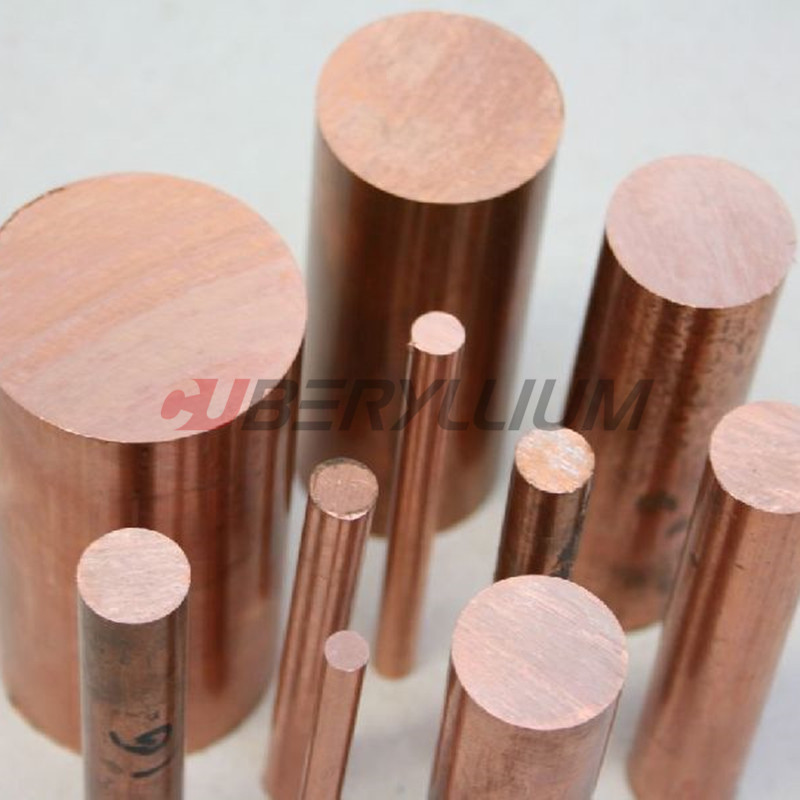

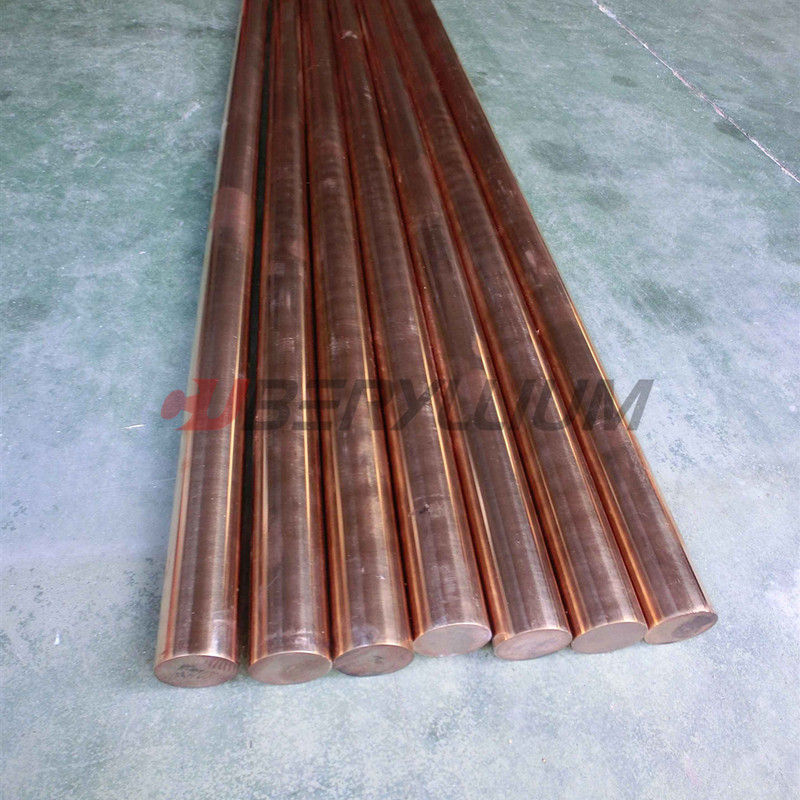

Product Photo:

ASTM B224 CuZr Copper Round Rod For Resistance Welding Electrodes 0
