DIN 2.1293 Chromium Zirconium Copper Round Bars For Resistance Welding Electrodes

Place of Origin China
Certification ISO, SGS
Model Number C18150
Minimum Order Quantity 50 kgs
Price 20 USD
Packaging Details Wooden box with PVC cover or Customers' Requirement.
Delivery Time 10~15 working days
Payment Terms L/C, T/T
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name DIN 2.1293 Copper Chromium Zirconium Round Bars For Resistance Welding Electrodes Applications Stud Welding Collets And Tips
Diameters 1mm~15mm Machining Property Good
Specific Gravity 8.84 Shape Round/Square/Flat
Melting Point 1074℃ Processing Service Bending, Welding
Standard CuCrNi2Si, DIN 2.0855, CW111C To EN Brand CUBERYLLIUM
High Light

Round Bars Chromium Zirconium Copper


DIN 2.1293 Chromium Zirconium Copper


Resistance Welding Electrodes Chromium Zirconium Copper

Leave a Message
Product Description

DIN 2.1293 Copper Chromium Zirconium Round Bars For Resistance Welding Electrodes

Description of Copper Chromium Zirconium:

Used extensively for cap style resistance welding electrodes.

Evidence suggests that it can provide less sticking and resist deformation longer than

its copper-chrome counterpart in some specific situations.


Physical Properties:

Density at 68°F: 0.321 Lbs./In.3
Specific Gravity: 8.89
Melting Point: (Liquidus): 1080°C (1976°F)
  (Solidus): 1070°C (195°F)
Coefficient of Thermal Expansion per °F: 9.5 x 10-6 (77-212°F)
Electrical Conductivity at 68°F (volumetric): 80% IACS (aged and drawn)
Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 187
Modulus of Elasticity - Tension: 17000 ksi


Equivalent Specifications:



DIN 2.1293

ASTM C18150

RWMA Class 2


Chemical Composition:

Cr: 0.50-1.50%
Zr: 0.05-0.25%
Cu: Balance
Note: Copper plus additions equal 99.70% minimum.


Mechanical Properties:

Temper Section Size Typical or Minimum Tensile Strength

Yield Strength

(0.5% ext. under load)

Elongation Rockwell Hardness

Vickers Hardness


  mm   MPa MPa % B
TL04 12.7 TYP 469 455 15 73 132
TL02 17.8 TYP 469 338 15 76 140
TL06 12.7 TYP 586 579 16 82 156
TL04 19.1 TYP 545 517 16 78 146
TL04 15.2 TYP 469 434 20 74 135
TX00 25.4 MIN 448 379 13 75 138
TL06 15.9 TYP 565 538 14 82 156
TL04 12.3 TYP 558 545 14 82 156
TL02 15.2 TYP 469 400 19 75 138


Available Shapes:


Round bars, Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates


Rods/Bars/Plates/Sheets: UNS.C18150, SAE J461,463;RWMA Class 2, ISO5182-1991

European Standards: CuCr1Zr, DIN 17666 2.1293, CW106C to EN



Electrical Industry:

Resistance Welding Electrodes,

Circuit Breaker Switches.


Rod Extensions, Pencil-type,

Light Soldering Guns, Tips.


Welding Wheels, Tips and Rod extensions for resistance seam and spot welding.

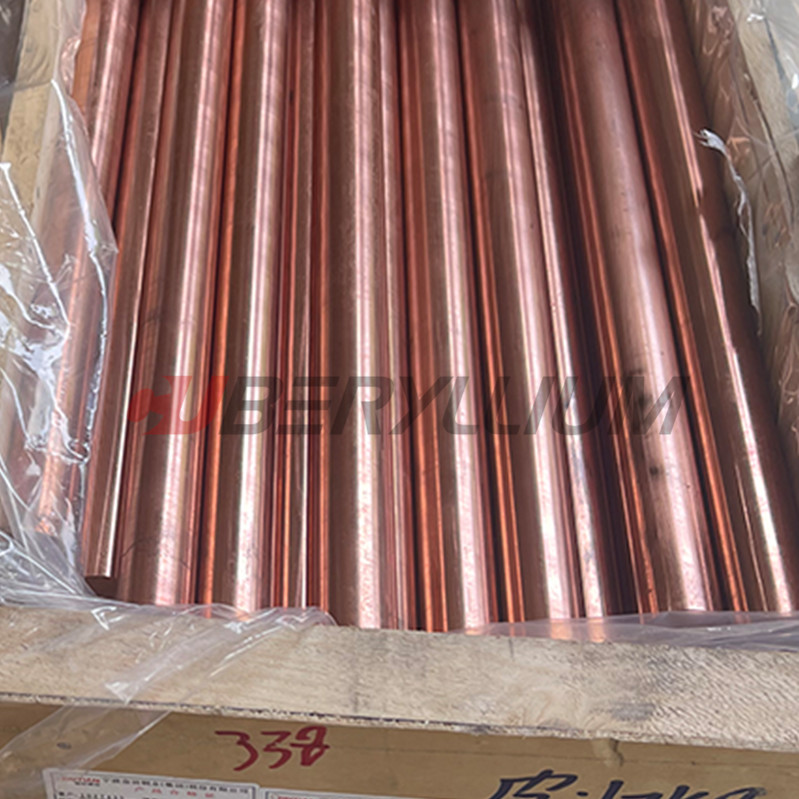

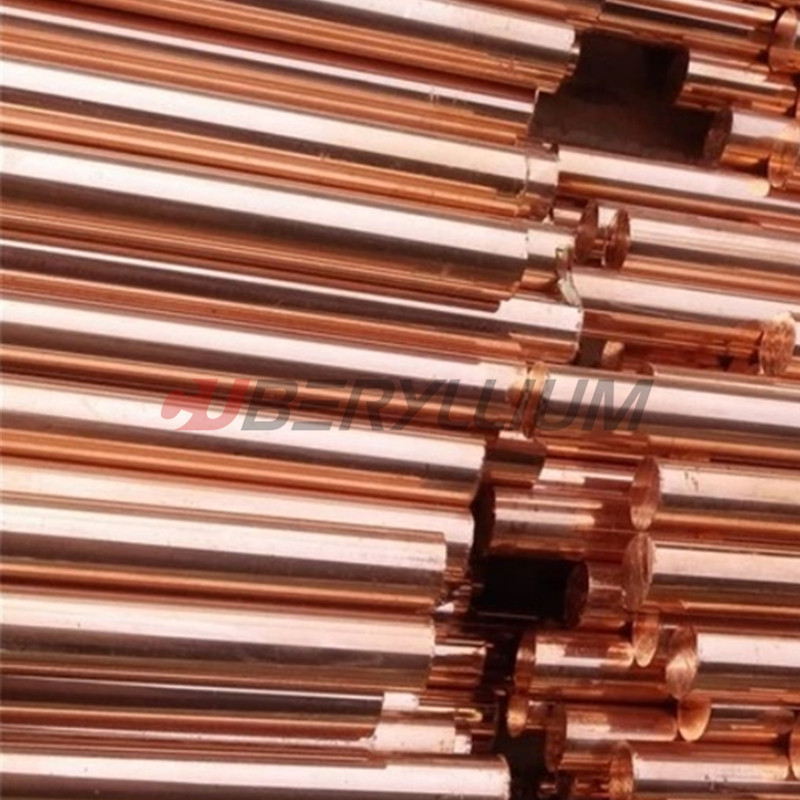

Product Photo:

DIN 2.1293 Chromium Zirconium Copper Round Bars For Resistance Welding Electrodes 0


CUBERYLLIUM®-815 is a high conductivity, high strength copper alloyed with chromium. C18150 is heat treatable, and resists softening in service up to temperatures of 500°C. It is used for spot and seam welding electrodes, plastic mould components and other applications requiring excellent electrical and thermal conductivity and high strength and wear resistance at high temperatures.
