Product Details
Name High Intensity Copper Chromium Nickel Silicon Alloys Brand CUBERYLLIUM
Shape Round/Square Specific Gravity 8.84
Machining Property Good Lengths 3000mm
Applications Resistance Welding Tips Processing Service Bending, Welding, Decoiling, Cutting, Punching
Modulus Of Elasticity 130MPa Electrical Conductivity (% IACS) 38 (22 Ms/m)
High Light

Resistance Welding Tips Chromium Alloys

,

High Intensity Chromium Alloys

Leave a Message
Product Description

High intensity Copper Chromium Nickel Silicon Alloys For Resistance Welding Tips

Typical Applications:

Resistance Welding Tips, Wheels and Fixtures
Stud Welding Collets and Tips
Sprue Bushing
Blow Pins
Pinch Offs
Plunger Tips for Metal Die Casting Machines
Hot runner Systems for Injection Molds
Cavities for Injection Molds
Welding Dies for Wire and Flash
Mold Cavities for Bold Molds
Cores, Core and Ejector Pins for Injection Molds
Heat Sink Inserts in Steel Plastic Molds



Physical Properties:

Specific Gravity: 8.84
Melting Point: 1074℃
Coefficient of Thermal Expansion per °C: 16.2 x 10-6 (20-300℃)
Electrical Conductivity (% IACS): 38 (22 Ms/m)
Thermal Conductivity (W/mk): 200
Modulus of Elasticity (103 MPA): 130



Product Description:

Name: High intensity Copper Chromium Nickel Silicon Alloys

Brand: CUBERYLLIUM

Diameters: 1mm~15mm

Length: 3000mm

Place of origin: China

Grade: CuCrNi2Si, UNS C18000, RWMA Class 3, CDA180, DIN 2.0855, CW111C to EN

Lead time: If the quantity of the goods is 1~30 kg, the goods are generally delivered within 15 days after the order is confirmed.

If more than 30kg, it can be determined according to the actual negotiation.



Packaging&Delivering:

C18000 Chromium Nickel Silicon Alloys rod is packed with waterproof paper or weave bag,

into pallets or wooden case. Special packaging requirements can also be acceptable.



Chemical Compositions:

UNS/DIN DIN/EN International specification Chemical composition Avaliable forms
C15000 CuZr 2.1580 CW120C

Zr:0.15-0.20%

Cu:balance

Cu+Zr:99.5%min

bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire.
C18000 CuNi2CrSi 2.0855 CW111C

Cr:0.10-0.80%

Ni:1.80-3.0%

Si:0.40-0.8%

Cu:balance

Cu+Cr+Ni+Si:99.5%min

bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire.
C18150 CuCr1Zr

2.196

CW106C

Cr:0.50-1.50%

Zr:0.05-0.25%

Cu:balance

Cu+Cr+Zr:99.5%min

bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire.
C18200 CuCr 2.1291 CW105C

Cr:0.60-0.20%

Cu:balance

Cu+Cr:99.5%min

bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire.



More Products:

C18150 Rods/Bars/Plates/Sheets: UNS.C18150, SAE J461,463;RWMA Class 2, ISO5182-1991

European Standards: CuCr1Zr, DIN 17666 2.1293, CW106C to EN

C18200 Rods/Bars/Plates/Sheets: UNS.C18200, RWMA Class 2, CDA18200, ISO5182-1991

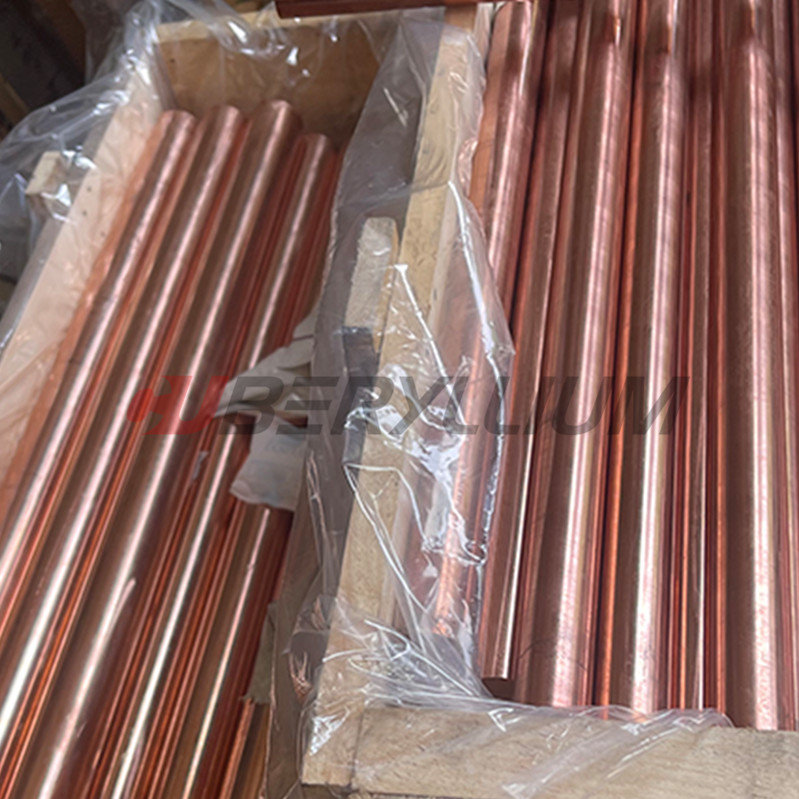

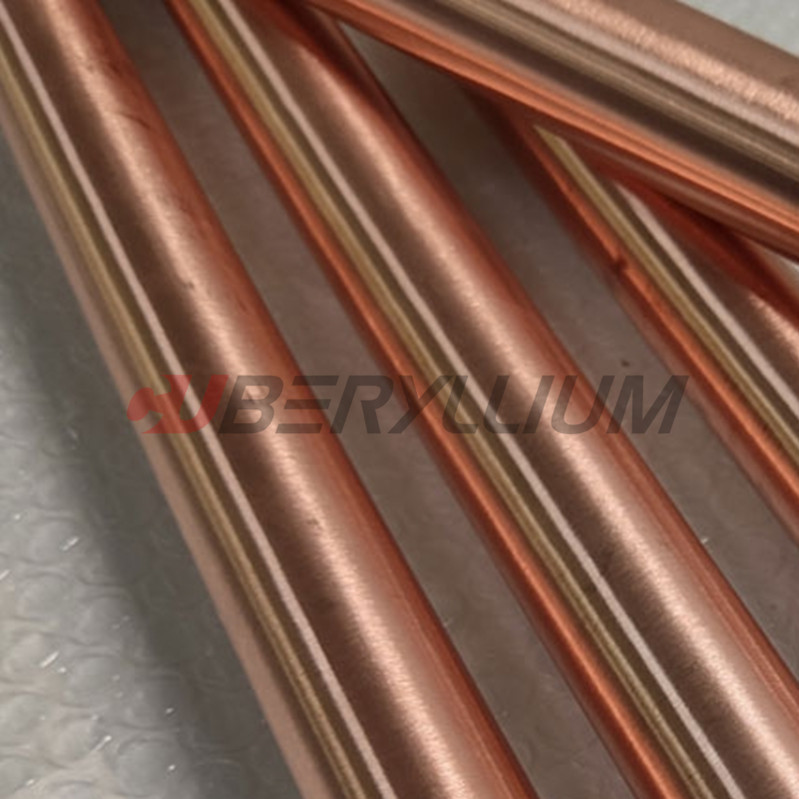

Product Photo:

High Intensity Copper Chromium Nickel Silicon Alloys For Resistance Welding Tips 0



FAQ:

Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.



Q2. Why should I choose your products?

A2. Our products are high quality and low price.



Q3. What about the lead time?

A3. Usually 7-15 days after confirm the order.
