C18000 Copper Chromium Nickel Silicon Alloy Rod For Stud Welding Collets And Tips

UNS.C18000 Copper Chromium Nickel Silicon Alloys Rods For Stud Welding Collets and Tips
Product Description:
 Name: UNS.C18000 Copper Chromium Nickel Silicon Alloys Rods
Brand: CUBERYLLIUM
Standard: CuCrNi2Si, DIN 2.0855, CW111C to EN
Specific Gravity: 8.84
Electrical Conductivity (% IACS): 38 (22 Ms/m)
Thermal Conductivity (W/mk): 200
Modulus of Elasticity (103 MPA): 130


Features of Copper Chromium Nickel Silicon Alloys:

CuCrNi2Si has high conductivity and thermal conductivity, good strength and hardness,

heat resistance, wear resistance and strong deformation resistance.

CuCrNi2Si is widely used in automobile, spaceship template and stainless steel spot welding.

Ideal electrode materials for seal welding machines, welding materials for high-voltage switches and circuit breakers,

high-strength, high conductivity and high melting point materials for continuous crystallization devices are widely used in

the metallurgical industry as IC frame conductor materials.

Chemical Composition:


More Products:
C15000 Rods/Bars/Plates/Sheets: UNS.C15000, RWMA Class 1, SAE J461,463; ISO5182-1991
C18200 Rods/Bars/Plates/Sheets: UNS.C18200, RWMA Class 2, CDA18200, ISO5182-1991
C18150 Rods/Bars/Plates/Sheets: UNS.C18150, SAE J461,463；RWMA Class 2, ISO5182-1991
European Standards: CuCr1Zr, DIN 17666 2.1293, CW106C to EN

Available Shapes:

Forms:

Round bars, Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates

Specification:

Rods/Bars/Plates/Sheets: UNS.C18000, CDA180, RWMA Class 3

European Standards: CuCrNi2Si, DIN 2.0855, CW111C to EN

Note:

ASTM: American Society for Testing and Materials

RWMA: Resistance Welder Manufacturers' Association
Unless otherwise specified, material will be produced to DIN & RWMA.

Packaging Detail:
C18000 Chromium Nickel Silicon Alloys rod is packed with waterproof paper or weave bag, into pallets or wooden case.
Special packaging requirements can also be acceptable.

Applications:
Heat Sink Inserts in Steel Plastic Molds, Plunger Tips for Die Casting Metal Machines, Core & Ejector Pins for Injection Molds,
Mold Cavities for Bold Molds, Welding Dies for Wires and Flash, Hot Runner Systems for Injection Molds,
Stud Welding Collets and Tips, Resistance Welding Wheels and Fixtures, Resistance Welding Tips.

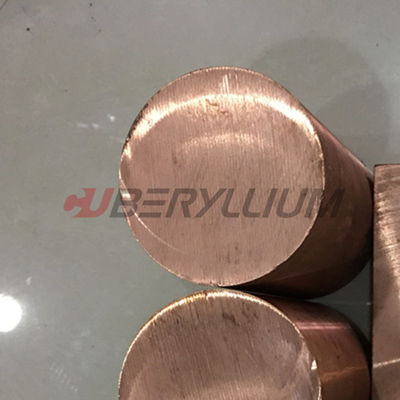

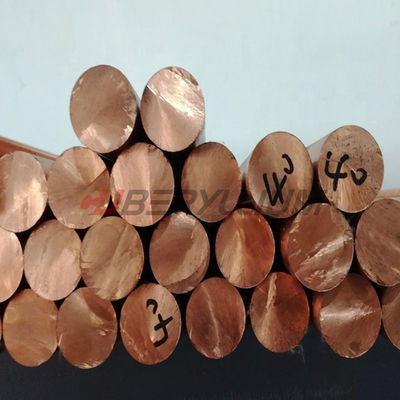

Product Photo:


CUBERYLLIUM®-180 Copper Chromium Nickel Silicon Alloys, which also called Beryllium Free Copper alloy, meets the mechanical requirements of RWMA Class 3 Copper, is a very hard heat treatable copper based alloy with an economical higher strength and high conductivity, and C18000 Alloys is utilized when a combination of very good mechanical strength along with moderate electrical and thermal electrical conductivity are required. Furthermore, C18000 alloy is an excellent substitute for copper beryllium alloys C17500 and C17510 in terms of many applications.
