C15000 Zirconium Copper Alloy Polished Bars 2mm - 8mm Pencil Type

Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO, SGS
Model Number C15000
Minimum Order Quantity 100kgs
Price 20 USD
Packaging Details Wooden box or as requirement
Delivery Time 10~15 work days
Payment Terms L/C, T/T
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zirconium Copper Alloy C15000 Polished Bars 2mm~8mm For Pencil-type Diameters 2mm~8mm
Applications Welding Wheels, Resistance Welding Tips Machining Property Good
Processing Service Bending, Welding Modulus Of Elasticity 18,700 Ksi
Shape Round Melting Point 980~1080℃
Density 0.321 Lbs./In.3 Surface Polished
High Light

Pencil Type Zirconium Copper

,

Pencil Type C15000 Zirconium Copper

,

Polished Bars Zirconium Copper

Leave a Message
Product Description

Zirconium Copper Alloy C15000 Polished Bars 2mm~8mm For Pencil-type

Features of Zirconium Copper Alloy:

C15000 is an important and unique copper alloy with high electrical conductivity, hardness and ductility, moderate strength and excellent high temperature softening properties. The addition of 0.15% zirconium to copper yields a heat-treatable copper alloy that can be treated with solution and subsequently aged to produce these desirable properties. The bar is supplied by the mill and is completely aged and stretched so that the manufacturer does not need further heat treatment.



Product Details:

Name: Zirconium Copper Alloy C15000 Polished Bars 2mm~8mm For Pencil-type

Brand: CUBERYLLIUM

Certificate: ISO, SGS

Standard: SAE J463/J461, ASTM B224/ASTM B150/ASTM B150M

Surface: polished

Density: 0.321 Lbs./In.3

Specific Gravity:  8.89

Electrical Conductivity: 85-95% IACS (aged and drawn), 55-72% IACS (solution annealed)

Thermal Conductivity: 212 Btu/ft.2/ft./hr./°F

Modulus of Elasticity: 18,700 ksi



Applications:

1. It is widely used in Electrical Industry: Resistance Welding Electrodes,Circuit Breaker Switches, Stud Bases for Power Transmitters,

Rectifiers, Diodes, Switches, Commutators.

2. Mainly used in rod extensions, pencil-type, light soldering guns, tips, connectors, solderless wrapped, welding wheels, resistance welding tips.



Fabrication Properties:

Technique

Suitability

Soldering

Excellent

Brazing

Good

Oxyacetylene Welding

Not Recommended

Gas Shielded Arc Welding

Not Recommended

Coated Metal Arc Welding

Not Recommended

Spot Weld

Not Recommended

Seam Weld

Not Recommended

Butt Weld

Good

Capacity for Being Cold Worked

Excellent

Capacity for Being Hot Formed

Excellent

Machinability Rating

20



More Products:

C18000 Rods/Bars/Plates/Sheets: UNS.C18000, CDA180, RWMA Class 3

C18150 Rods/Bars/Plates/Sheets: UNS.C18150, SAE J461,463;RWMA Class 2, ISO5182-1991

European Standards: CuCr1Zr, DIN 17666 2.1293, CW106C to EN

C18200 Rods/Bars/Plates/Sheets: UNS.C18200, RWMA Class 2, CDA18200, ISO5182-1991

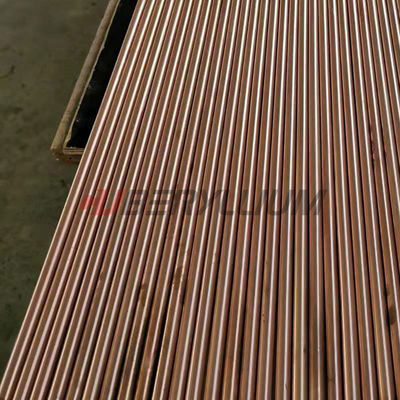

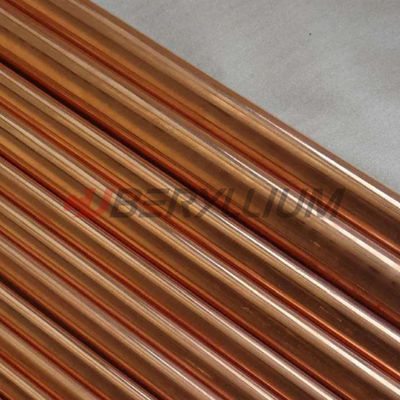

Product Photo:

C15000 Zirconium Copper Alloy Polished Bars 2mm - 8mm Pencil Type 0



FAQ:

Q1: What about the lead time?

A1: If the quantity of the goods is 1~30 kg, the goods are generally delivered within 15 days after the order is confirmed. If the quantity of goods is more than 30kg, it can be determined according to the actual negotiation.



Q2. Why should I choose your products?

A2. Our products are high quality and prices are competitive.



Q3: What's your payment term?

A3: We accept TT, L/C and west union.
