SGS C15000 Zirconium Copper Rod 1mm - 6mm For Resistance Welding Wheels

  • SGS C15000 Zirconium Copper Rod 1mm - 6mm For Resistance Welding Wheels
  • SGS C15000 Zirconium Copper Rod 1mm - 6mm For Resistance Welding Wheels
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO, SGS
Model Number C15000
Minimum Order Quantity 100kgs
Price 20 USD
Packaging Details Standard Seaworthy Package
Delivery Time 10~15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand CUBERYLLIUM Name SGS C15000 Zirconium Copper Rod 1mm~6mm For Welding Wheels, Resistance Welding Tips
Diameters 1mm~6mm Applications Welding Wheels, Resistance Welding Tips
Lengths 1000mm~3000mm Specific Gravity 8.89
Shape Round/Square Processing Service Bending, Welding, Decoiling, Cutting, Punching
Machining Property Good Modulus Of Elasticity 18,700 Ksi
High Light

SGS Zirconium Copper Rod

,

Zirconium Copper Rod 1mm

,

Welding Zirconium Copper Rod
Leave a Message
Product Description

SGS C15000 Zirconium Copper Rod 1mm~6mm For Welding Wheels, Resistance Welding Tips

Chemical Compositions:

Zr: 0.15-0.20%

Cu: Balance

Note: Copper plus additions equal 99.90% minimum.



Characteristics of Zirconium Copper Alloy:

Cuberylium®-150 zirconium copper is an excellent and unique copper alloy with high electrical conductivity, hardness and ductility, moderate strength and excellent resistance to high temperature softening. Heat treatable copper alloys can be obtained by adding 0.15% zirconium (Zr) to copper, which can be treated with solution and subsequently aged to produce these desirable properties.



Typical Applications:

Electrical Industry:

Resistance Welding Electrodes,

Circuit Breaker Switches, Stud Bases for Power Transmitters,

Rectifiers, Diodes, Switches, Commutators

Consumer:

Rod Extensions, Pencil-type, Light Soldering Guns, Tips

Industrial:

Connectors, Solderless Wrapped, Welding Wheels, Resistance Welding Tips



Physical Properties:

Density at 68°F: 0.321 Lbs./In.3
Specific Gravity: 8.89
Melting Point: (Liquidus): 1080°C (1976°F)
  (Solidus): 980°C (1796°F)
Coefficient of Thermal Expansion per °F: 9.4 x 10-6 (68-212°F)
  9.8 x 10-6 (68-572°F)
  11.2 x 10-6 (68-1200°F)
Electrical Conductivity at 68°F (volumetric): 85-95% IACS (aged and drawn)
  55-72% IACS (solution annealed)
Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 212
Modulus of Elasticity - Tension: 18,700 ksi

Notes:

1). the units are based upon US Customary.

2). the typical physical properties apply to age hardened products.



Lead Time:

Quantity(kilograms) 1 - 30 >30
Est. Time(days) 15 To be negotiated



Packaging&Delivering:

Standard Seaworthy Package

Cover weave bag or waterproof paper according to customer's requirements. In addition, wooden cases or wooden pallets are used to protect products from damage during delivery.



Available Shapes:

Form System Standard
  ASTM B224
Bar ASTM

B150/

B150M
Rod SAE J463
  ASTM

B150/

B150M
  SAE J461



More Products:

C18000 Rods/Bars/Plates/Sheets: UNS.C18000, CDA180, RWMA Class 3

C18150 Rods/Bars/Plates/Sheets: UNS.C18150, SAE J461,463；RWMA Class 2, ISO5182-1991

European Standards: CuCr1Zr, DIN 17666 2.1293, CW106C to EN

C18200 Rods/Bars/Plates/Sheets: UNS.C18200, RWMA Class 2, CDA18200, ISO5182-1991

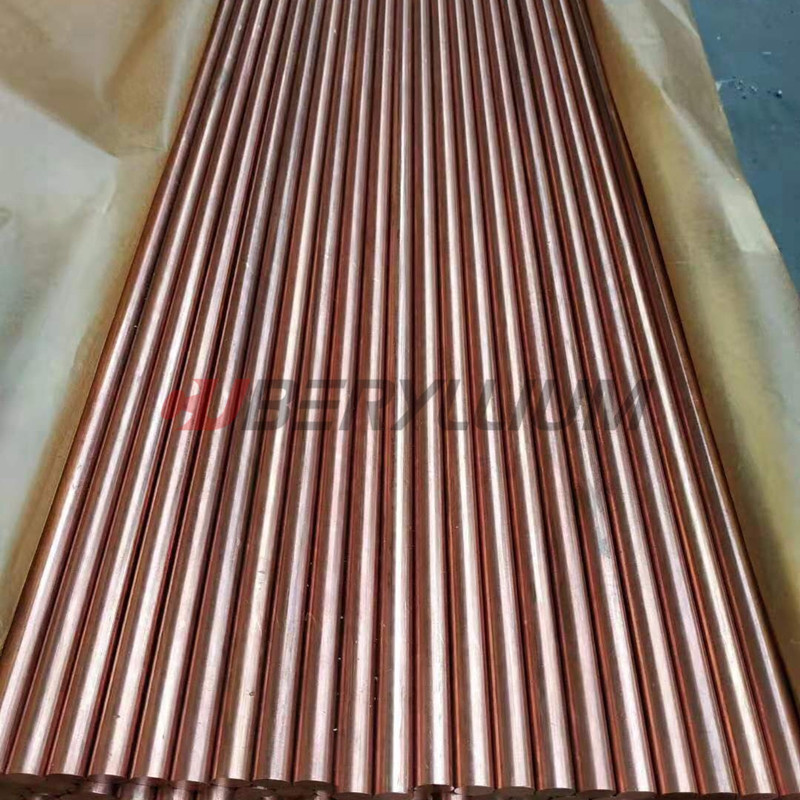

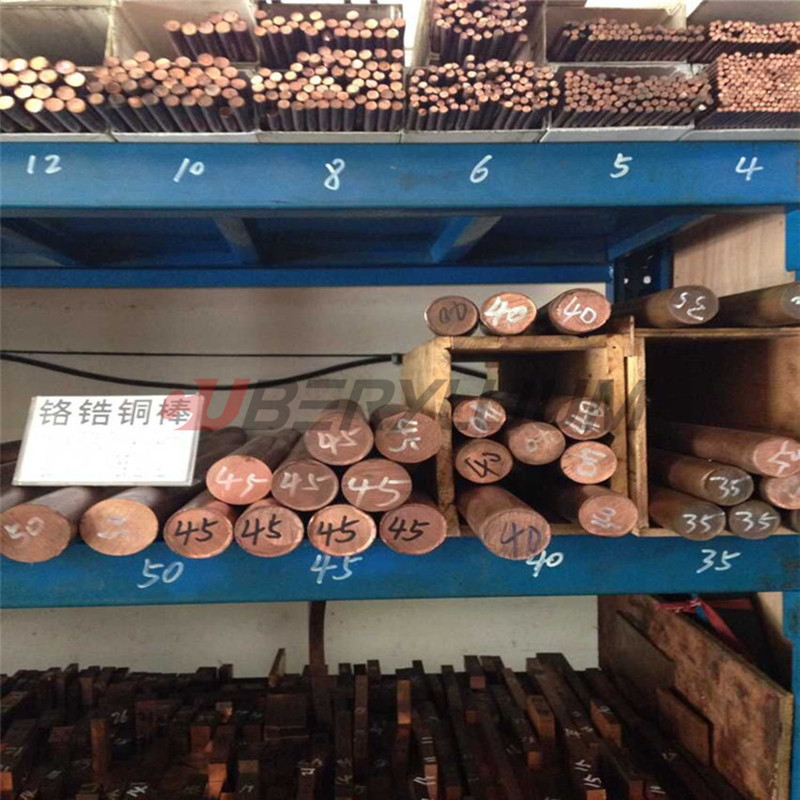

Product Photo:

SGS C15000 Zirconium Copper Rod 1mm - 6mm For Resistance Welding Wheels 0



FAQ:

Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.



Q2. Why should I choose your products?

A2. Our products are high quality and low price.



Q3. What about the lead time?

A3. Usually 7-15 days after confirm the order.
