UNS C15000 Zirconium Copper Rods For Resistance Welding Electrodes / Switches

  • UNS C15000 Zirconium Copper Rods For Resistance Welding Electrodes / Switches
  • UNS C15000 Zirconium Copper Rods For Resistance Welding Electrodes / Switches
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number C15000
Minimum Order Quantity 100kgs
Price 20USD
Packaging Details Packed into wooden case
Delivery Time Usually 10-15 days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zirconium Copper Rods Grade C15000
Specification Custom Diameter & Sizes, Random Mill Lengths Advantage With Good Electrical Conductivity
Safe Handling No Special Health Risk Machining Property Good
Density G/cm³ 8.89 Cu(Min) Standard
Export To All Over The World
High Light

C15000 Zirconium Copper Alloy

,

C15000 Zirconium Copper Rods
Leave a Message
Product Description

UNS.C15000 Zirconium Copper Rods For Resistance Welding Electrodes and Switches

Product Normal Description:

Product Name Zirconium copper rods
Model No. C15000
Standard: RWMA Class 1, SAE J461,463, CuZr, DIN 2.1580, CW120C to EN
Product Specification: Custom specification is available upon request.
Available Products: Wire, Round rods, bars, square bars, flat bars, rectanular bars, hexagon bars, plates
Delivery Time: Usually within 10~15 days
Package:

Packed in woodencases
Brand Name: CUBERYLLIUM®



Description of UNS.C15000 Zirconium Copper Alloy:

CuZr – UNS.C15000 Zirconium Copper is an excellent and unique copper alloy with high electrical conductivity, hardness, and ductility, moderate strength, and excellent resistance to softening at elevated temperatures. The addition of 0.15% zirconium (Zr) to copper results in a heat treatable copper alloy which may be solution treated and subsequently aged to produce these desirable properties. Rod is supplied from the mill in the fully aged and drawn condition so no further heat treatment is required by the fabricator. The softening temperature of properly heat treated C15000 rod exceeds 500°C as compared to unalloyed, pure copper which softens at 200°C and silver bearing coppers which soften at 350°C.



About CUBERYLLIUM®:

Hangzhou Cuberyllium Metal Technology Co.,Ltd. specialized in supplying beryllium copper alloys, high copper alloys, casting copper alloys, copper foil and other copper alloys. Our products have broadly been used in resistance welding, plastic injetion mold, aviation, shipbuilding, military industry, metallurgy, electronics industry and so on. We strive to offer high quality with competitive price due to our advanced technology and equipment.



Chemical Composition of UNS.C15000 Zirconium Copper Alloy:

Product Grade: CUBERYLLIUM ®-150 (UNS.C15000)

Zr: 0.15-0.20%
Cu: Balance
Note: Copper plus additions equal 99.9% minimum.



Typical Physical Properties of UNS.C15000 Zirconium Copper Alloy:

Specific Gravity: 8.89

Density at 68°F: 0.321 Lbs./In.3

Melting Point (Liquidus): 1080°C (1976°F)
Melting Point (Solidus): 980°C (1796°F)
Coefficient of Thermal Expansion per °F: 9.4 x 10-6 (68-212°F), 9.8 x 10-6 (68-572°F), 11.2 x 10-6 (68-1200°F)
Electrical Conductivity at 68°F (volumetric): 85-95% IACS (aged and drawn), 55-72% IACS (solution annealed)
Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 212
Modulus of Elasticity - Tension: 18,700 ksi

Note:
1). the units are based upon US Customary.
2). the typical physical properties apply to age hardened products.



Applications of UNS.C15000 Zirconium Copper Alloy:

 Electrical Industry: Resistance Welding Electrodes, Circuit Breaker Switches, Stud Bases for Power Transmitters, Rectifiers, Diodes, Switches, Commutators
Consumer: Rod Extensions, Pencil-type, Light Soldering Guns, Tips
Industrial: Connectors, Solderless Wrapped, Welding Wheels, Resistance Welding Tips

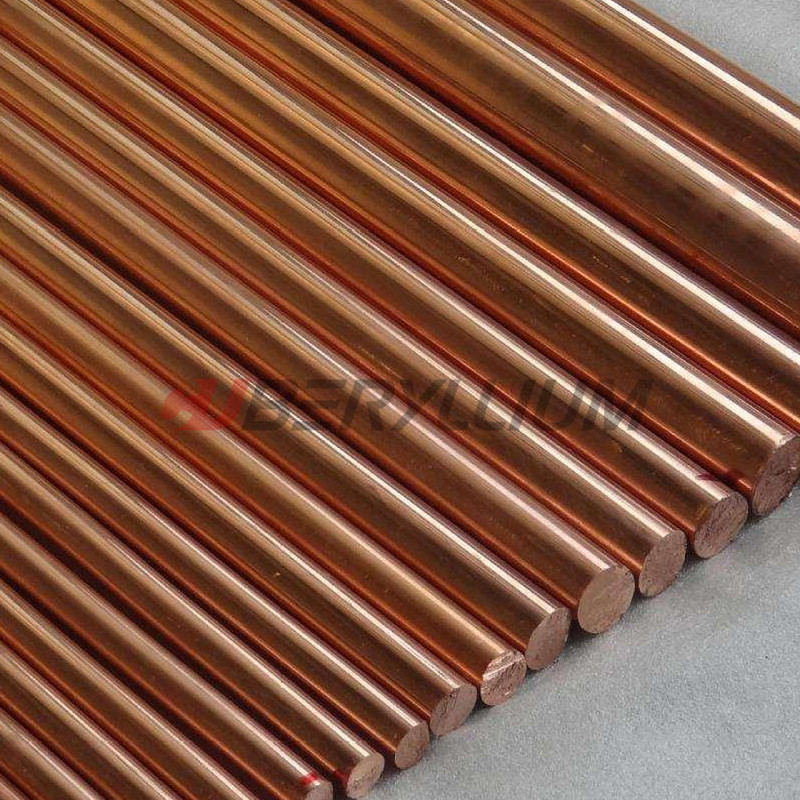

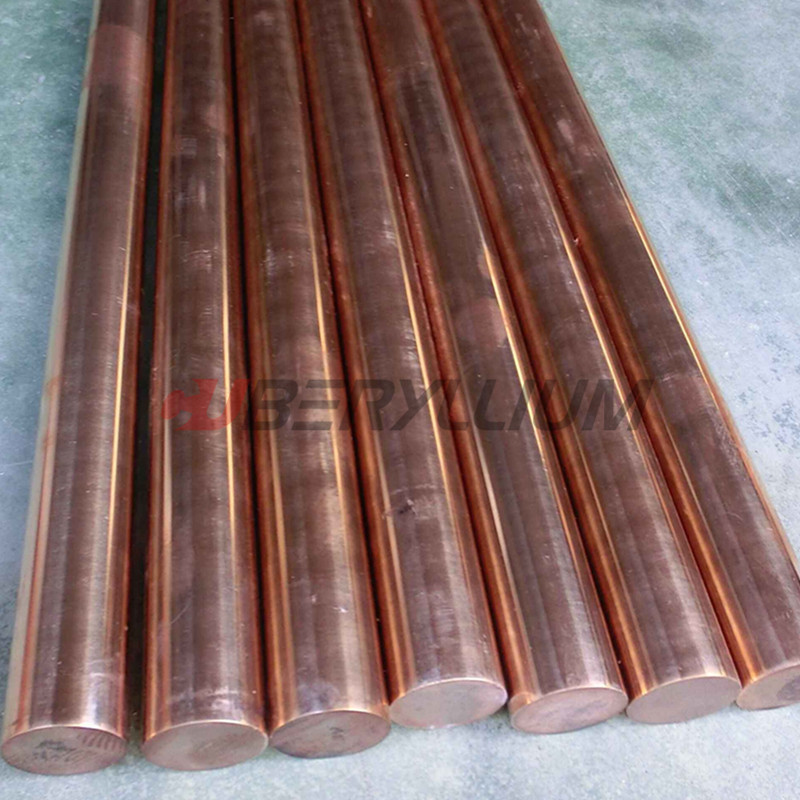

Product Photos:

UNS C15000 Zirconium Copper Rods For Resistance Welding Electrodes / Switches 0
