CuCr1-UNS.C18200 Chromium Copper Alloys For Industrial And Electrical Industry

  • CuCr1-UNS.C18200 Chromium Copper Alloys For Industrial And Electrical Industry
  • CuCr1-UNS.C18200 Chromium Copper Alloys For Industrial And Electrical Industry
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number CuCr1-UNS.C18200
Minimum Order Quantity 100kgs
Price 18USD
Packaging Details Packed into wooden case
Delivery Time Usually 10-15 days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Chromium Copper Alloys Grade CuCr1-UNS.C18200
Specification As The Requirement Of Customers' Advantage With Good Electrical Conductivity
Safe Handling No Special Health Risk Machining Property Good
Density G/cm³ 8.89 Cu(Min) Standard
Export To All Over The World
High Light

UNS C18200 Chromium Copper Alloys

,

Electrical Industry Chromium Copper Alloys

,

Industrial Chromium Copper Alloys
Leave a Message
Product Description

CuCr1-UNS.C18200 Chromium Copper Alloys For Industrial And Electrical Industry

Product Normal Description:

Product Name Chromium Copper Alloys
Grade: CuCr1 UNS.C18200
Standard: RWMA Class 2, DIN 2.1291, CW105C to EN, CuCr.
Product Specification: we could provide beryllium copper alloy according customers' requirement.
Delivery Time: Usually within 10~15 days
Package:

Packed in woodencases
Product Brand: CUBERYLLIUM®



CuCr1 – UNS.C18200 Chromium Copper is a heat treatable copper alloy offering good electrical conductivity, resistance to softening at elevated temperatures and good strength and hardness. This combination of properties makes C18200 one of the preferred resistance welding electrode materials for a variety of applications. Nominally composed of 99.1% copper and 0.9% chromium, this heat treatable alloy can be brought to its softest condition by annealing it at 1000°C (1850°F) for one-half hour at temperature, then rapidly quenching it in water. In this annealed condition, the alloy is ductile and easily formed, and has an electrical conductivity of about 40% IACS.



Chemical Composition of CuCr1-UNS.C18200 Chromium Copper Alloys:

Product Grade: CUBERYLLIUM ®-182 (UNS.C18200)

Cr 0.60-1.20%
Cu: Balance
Note: Copper plus additions equal 99.50% minimum.



Typical Physical Properties of CuCr1-UNS.C18200 Chromium Copper Alloys:

  Metric Units Imperial Units
Density 8.89 gm/cm³ @ 20°C 0.321 lb/in³ @ 68°F
Specific Gravity 8.89 8.89
Melting Point (Liquidus) 1075°C 1967°F
Melting Point (Solidus) 1070°C 1958°F
Coefficient of Thermal Expansion 17.6 x 10 -6 / °C (20-100°C) 9.8 x 10-6 (77-212°F)
Themal Conductivity 323.6 W/m. °K @ 20°C 187.0 BTU/ft²/ft/hr/°F @ 68°F
Electrical Conductivity 0.468 MegaSiemens/cm @ 20°C 80% IACS@ 68°F
Modulus of Elasticity (tension) 117,000 MPa 17,000ksi

Note:

1: the units are based upon US Customary.

2: the typical physical properties apply to age hardened products.



Typical Uses For CuCr1-UNS.C18200 Chromium Copper Alloys:
Industrial: Resistance Welding Machine Electrodes, Resistance Welding Equipment, Plastic Mold Components, Flash Welding Electrodes, Electrode Holder Jaws, Seam Welding Wheels, Wear Plates on Heavy Equipment, Heat Sinks, Spot Welding Tips, Molds
Electrical Industry: Cable, Connector, Thermal Conductors, Switch Gears, Electrical Connector, Circuit Breaker Parts, Switch Contacts, Electric Motor and Generator Components, Parts for electronic Devices
Consumer: Rod Extensions, Pencil-type, Light Soldering Guns, Tips

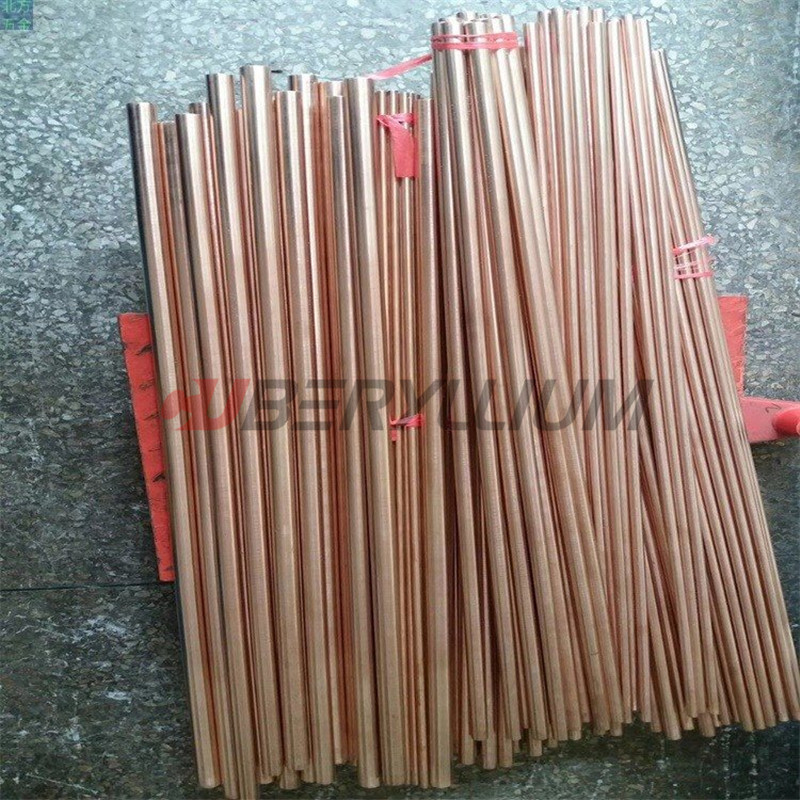

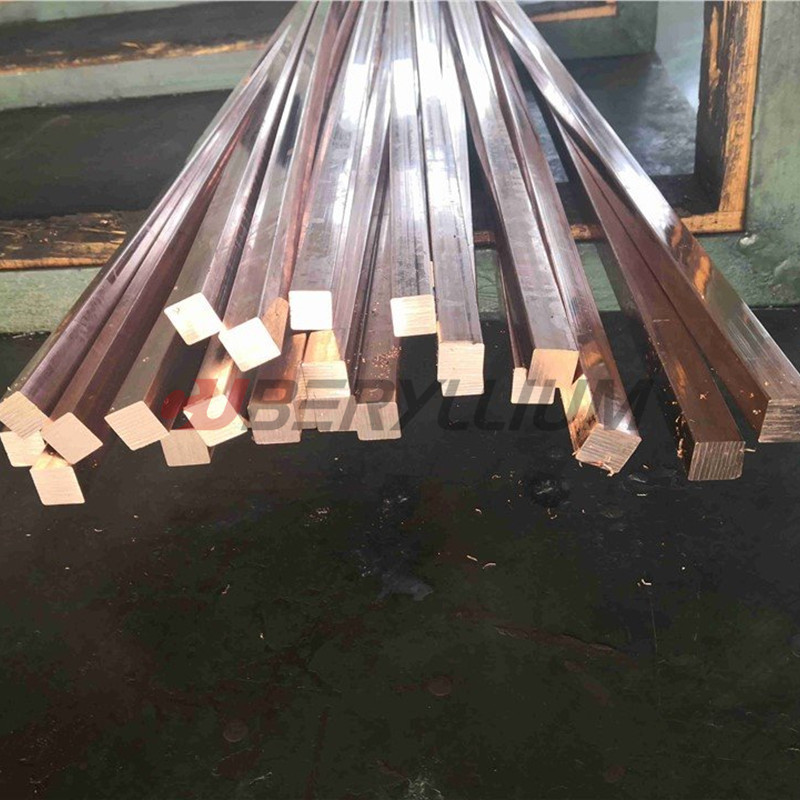

Product Photos:

CuCr1-UNS.C18200 Chromium Copper Alloys For Industrial And Electrical Industry 0
