C18150 CuCr1Zr Chromium Zirconium Copper Bars With High Electrical And Thermal Conductivity

  • C18150 CuCr1Zr Chromium Zirconium Copper Bars With High Electrical And Thermal Conductivity
  • C18150 CuCr1Zr Chromium Zirconium Copper Bars With High Electrical And Thermal Conductivity
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number C18150 CuCr1Zr
Minimum Order Quantity 100kgs
Price 20USD
Packaging Details Packed into wooden case
Delivery Time Usually 10-15 days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Chromium Zirconium Copper Bars Grade C18150 CuCr1Zr
Specification As The Requirement Of Customers' Advantage With High Electrical And Thermal Conductivity
Safe Handling No Special Health Risk Machining Property Good
Density G/cm³ 8.89 Cu(Min) Standard
Export To All Over The World
High Light

c18150 copper chromium zirconium

,

c18150 chromium zirconium copper
Leave a Message
Product Description

C18150 CuCr1Zr Chromium Zirconium Copper Bars With High Electrical And Thermal Conductivity

Product Normal Description:

Product Name Chromium Zirconium Copper Bars
Grade: C18150 CuCr1Zr
Standard: RWMA Class 2, DIN 2.1293, CW106C to EN
Product Specification: we could provide beryllium copper alloy according customers' requirement.
Delivery Time: Usually within 10~15 days
Package:

Packed in woodencases
Product Brand: CUBERYLLIUM®



CuCr1Zr – UNS.C18150 Chromium Zirconium Copper C18150 is an excellent and unique copper alloy with high electrical conductivity, hardness, and ductility, moderate strength, and excellent resistance to softening at elevated temperatures. The addition of 0.1% zirconium (Zr) and 1.0% chromium (Cr) to copper results in a heat treatable alloy which may be solution treated and subsequently aged to produce these desirable properties. Rod is usually supplied from the mill in the fully aged and drawn condition so no further heat treatment is required by the fabricator. The softening temperature of properly heat treated C18150 rod exceeds 500°C as compared to unalloyed pure copper which softens at 200°C, and silver bearing coppers which soften at 350°C.

Furthermore, many evidences shows that C18150 can provide less sticking and resisting deformation longer than its C18200 counterpart in some specific situatons.



Chemical Composition of C18150 CuCr1Zr Chromium Zirconium Copper Alloys:

Product Grade: CUBERYLLIUM ®-815 (UNS.C18150)

Cr 0.50-1.50%
Zr: 0.05-0.25%
Cu: Balance
Note: Copper plus additions equal 99.7% minimum.



Typical Physical Properties of C18150 CuCr1Zr Chromium Zirconium Copper Alloys:

  Metric Units Imperial Units
Density 8.89 gm/cm³ @ 20°C 0.321 lb/in³ @ 68°F
Specific Gravity 8.89 8.89
Melting Point (Liquidus) 1080°C 1976°F
Melting Point (Solidus) 1070°C 1958°F
Coefficient of Thermal Expansion 16.45 x 10 -6 / °C (20-300°C) 9.5 x 10 -6 / °F (68-392°F)
Themal Conductivity 323.9 W/m. °K @ 20°C 187.0 BTU/ft²/ft/hr/°F @ 68°F
Electrical Conductivity 0.464 MegaSiemens/cm @ 20°C 80% IACS@ 68°F
Modulus of Elasticity (tension) 117,200 MPa 17,000ksi

Note:

1: the units are based upon US Customary.

2: the typical physical properties apply to age hardened products.



Typical Uses For C18150 CuCr1Zr Chromium Zirconium Copper Alloys:
Industrial: Welding Wheels, Tips and Rod extensions for resistance seam and spot welding
Electrical Industry: Resistance Welding Electrodes, Circuit Breaker Switches.
Consumer: Rod Extensions, Pencil-type, Light Soldering Guns, Tip



Product Photos:

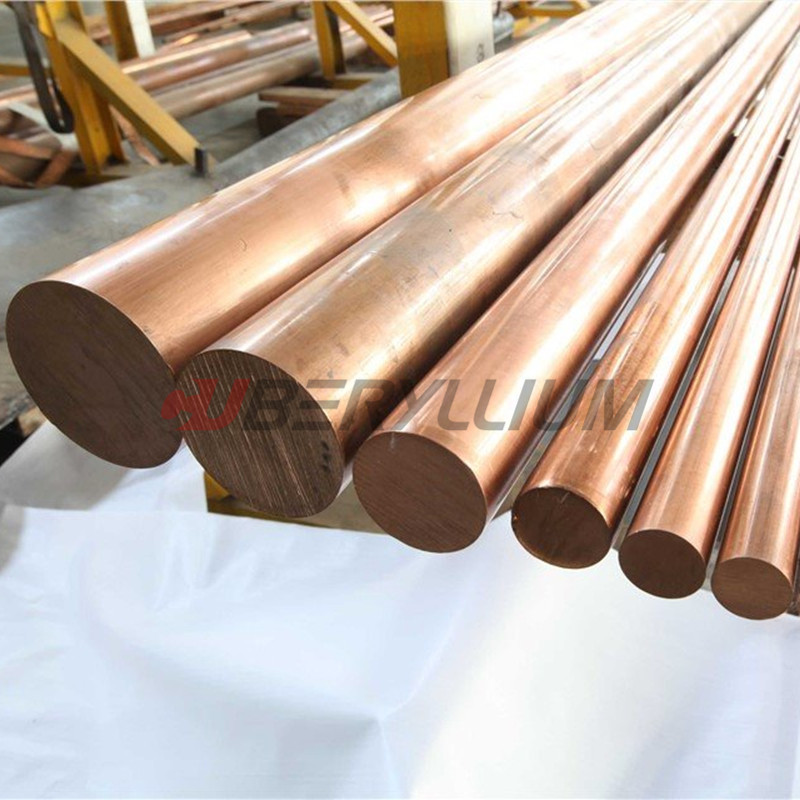

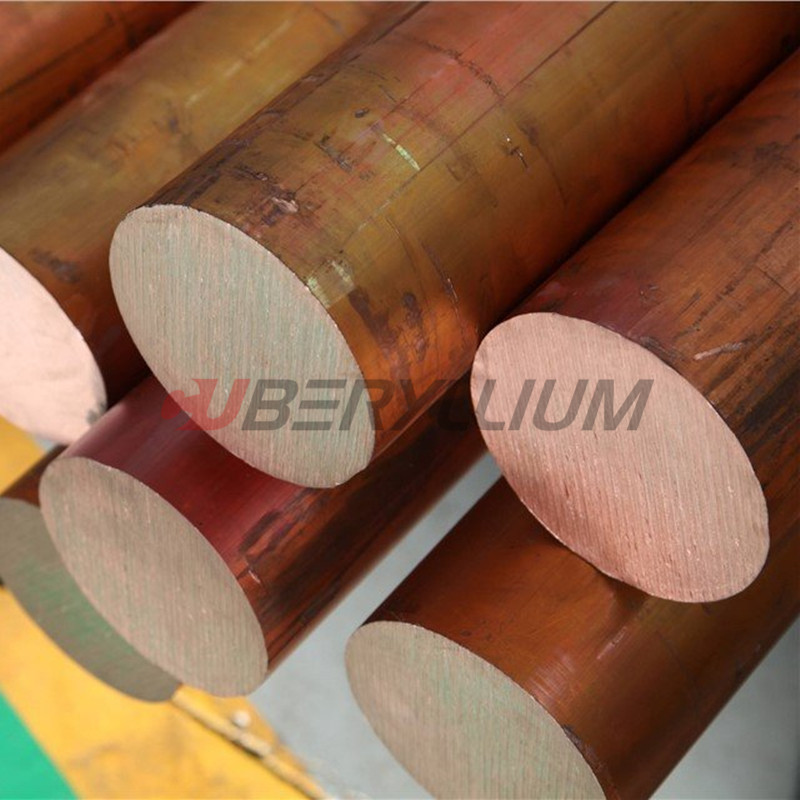

C18150 CuCr1Zr Chromium Zirconium Copper Bars With High Electrical And Thermal Conductivity 0
