Beryllium Copper Foil Alloy 25 C17200 1/2H Temper Thickness 0.254mm X 200mm

Place of Origin China
Certification ISO,SGS
Model Number BeCu Alloy 25 C17200
Minimum Order Quantity 50
Price 29USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Foil BeCu Alloy 25 C17200 Max Coil Wt. 2T
Thinnest Thick. 0.254mm Width 200mm
Standard ASTM B194 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Temper 1/2H
Coil Weight Material Can Be Coiled In Apporximately 12kg Coils.
High Light

1/2H Temper Beryllium Copper Foil


C17200 Beryllium Copper Foil


0.254mm Beryllium Copper Foil

Leave a Message
Product Description

Foil BeCu Alloy 25 C17200 1/2H Temper Thickness 0.254mm X 200mm For India Market

More Details For Product Foil BeCu Alloy 25 C17200 1/2H Temper Thickness 0.254mm x 200mm:

Product Name Beryllium copper foil
Grade Becu Alloy 25, C17200
End Product Form Strip, Foil, Coil
Standard ASTM B194
State of product 1/2H


Application Industrial, Electrical Industry
MOQ 30kgs

Cuberyllium's Product Range:
Cuberyllium is one of the eminent manufacturer and exporter of high Grade Beryllium Copper Alloy.
We offer a wide assortment of Beryllium Copper Alloy 25 alloy, also known as copper beryllium, becu or beryllium bronze. it is a metal alloy of copper and 0. 5 to 2% beryllium, and sometimes with other alloying elements. Possessing significant metalworking and operating performance qualities it is widely demanded by engineering, electrical and electronics industries.


Most Commonly Temper Used for BeCu Alloy 25 C17200:
C17200 Beryllium Copper Alloys Rods/Bars/Tubes: A(TB00),H(TD04),AT(TF00),HT(TH04)
C17200 Beryllium Copper Alloys Strips: A(TB00),1/4 H(TD01),1/2 H(TD02),H(TD04)
C17200 Beryllium Copper Alloys Sheets: A(TB00),1/4 H(TD01),1/2 H(TD02),H(TD04),AT(TF00)
C17200 Beryllium Copper Alloys Wires: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)
C17200 Beryllium Copper Alloys Plates: A(TB00),H(TD04),AT(TF00),HT(TH04)

Physical Properties of BeCu Alloy 25 C17200:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980
Chemical Composition of
BeCu Alloy 25 C17200:

Alloy number Be Ni Co Ni Co Fe Be Ni Co Fe Cu
RWMA Class 4 / Alloy 25 1.8-2.0 ≥0.2 ≤0.6 ≥99.5


Mateial Introduction of BeCu Copper Alloys:
Beryllium copper and its variety of alloys are utilized in very specific and often tailor-made applications such as oilfield tools, aerospace landing gears, robotic welding, and mould making applications. Additional non-magnetic properties make it ideal for down-hole wireline tools. These specific applications are the reason this copper is known as spring copper and other various names.


Features of BeCu Copper Alloys:

  1. High strength
  2. Durability
  3. Toughness

Other Details:
Dimensionally accurately
Corrosion Resistant
Good Conductivity
High tensile strength
Strong Resonance
Abrasion Property


Specifications of Becu Copper Alloy we could provide:
Grade: CuBe2-UNS C17200, CuBe2Pb-UNS C17300, CuCo2Be-UNS C17500, CuNi2Be-UNS.C17510, CuCo1Ni1Be
Test Certificate: MTC, Lab TC from Govt. Approved Lab with Third Party Inspection

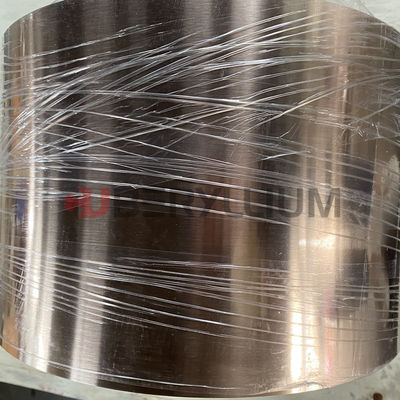

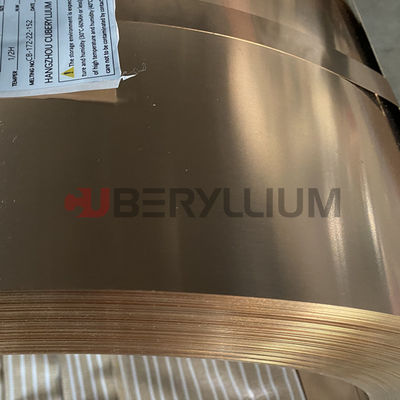

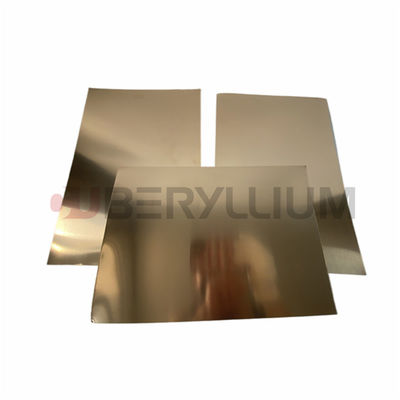

Product Photo of Foil BeCu Alloy 25 C17200:
Beryllium Copper Foil Alloy 25 C17200 1/2H Temper Thickness 0.254mm X 200mm 0Beryllium Copper Foil Alloy 25 C17200 1/2H Temper Thickness 0.254mm X 200mm 1
Application of RWMA Class 4/Alloy 25 Beryllium Copper Alloy:
Temperature control switch
Switch/micro switch/micro-motors brush
Strong spring/the thermostat spring/all kinds of spring piece
