Copper Beryllium BrB2 BrBNT1.9 Bronze Ribbon / Tape / Strip 0.02mm To 2mm

  • Copper Beryllium BrB2 BrBNT1.9 Bronze Ribbon / Tape / Strip 0.02mm To 2mm
  • Copper Beryllium BrB2 BrBNT1.9 Bronze Ribbon / Tape / Strip 0.02mm To 2mm
  • Copper Beryllium BrB2 BrBNT1.9 Bronze Ribbon / Tape / Strip 0.02mm To 2mm
  • Copper Beryllium BrB2 BrBNT1.9 Bronze Ribbon / Tape / Strip 0.02mm To 2mm
  • Copper Beryllium BrB2 BrBNT1.9 Bronze Ribbon / Tape / Strip 0.02mm To 2mm
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number БрБ2,БрБНТ1.9
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name БрБ2 Bronze Ribbon Bronze Tape Max Coil Wt. 2T
Thinnest Thick. 0.02mm To 2mm Width 3-250mm
Standard ГОСТ 1789-70 Heat Treatment Of Aging Age 3 Hrs At 600°F (315 C).
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
Hardness >170 Tensile Strength >590 Mpa
Normal Be% 1.8~2.1% Elongation Percent >3%
Electrical Conductivity 15~19% IACS
High Light

Copper Beryllium Bronze Strip

,

Copper Beryllium Bronze Tape

,

Bronze Beryllium Copper Strip
Leave a Message
Product Description

Copper Beryllium БрБ2 БрБНТ1.9 Bronze Ribbon Bronze Tape

Product Description:

Type Bronze ribbon/bronze tape
Material Grade

БрБ2(Qbe2.0),БрБНТ1.9(Qbe1.9)
Size Range Thickness 0.02mm to 2mm
Width

Normal: 200mm,250mm

Slitting 3-250mm(Depend on the thickness)



Properties of Copper Beryllium БрБ2 БрБНТ1.9:

Copper-Beryllium БрБ2 БрБНТ1.9 (often called Qbe2.0, Qbe1.9) is the copper alloy with the highest mechanical properties ( its strength can reach 1500 Mpa after work hardening).
Its excellent mechanical properties together with good electrical conductivity (approximately 25 % IACS ) and thermal conductivity,
anti-magnetic properties, good wear and resistance to most corrosive environments and good low temperature resistance allow it to be used in most industries.



Some Applications of Copper Beryllium БрБ2 БрБНТ1.9
Electro-mechanics Connectors
Aeronautics Injuected plastics
Mechanics

Seam weldind discs (wheels)



Chemical Composition of Copper Beryllium БрБ2 БрБНТ1.9:

CUBERYLLIUM® Brand

Gost-

Number

 Beryllium Al Ni Fe Cu Si
Cuberyllium-Qbe2 Qbe2 1.80-2.10 0.15 max 0.2~0.5

0.15

max

 Rest.

0.15

max


Typical Physical Properties of Copper Beryllium БрБ2 БрБНТ1.9:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Useful Qualities of Copper Beryllium БрБ2 БрБНТ1.9:

high strength properties
electrical and thermal conductivity

wear resistance

has higher corrosion resistance (therefore, the material is often used in corrosive environments)

counteracts damage from varying temperature changes

It has high mechanical properties and tensile strength

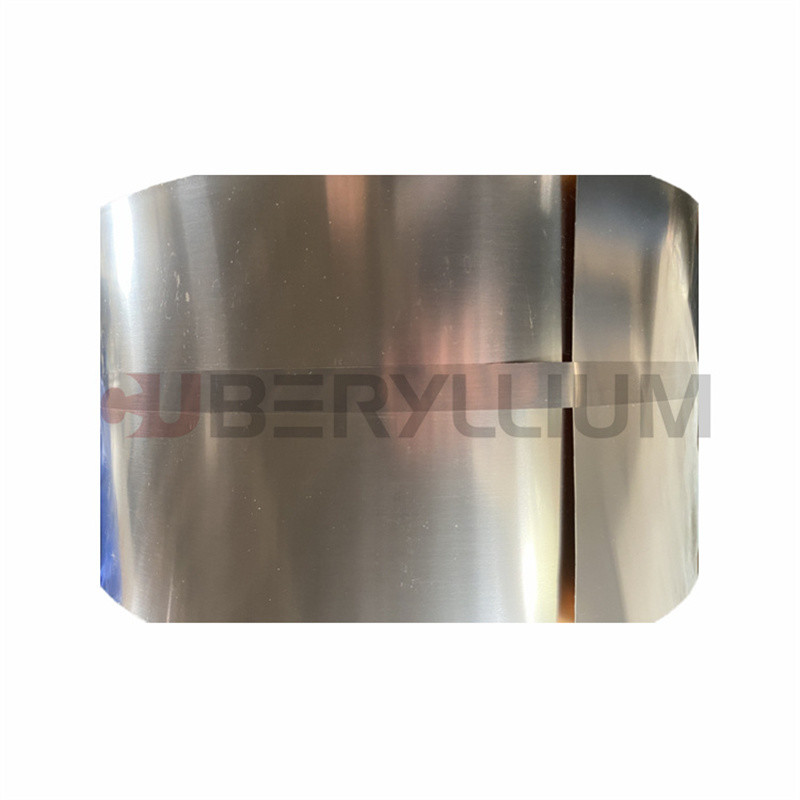

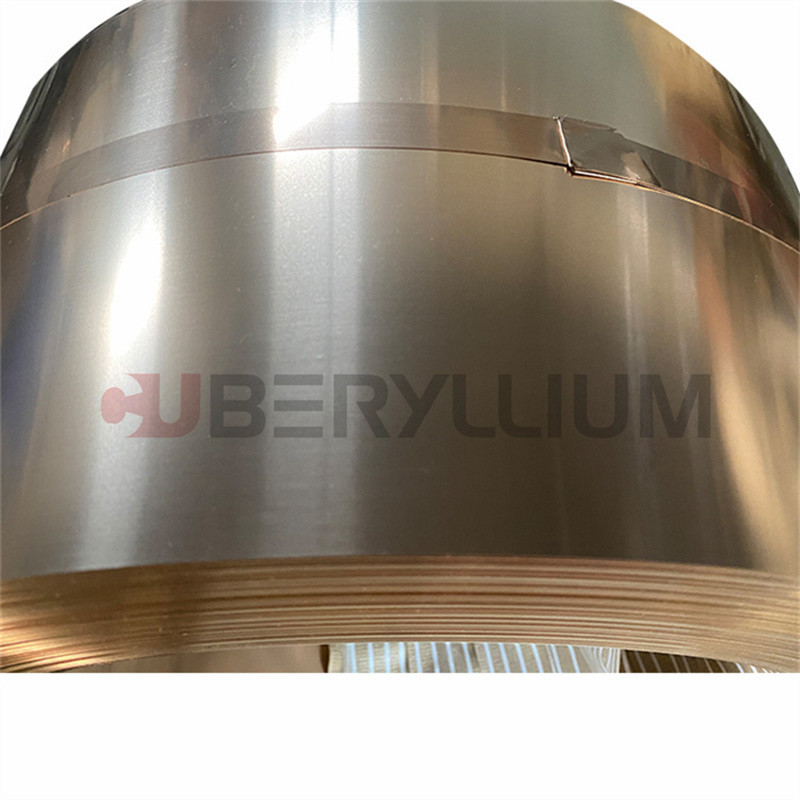

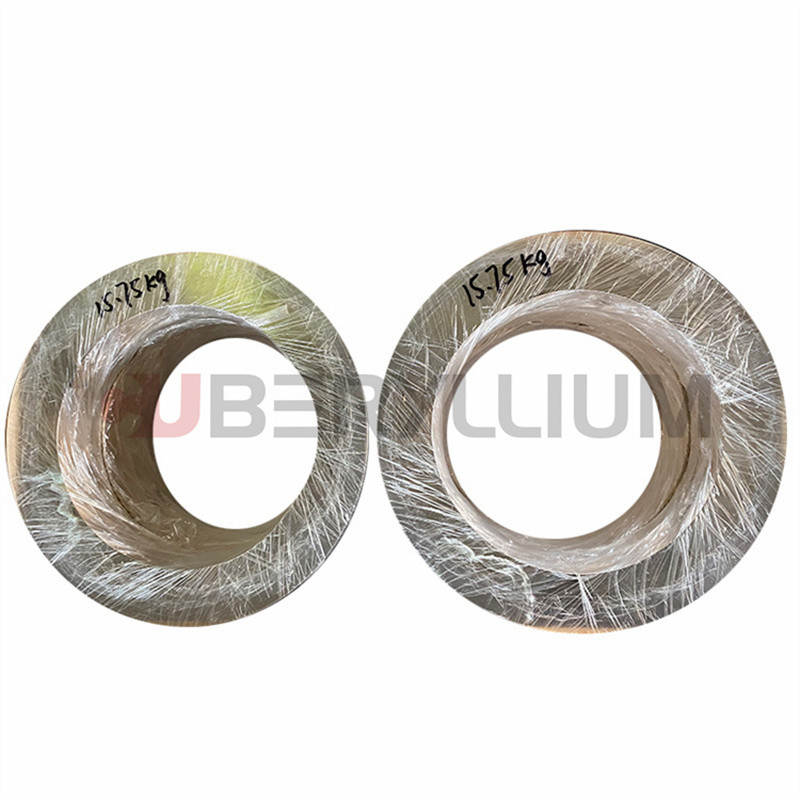

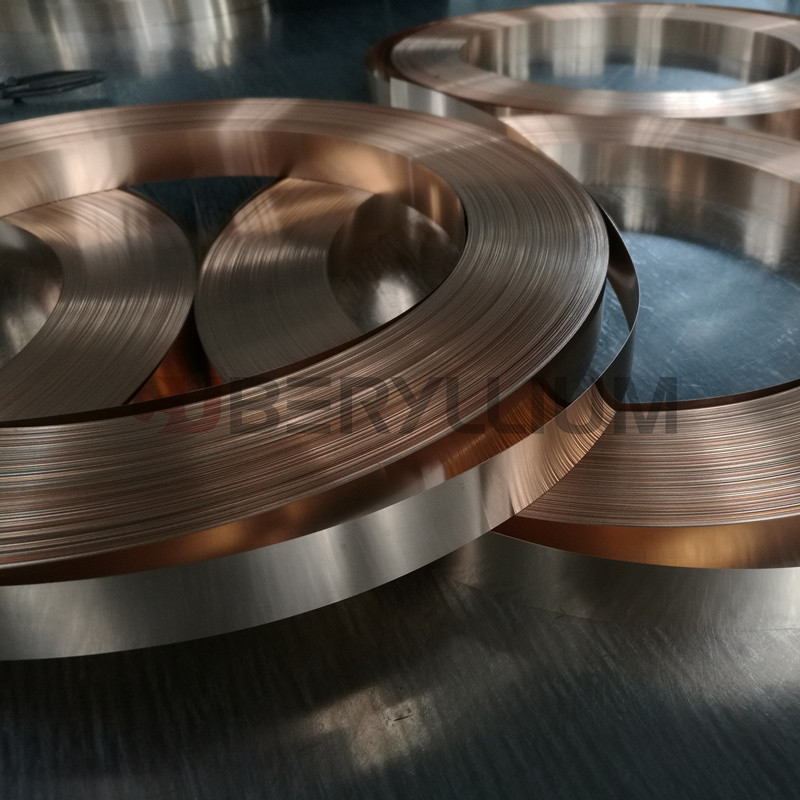

Product Photo:

Copper Beryllium BrB2 BrBNT1.9 Bronze Ribbon / Tape / Strip 0.02mm To 2mm 0Copper Beryllium BrB2 BrBNT1.9 Bronze Ribbon / Tape / Strip 0.02mm To 2mm 1



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.

A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
