Beryllium Copper Foil Strip Ultimate Tensile Strength For Micro Switch

  • Beryllium Copper Foil Strip Ultimate Tensile Strength For Micro Switch
  • Beryllium Copper Foil Strip Ultimate Tensile Strength For Micro Switch
  • Beryllium Copper Foil Strip Ultimate Tensile Strength For Micro Switch
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C1720R
Minimum Order Quantity 50
Price 40USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper C17200 Industrial Strips Max Coil Wt. 2T
Thinnest Thick. 0.2mm Width 200mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Temper XHM
High Light

Micro Switch Beryllium Copper Strip

,

Micro Switch Beryllium Copper Foil Strip

,

0.2mm Beryllium Copper Strip
Leave a Message
Product Description

Beryllium Copper Foil Strip C1720R-XHM With Ultimate Tensile Strength For Micro Switch

Product Normal Description:

Name Beryllium copper foil strip
Grade C1720R
End Product Form Strips/Foil
Standard ASTM B194
State of product XHM Temper
Size

Thickness: 0.2mm

Width: 200mm
Professional Use Used For Micro Switch



Chemical Composition of Beryllium Copper C17200 Copper Alloy:

(% Max., unless shown as range or Min.)

Chemical Name % by Weight
Be 1.00-2.00
Co+Ni 0.20% Min
Co+Ni+Fe 0.60% Max
Pb 0.02% Max
Cu Rem.
Note: Copper plus additions equal 99.5% Minimum.



Introduction of Beryllium Copper C17200 Alloy:

Beryllium copper UNS.C17200 is also known as various names like spring copper, beryllium bronze, and copper beryllium.

Beryllium copper combines non-magnetic as well as non-sparking properties.

It has unique machining and metalworking qualities.

Beryllium copper is applicable in numerous applications because of its unique features

It is a flexible, weldable, and machinable alloy which resistant to non-oxidizing acids, plastic decomposition products, abrasive wear and galling.

It can handle high-temperature heat to improve its strength, durability, and electrical conductivity.

These properties allow it to fit in the various criteria of essential applications.



Temper Designations of Beryllium Copper C17200 Copper Strips:

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Beryllium Copper C17200 Copper Strips
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28

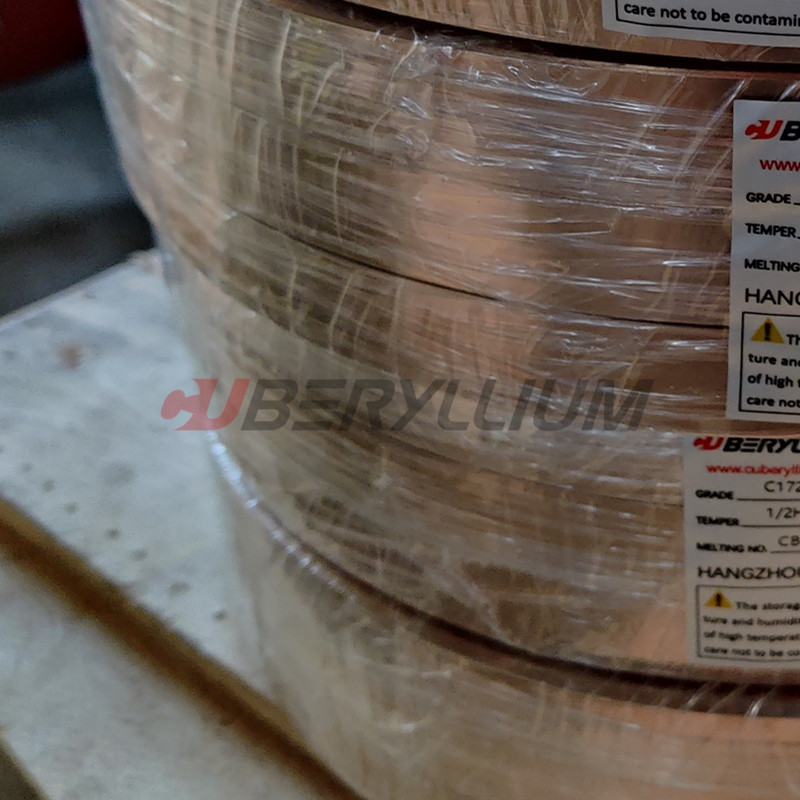

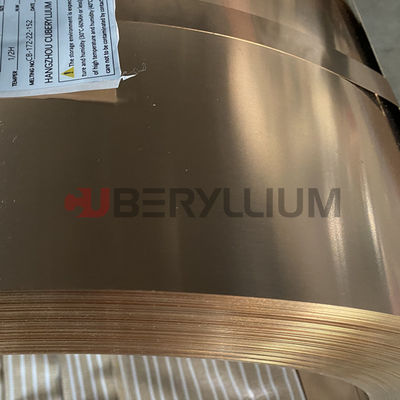

Product Photo of Beryllium Copper C17200 Copper Strips:

Beryllium Copper Foil Strip Ultimate Tensile Strength For Micro Switch 0



About CUBERYLLIUM:

Cuberyllium is a factory specialized on Bronze Alloy Products for more than 20 years.
Cuberyllium has Casting, Die Forging, Extrusion and Heat Treatment within our plants. The products manufactured have many critical applications from autmotive to marine industry, from electrical industry to aviation.

Our advantages:

At Cuberyllium, we use extensive knowledge to determine the best method of manufacture for your products. We create the perfect product flow dependent on our customers demanding needs. This allows for us to insure all metallurgical, mechanical & physical properties are met. And of course, the quality is second to none. Contact with us to allow our process engineers the opportunity to create product that exceeds your needs.



Sales Contact:

If you have any requirement of beryllium copper alloys, including beryllium copper strips, beryllium copper plates, beryllium copper rods, beryllium copper billets and so on, just feel free to contact with following information:

Email: sales@cuberyllium.com

What'app: +86 17376550856
