Alloy 25 Beryllium Bronze Coil TD02 Copper 0.254MMx8.2MM

Place of Origin China
Certification ISO,SGS
Model Number Alloy 25
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Alloy 25 Beryllium Bronze Coil Max Coil Wt. 2T
Thinnest Thick. 0.254mm Width 8.2mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Temper 1/2H
Coil Weight Material Can Be Coiled In Apporximately 12kg Coils.
High Light

Alloy 25 Beryllium Bronze Coil


Beryllium Copper Alloy 25 Strips


TD02 Beryllium Copper Coil

Leave a Message
Product Description

Alloy 25 Beryllium Bronze Coil TD02 Berryllium Copper 0.254MM*8.2MM Coil

Product Normal Description:

Product Name Beryllium copper Alloy 25 strips
Grade C17200
End Product Form Strips/Tape
Standard ASTM B194
State of product Half Hard(TD02)

Thickness: 0.254mm

Width: 8.2mm

Application Industrial


Introduction of Alloy 25 Beryllium Bronze Alloy:

Beryllium Copper is an alloy that is machinable, weldable and ductile. Alloy 25 copper rod is highly resistant to abrasive wear, plastic decomposition products, galling and to non-oxidizing acids like carbonic acid and hydrochloric acid. Beryllium Copper C17200 bar is the strongest and the most widely used of all the Beryllium Copper materials. Beryllium Copper C172 round bars consists of 1.8 - 2% Beryllium. In Europe, Beryllium Copper C172 Bar is known as CuBe2 Bar. C17200 beryllium copper round bar is used in many application areas such as aerospace bushings, drilling tool components in the oil and gas industry, cavities and cores in injection mold tooling and bushings and plates in heavy equipment wear.


Industrial Uses for Alloy 25 Beryllium Bronze Alloy:
Because of their high thermal conductivity, excellent hardness, and high-temperature strength, copper alloys are frequently used for applications requiring high electrical conductivity and superior mechanical strength.
It is its strength that makes this alloy a great choice when you require wear and corrosion resistance and excellent bearing properties.


Cuberyllium's Available Forms for Alloy 25 Beryllium Bronze Alloy:

Available forms are beryllium copper welding rod, beryllium copper wire, beryllium copper bar, beryllium copper bushings, beryllium copper coil, beryllium copper drill bits, beryllium copper electrodes, beryllium copper flat bar, beryllium copper fasteners, beryllium copper gasket, beryllium copper ingot, beryllium copper nuts, beryllium copper round bar, beryllium copper sheet


Chemical Composition of Alloy 25 Beryllium Bronze Alloy:

Be 1.80-2.00%
Co+Ni 0.20% Min.
Co+Ni+Fe 0.60% Max.
Others 0.50% Max.
Cu Balance
Note Cu+Be+Co+Ni+Fe:99.50% Min

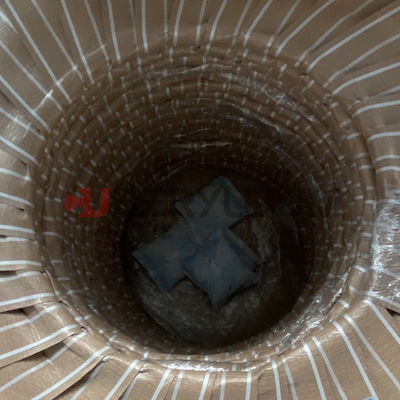

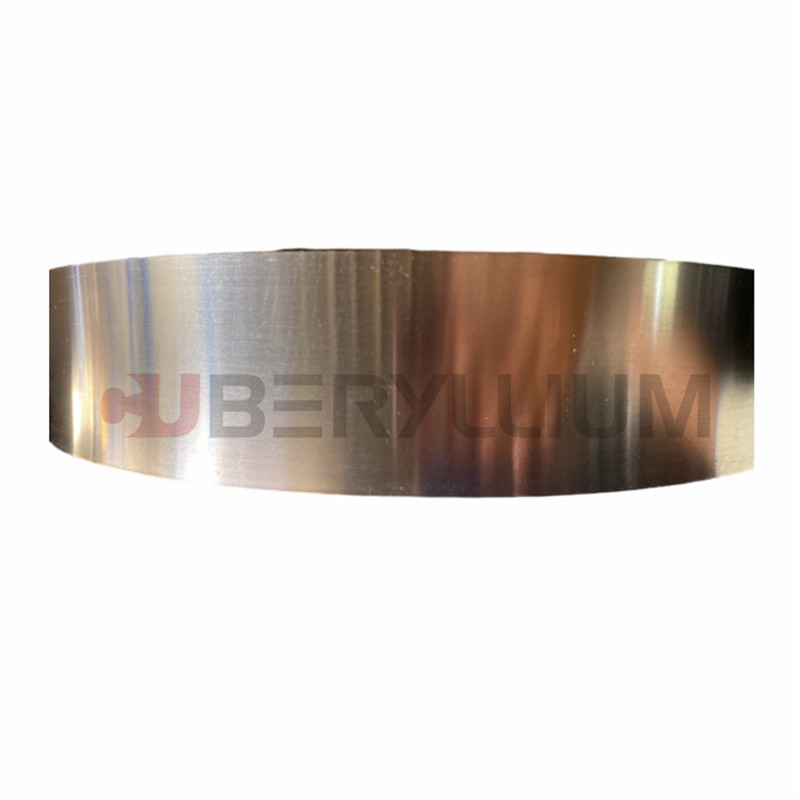

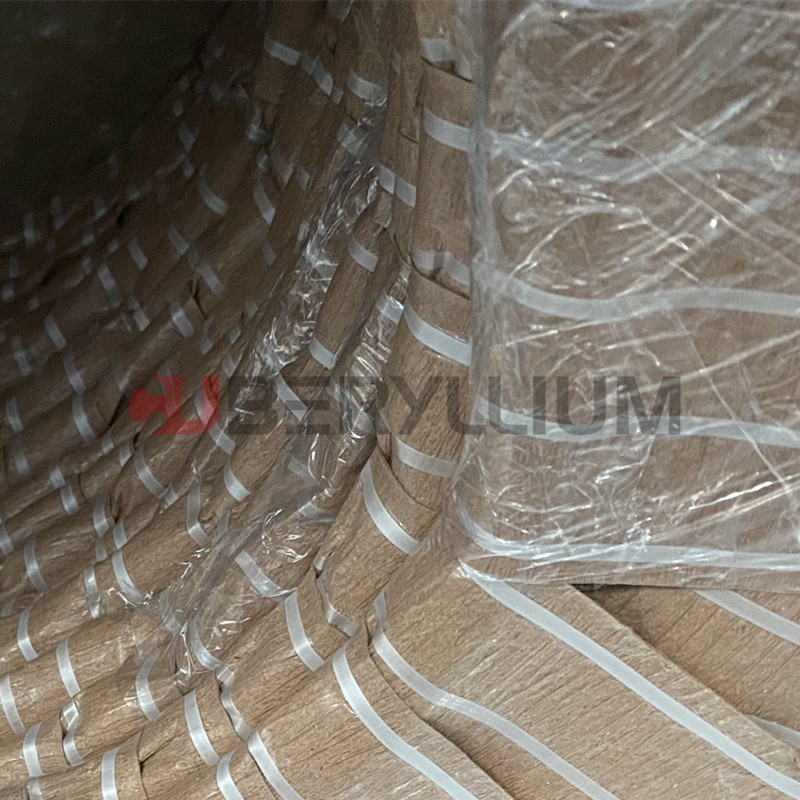

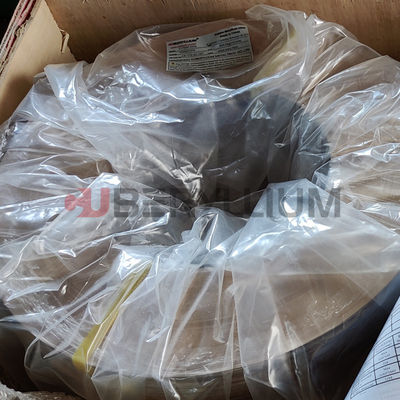

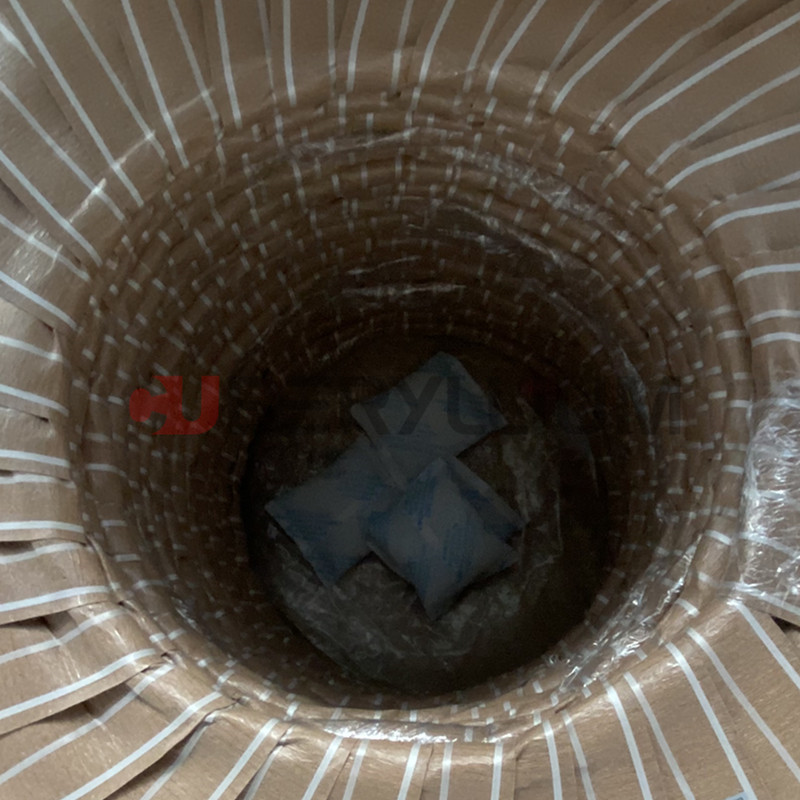

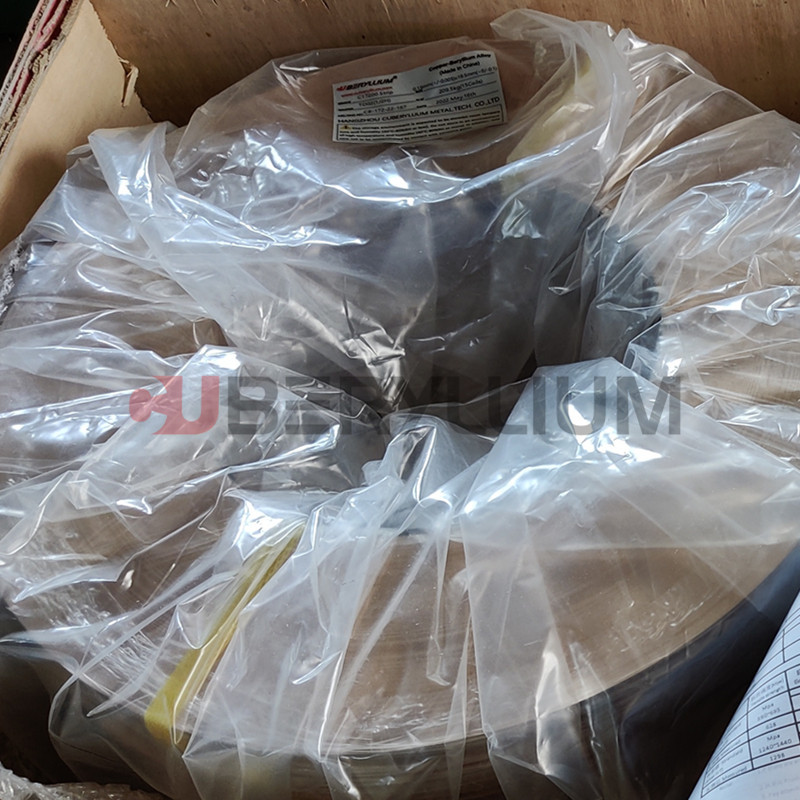

Product Photo of Alloy 25 Beryllium Bronze Coils:

Alloy 25 Beryllium Bronze Coil TD02 Copper 0.254MMx8.2MM 0Alloy 25 Beryllium Bronze Coil TD02 Copper 0.254MMx8.2MM 1


Excellent Properties of CuBe2 Copper Alloys:

Alloy 25 Beryllium Bronze Coil TD02 Copper 0.254MMx8.2MM 2

Tensile Strength
Beryllium Copper can attain the tensile strength. of 1500N/ mm2 through precipitation hardening and can withstand very high bending stress.
Corrosion Resistance
Beryllium Copper has excellent corrosion resistance, nearly the same as Nickel Silver.

Electrical Conductivity
The electrical conductivity of beryllium copper ranges from 20 to 70 %IACS, depending on alloy and temper.


Age Hardenable Tempers
This term means the material can be strengthened by simple heat treatment after stamping or forming. The strength level will be roughly doubled by optimum heat treatment.

ASTM Designation Description Name
TB00 Annealed A
TD01 Quarter Hard 1/4 H
TD02 Half Hard 1/2 H
TD04 Hard H
