Qbe1.9Ti Thin Beryllium Copper Sheet Foil Strips Polished For Spring Connectors
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO,SGS |
| Model Number | Qbe1.9Ti |
| Minimum Order Quantity | 50 |
| Price | 30USD |
| Packaging Details | in coil packed into wooden case |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Beryllium Copper Alloy Foil Strips | Max Coil Wt. | 2T |
|---|---|---|---|
| Thinnest Thick. | 0.02mm | Max Width | 305mm |
| Length | 200mm, 500mm, 1000mm Or As Required | Standard | ГОСТ 1789-70 |
| Safe Handling | No Special Health Risk. | Machining Property | Good |
| Surface | Bright/Polished | Flatness | Good |
| State | Soft, Hard, Ageing(Soft), Ageing(Hard) | Typical Application | For Spring Connectors |
| Available Shapes | Strip, Sheet | ||
| High Light | Qbe1.9Ti thin Beryllium Copper sheet,Beryllium Copper Alloy sheet Polished,beryllium copper sheet thickness 0.02mm |
||
Product Description
Beryllium Copper Alloy Foil Strips Qbe1.9Ti With Perfect Conductivity For Spring Connectors
Product Description:
Name: Beryllium Copper Alloy Foil Strips
Tape: Qbe1.9Ti
Specification: 0.8mmx200mm
Tolerance: +/-0.015mm
State: Soft, Hard, Ageing(Soft), Ageing(Hard)
Surface: Bright/Polished
Application: For spring connectors
Chemical Composition of Beryllium Copper Alloy Qbe1.9Ti:
| CUBERYLLIUM® Brand |
Gost- Number |
Be | Al | Ni | Fe | Cu | Si | Ti |
| Qbe1.9Ti | БрБНТ1.9 | 1.87-2.10 | 0.15 max | 0.2~0.5 |
0.15 max |
Balance |
0.15 max |
0.1～0.25 |
Typical Physical Properties of Beryllium Copper Alloy Qbe1.9Ti:
Density (g/cm3): 8.25
Elastic Modulus(Gpa): 130
Electrical Conductivity: 22-28% IACS
Thermal Expansion Coefficient(m/m℃): 17.5x10-6
Thermal Conductivity(25℃): 105W/m℃
Melting Point (°C): 870
Mechanical And Electrical Properties of Beryllium Copper Strip Qbe1.9Ti:
| Name | Temper | Thickness (mm) |
Tensile Strength | Hardness | Elongation (min) |
| MPa | HV | Percent | |||
| Qbe1.9 | Soft | <0.15 | >390 | <120 | >30% |
| 0.15~0.25 | 390~590 | ||||
| >0.25 | 390~590 | ||||
| Hard | <0.15 | >590 | >160 | >3% | |
| 0.15~0.25 | 590~880 | ||||
| >0.25 | 640~930 | ||||
| After Ageing (Soft) |
<0.15 | >1080 | >330 | >2% | |
| 0.15~0.25 | 1080~1470 | ||||
| >0.25 | 1130~1470 | ||||
| After Ageing (Hard) |
<0.15 | >1080 | >360 | >1.5% | |
| 0.15~0.25 | 1130~1570 | ||||
| >0.25 | 1170~1570 |
Standard of Beryllium Copper Alloy Qbe1.9Ti:
| Shape | Standard Specification |
| Bar | ГОСТ15835-2013 ASTM B194, B196, |
| Plate | ГОСТ1789-2013;ASTM B194 |
| Rod | ГОСТ15835-2013 AMS 4650, ASTM B196, MILITARY MIL-C-21657, SAE J463, |
| Rod, Forging | ГОСТ15835-2013;AMS 4650 |
| Sheet | ГОСТ1789-2013 |
| Strip | ОСТ1789-2013; ASTM B194, SAE J463, J461 |
Standard Tolerance of Beryllium Copper Strip Qbe1.9Ti:
| Tolerance Sheet | ||
| (MM) | ||
| Strip Thickness |
CuBeryllium® Standard Tolerance |
|
| over | incl. | minus |
| 0.03 | 0.08 | 0.003 |
| 0.08 | 0.1 | 0.004 |
| 0.1 | 0.15 | 0.005 |
| 0.15 | 0.2 | 0.006 |
| 0.2 | 0.25 | 0.007 |
| 0.25 | 0.4 | 0.008 |
| 0.4 | 0.55 | 0.009 |
| 0.55 | 0.7 | 0.01 |
| 0.7 | 0.9 | 0.015 |
| 0.9 | 1.5 | 0.025 |
| Note: Tolerances apply to rolled and mill hardened strip. | ||
New information plz contact to info&cuberyllium.com.

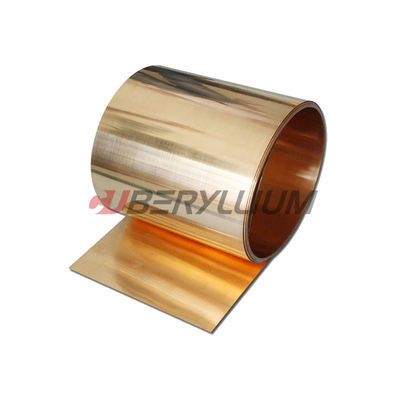

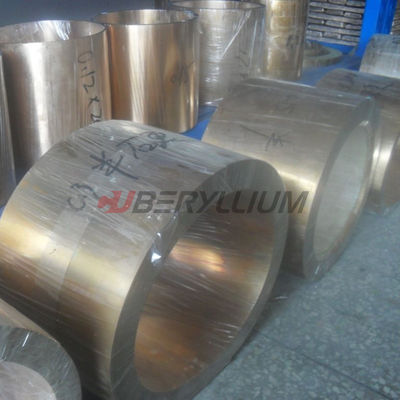

Product Photo:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
