CDA 172 Beryllium Copper Foil 0.1MM THX Used For Electronics

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CDA 172 Beryllium Copper Beryllium Copper Foil Max Coil Wt. 2T
Thinnest Thick. 0.1mm Width 200mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Temper 1/2H
Coil Weight Material Can Be Coiled In Apporximately 12kg Coils.
High Light

CDA 172 Beryllium Copper Foil

,

Polished Beryllium Copper Foil

,

Beryllium Copper Foil 0.1MM

Leave a Message
Product Description

 CDA 172 Beryllium Copper Beryllium Copper Foil 0.1MM THX Used For Electronics

Product Normal Description:

Product Name CDA 172 Beryllium Copper Foil
Grade CDA 172, C17200, CuBe2
End Product Form Foil
Standard ASTM B194
State of product Half Hard(TD02)
Specification

Thickness:1mm; Width: 200~260mm

Application Industrial, Electrical Industry



Introduction of Cuberyllium:

Cuberyllium is one of the eminent manufacturer and exporter of high Grade Beryllium Copper Alloys, including beryllium copper strips, beryllium copper rods, beryllium copper bars, beryllium copper plates, beryllium copper sheet, beryllium copper wires, beryllium copper tubes and so no.
Cuberyllium offers a commendable range of beryllium copper alloys with competitive price. We offer beryllium copper alloys that are fabricated by our adroit professionals using supreme class raw material as per the set industry norms.
With holding years of experience in manufacturing, we continue to offer robust quality of Beryllium Copper Alloys with very reasonable prices across all over the world.



Physical Properties of CDA 172 Beryllium Copper:

Density Specific Heat Electrical Conductivity (I.A.C.S) Thermal Conductivity
8.36g/cm³ 0.42 J/g.K Min. 24% 106 W/m.K



Standard Specificaiton For CDA 172 Beryllium Copper:

End Product Specification
Bar AMS 4650, 4651, 4533, ASTM B194, B196, MILITARY MIL-C-21657, SAE J463, J461
Extrusions ASTM B570
Forgings AMS 4650, ASTM B570
Plate ASTM B194
Rod AMS 4650, 4534, 4533, 4651, ASTM B196, MILITARY MIL-C-21657, SAE J463, J461
Rod, Forging AMS 4650
Sheet ASTM B194
Strip ASTM B194, SAE J463, J461
Tube, Seamless AMS 4535, ASTM B643
Wire AMS 4725, ASTM B197, SAE J463, J461



TYPICAL APPLICATIONS FOR CDA 172 Beryllium Copper:
Electrical Switch and Relay Blades
Electrical connectors
Non-Sparking Safety Tools
Pump Parts
Bushings/Bearing for Aerospace Industry
Oil Field Drilling Collars and Instrument Housing
Springs

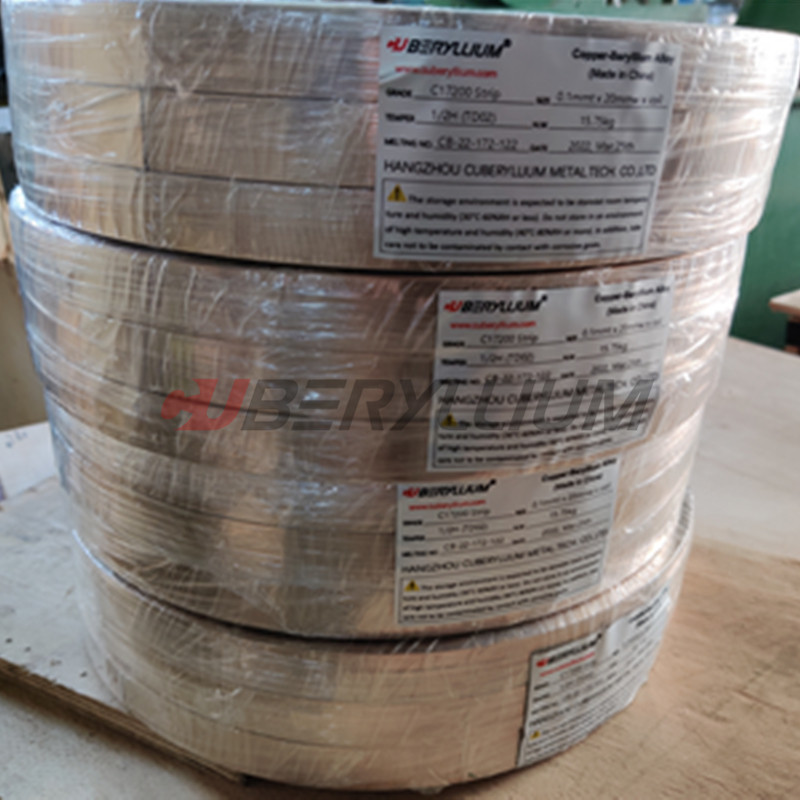

Product Photo of CDA 172 Beryllium Copper Strips:

CDA 172 Beryllium Copper Foil 0.1MM THX Used For Electronics 0



Type of Packing:
Bundles (hexagonal)
Wooden Boxes
Crates (steel/wooden)
Packaging for Beryllium Copper Bar and Strip as per customer's requirements

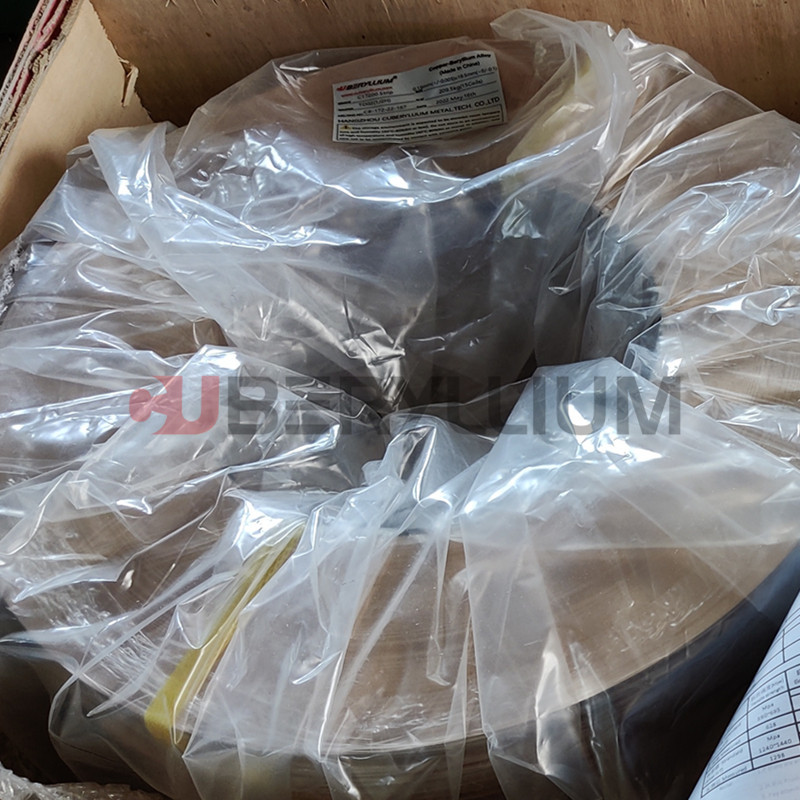

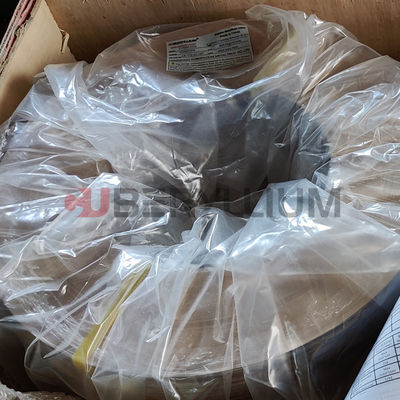

Packing Photo:

CDA 172 Beryllium Copper Foil 0.1MM THX Used For Electronics 1



Why choose Cuberyllium Metal for beryllium copper alloy products?

  • We could offer a wide selection of Beryllium Copper Alloys.
  • Broad range of products and custom capabilities
  • Modern, state-of-the-art facilities and equipment
  • Beryllium Copper Alloys in Wholesale Price

Shipping Beryllium Copper Alloys worldwide & fast delivery



Supplied Form(C17200 Beryllium Copper Alloy):
Strips
Plates
Wires
Round bars
Square bars
Rectangular bars
Discs
Billets
Tubes
Custom shapes are available upon request
