CuBe2 UNS C17200 Copper Strips TD02 Temper Size 0.2mm X 41mm X Coil

  • CuBe2 UNS C17200 Copper Strips TD02 Temper Size 0.2mm X 41mm X Coil
  • CuBe2 UNS C17200 Copper Strips TD02 Temper Size 0.2mm X 41mm X Coil
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2/UNS.C17200
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Strips Max Coil Wt. 2T
Thinnest Thick. 0.2mm Width 41mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Temper 1/2H
Coil Weight Material Can Be Coiled In Apporximately 12kg Coils.
High Light

UNS C17200 Copper Strips

,

TD02 Temper Copper Strips

,

TD02 Temper Beryllium Copper Strip
Leave a Message
Product Description

Material CuBe2/UNS.C17200 Copper Strips TD02 Temper Size 0.2mm x 41mm x coil

Product Normal Description:

Product Name Copper strips
Grade CuBe2/UNS.C17200
End Product Form Strips/Tape
Standard ASTM B194
State of product Half Hard(TD04)
Specification

Thickness: 0.2mm

Width: 41mm
Application Electrical industry



Chemical Composition of Material CuBe2/UNS.C17200 Copper Alloy:

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15



Temper Designations of Material CuBe2/UNS.C17200 Copper Strips:

Cuberyllium Designation ASTM Mechanical and Electrical Properties of CuBe2/UNS.C17200 Copper Strips
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28

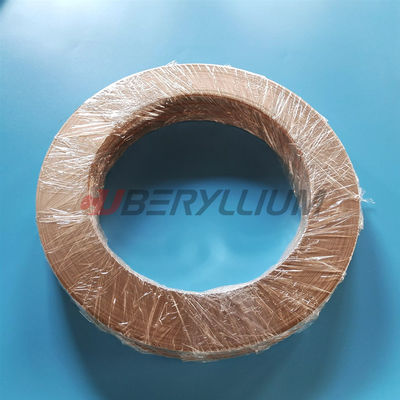

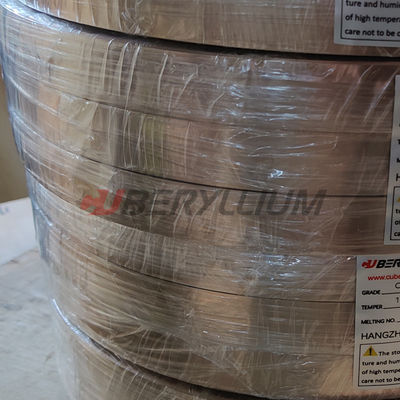

Product Photo of Material CuBe2/UNS.C17200 Copper Strips:

CuBe2 UNS C17200 Copper Strips TD02 Temper Size 0.2mm X 41mm X Coil 0



Beryllium Copper Alloys:

Beryllium copper (C17200 & C17300) is an age-hardening alloy which attains the highest strength of any copper-base alloy. It may be age-hardened after forming into springs, intricate forms or complex shapes. It is esteemed for spring properties, erosion obstruction, soundness, conductivity, and low creep.
Tempered beryllium copper is C17200 and C17300 that has been age solidified and cold drawn. No further heat treatment is essential past a potential light pressure alleviation. It is adequately flexible to twist without anyone else measurement and can be framed into springs and most shapes. The tempered wire is most valuable where the properties of beryllium copper are wanted, yet the age solidifying of completed parts isn’t useful.
C17510 and C17500 beryllium copper alloys are age-hardenable and give great electrical conductivity, physical properties, and perseverance. They are utilized in springs and wire where electrical conduction or maintenance of properties at raised temperatures is significant.
High-quality beryllium copper combinations contain as much as 2.7% beryllium (cast), or 1.6-2% beryllium with about 0.3% cobalt (created).
High conductivity beryllium copper combinations contain as much as 0.7% beryllium with some nickel and cobalt. The thermal conductivity of these amalgams is more prominent than aluminum and somewhat not exactly unadulterated copper and are regularly utilized as electrical contacts.
