Beryllium Copper Type C17200 Half Hard In Strip Format RWMA Class 4 Material

Place of Origin China
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name C17200 Beryllium Copper Strips Max Coil Wt. 2T
Thinnest Thick. 0.2mm Width 41mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Temper 1/2H
Coil Weight Material Can Be Coiled In Apporximately 12kg Coils.
High Light

Beryllium Copper Type C17200


Half Hard Beryllium Copper Strip


Strip Format Beryllium Copper

Leave a Message
Product Description

Beryllium Copper Type C17200 (Half Hard) in Strip Format RWMA Class 4 Material

Product Normal Description:

Product Name Beryllium copper strips
Grade C17200
End Product Form Strips/Tape
Standard ASTM B194
State of product Half Hard

Thickness: 0.2mm

Width: 41mm

Application Electrical industry


Chemical Composition of Beryllium Copper Type C17200 Alloy:

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15


Temper Designations of Beryllium Copper Type C17200 Strips:

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Beryllium Copper C17200 Strips
Designation Description Tensile Strength
Yield Strength 0.2% offset Elongation Percent HARDNESS
B or C Scale
Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410~530 190~380 35~60 <130 45~78HRB 15~19
1/2 H TD02 Half Hard 580~690 510~660 12~30 180~220 88~96HRB 15~19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15~19

Mill hardened
930~1040 750~940 9~20 270~325 28~35HRC 17~28
SHM TM05 1030~1110 860~970 9~18 295~350 31~37HRC 17~28
XHM TM06 1060~1210 930~1180 4~15 300~360 32~38HRC 17~28

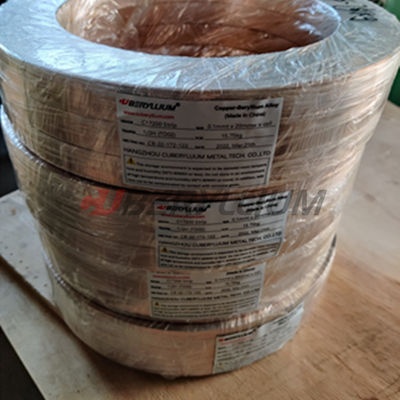

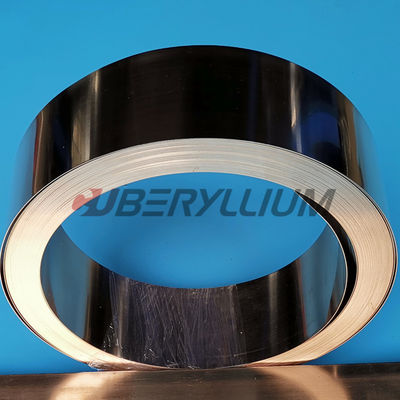

Product Photo of Beryllium Copper C17200 Strips:

Beryllium Copper Type C17200 Half Hard In Strip Format RWMA Class 4 Material 0


What is Beryllium Copper?
Beryllium copper (BeCu), also known as copper beryllium (CuBe), beryllium bronze and spring copper, is a copper alloy with 0.5—3% beryllium and sometimes other elements. It has superb metalworking, framing and machining properties. It has many specialized applications in electrical industry, industrail and aviation.

The small proportion of beryllium to copper makes a group of high copper amalgams with quality as high as compound steel. The first of the two families, C17200 and C17300, incorporates high quality with moderate conductivity, while the subsequent family, C17500 and C17510, offers high conductivity with moderate quality.


Where is Beryllium Copper used?
Beryllium copper is a non-ferrous composite utilized in springs, spring wire, load cells, and different parts that must hold their shape under rehashed anxiety. It has high electrical conductivity and is utilized in low-flow contacts for batteries and electrical connectors.

Other Uses:
Ultra-low temperature cryogenic equipment, such as dilution refrigerators, because of its mechanical strength and relatively high thermal conductivity in this temperature range
Servicing magnetic resonance imaging (MRI) machines, where high strength magnetic fields make use of ferrous tools dangerous, and where magnetic materials in the field can disturb the image.
It has important applications in oilfield tools, aerospace landing gears, robotic welding, and mold making applications.
