CuBe2 ASTM B194 Beryllium Copper Strips 0.12mm X 250mm Hard State

  • CuBe2 ASTM B194 Beryllium Copper Strips 0.12mm X 250mm Hard State
  • CuBe2 ASTM B194 Beryllium Copper Strips 0.12mm X 250mm Hard State
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2 ASTM B194
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Strips Max Coil Wt. 2T
Thinnest Thick. 0.12mm Max Width 250mm
Standard ASTM B194 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State Hard(TD04)
Application Spring Connectors
High Light

Hard State Beryllium Copper Strips

,

ASTM B194 Beryllium Copper Strips

,

Spring Connectors Beryllium Copper Strip
Leave a Message
Product Description

CuBe2 ASTM B194 Beryllium Copper Strips 0.12mmt x 250mmw Hard State

Product Normal Description:

Product Name: Beryllium copper strips

Grade: CuBe2, ASTM B194

Thickness: 0.12mm

Width: 250mm

State: TD04(Hard)

Product Brand: CUBERYLLIUM®



Copper Beryllium Alloys combine high strength with good electrical and thermal conductivities. The high strength of copper beryllium alloys is accomplished by either age hardening or precipitation hardening. Valued for their non-magnetic and non-sparking qualities, Copper Beryllium Alloys are available as high-strength and high conductivity alloys. CUBERYLLIUM® supplies Copper Beryllium in a range of tempers, and in strip, rod, bar, wire, rod, tube, and plate form. Beryllium copper alloys are used in a variety of applications including automotive, industrial, and oil & gas drilling. CUBERYLLIUM® is your go-to beryllium supplier.



Chemical Composition of CuBe2 ASTM B194 Beryllium Copper Alloy:

Weight % Be Ni+Co Ni+Co+Fe Pb Cu Other
minimum 1.80 0.20 — — Bal —
maximum 2.00 — 0.60 0.02 0.5



Typical Physical Properties of CuBe2 ASTM B194 Beryllium Copper Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of CuBe2 ASTM B194 Beryllium Copper Strips:

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
H-Solution Heat Treated and Cold Worked TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19

Noted:

Specifications:   AMS-QQ-C-533, ASTM-B194

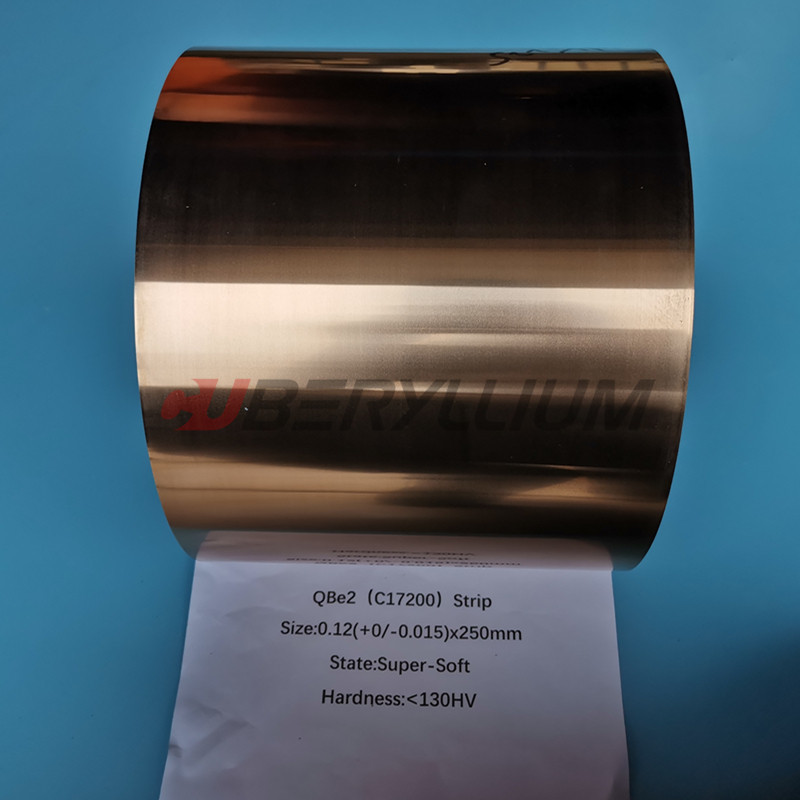

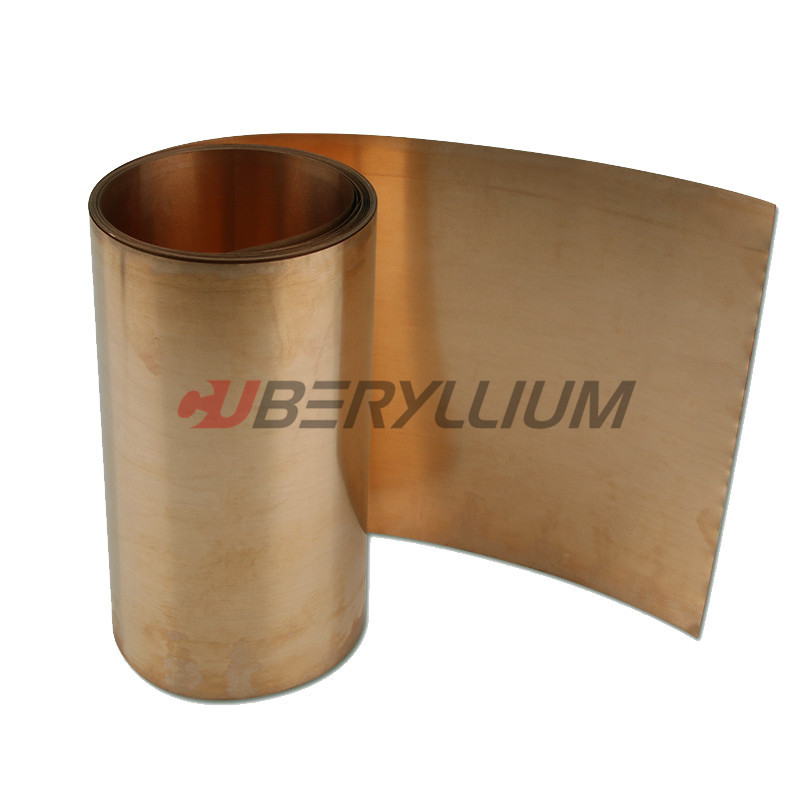

Product Photos:

CuBe2 ASTM B194 Beryllium Copper Strips 0.12mm X 250mm Hard State 0



Why Choose Us?

1, We are a professional beryllium copper alloy manufacturer, with more than 20 years' experience.

2, With various types of beryllium copper alloy, such as beryllium rods, bars, strips, wires and so on.

3, Good quality.

4, Competitive offers.

5, After-sale service.



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
