Alloy 25 Beryllium Copper Strips For Bell Relay Contact Spring

  • Alloy 25 Beryllium Copper Strips For Bell Relay Contact Spring
  • Alloy 25 Beryllium Copper Strips For Bell Relay Contact Spring
  • Alloy 25 Beryllium Copper Strips For Bell Relay Contact Spring
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number BE-CU Alloy 25
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Strips Max Coil Wt. 2T
Thinnest Thick. 0.007'' Max Width 300mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State Hard(TD04)
Application Bell Relay Contact Spring
High Light

Alloy 25 Beryllium Copper Strip

,

Beryllium Copper Strips Polished

,

Beryllium Copper Strips 300mm
Leave a Message
Product Description

BE-CU Alloy 25 Beryllium Copper Strips 0.007''x300mm Wide Coil For Bell Relay Contact Spring

Product Normal Description:

Product Name: Beryllium copper strips

Grade: BE-CU Alloy 25

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.007''x300mm

State: Hard(TD04)

Product Brand: CUBERYLLIUM®



CUBERYLLIUM® is specialized in producing beryllium copper alloys, including beryllium copper strips/ tapes, beryllium copper rods/bars, beryllium copper tubes, beryllium copper wires, beryllium copper plates, beryllium copper billets, with high quality performance metals for electrical industry fasteners and industrial.

The grades could be C17200. C17300, C17500, C17510.

C17200(CU-BE Alloy 25) is manufactured to provide a combination of high strength and hardness properties coupled with superior thermal properties. This range of properties makes C17200 the premier material for copper alloy molds and a wide range of other applications from oil and gas to aerospace.



Chemical Composition of BE-CU Alloy 25 Beryllium Copper Alloy:

Weight % Be Ni+Co Ni+Co+Fe Pb Cu Other
minimum 1.80 0.20 — — Bal —
maximum 2.00 — 0.60 0.02 0.5



Typical Physical Properties of BE-CU Alloy 25 Beryllium Copper Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of BE-CU Alloy 25 Beryllium CopperStrips:

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19

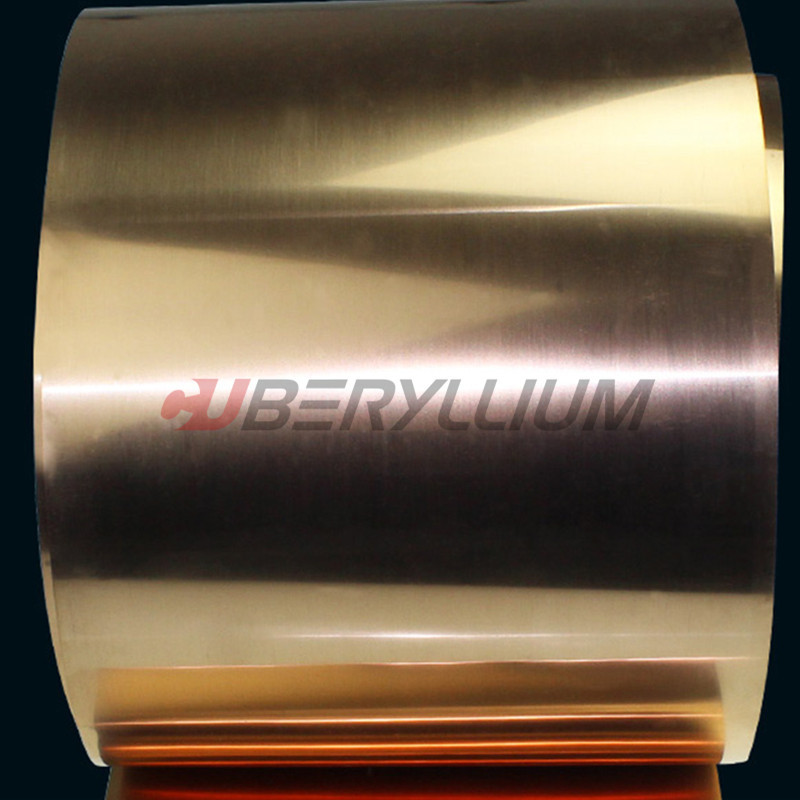

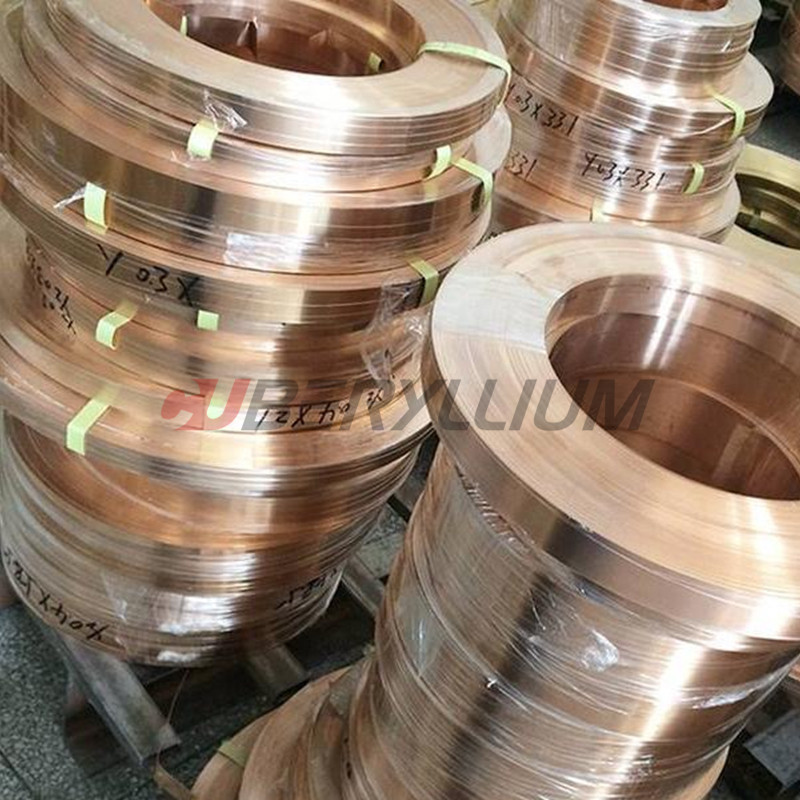

Product Photos:

Alloy 25 Beryllium Copper Strips For Bell Relay Contact Spring 0



Applications of BE-CU Alloy 25 Beryllium Copper Alloy:

CUBERYLLIUM ®-172 is usually used for electrical industry, fasteners and industrial.

Electrical Industry: electrical switch and relay blades(switch parts, relay parts), clips, fuse clips, connectors, spring connectors, navigational indstruments, contact bridges, belleville washers;

Fasteners: washers, lock washers, fasteners, retaining rings, roll pins, screws, bolts;

Industrial: pump parts, springs, electrochemical, spline shafts, non sparking safety tools, flexible metal hose, housings for indtruments, bearings, bushings, valve seats, valve stems, disphragms, springs, welding equipment, rolling mill parts, valves, bourdon tubes, wear plates on heavy equipment, bellows.
