1/2H TD02 Beryllium Copper Strips 0.3mm Thickness 18mm Width For Switch Spring

  • 1/2H TD02 Beryllium Copper Strips 0.3mm Thickness 18mm Width For Switch Spring
  • 1/2H TD02 Beryllium Copper Strips 0.3mm Thickness 18mm Width For Switch Spring
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Strips Max Coil Wt. 2T
Thinnest Thick. 0.3mm Width 18mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State 1/2H
Application Switch Springs
High Light

18mm Width Beryllium Copper Strips

,

0.3mm Beryllium Copper Strips

,

Switch Spring Beryllium Copper Strips
Leave a Message
Product Description

C17200-1/2H(TD02) Beryllium Copper Strips 0.3mm Thickness 18mm Width For Switch Springs

Product Normal Description:

Product Name: Beryllium copper strips

Grade: C17200

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.3mm x 18mm

State: 1/2H

Typical Application: used for switch springs

Product Brand: CUBERYLLIUM®



International Specification of C17200-1/2H(TD02) Beryllium Copper Alloys:

Strips: ASTM B194; AMS4530, 4532; SAE J461, 463; RWMA Class 4

European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN 2.1247, CW101C to EN



Most Commonly Temper Used:

Strips: A(TB00), 1/4H(TD01), 1/2H(TD02), H(TD04)

Sheets: A(TB00), 1/4H(TD01), 1/2H(TD02), H(TD04), AT(TF00)



Available Size: Custom Diameter & Sizes, Random Mill Lengths.

Available Products(Forms): Round Rods, Strips, Coils, Sheets, Custom shapes are available upon request.



Chemical Composition of C17200-1/2H(TD02) Beryllium Copper Alloys:

Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.80-2.00% 0.20% Min. 0.60% Max. Balance

Typical Physical Properties of C17200-1/2H(TD02) Beryllium Copper Alloys:

Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980

Temper Designations of C17200-1/2H(TD02) Beryllium Copper Strips:

CuBeryllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28



Typical Application of C17200-1/2H(TD02) Beryllium Copper Strips:

Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips
Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows



Product Photos:

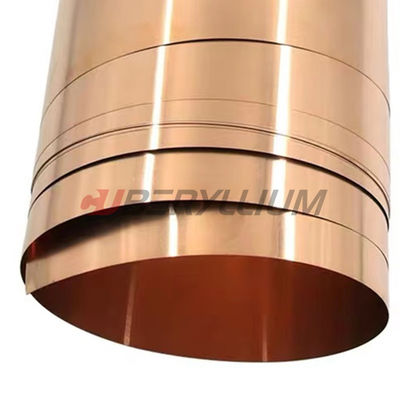

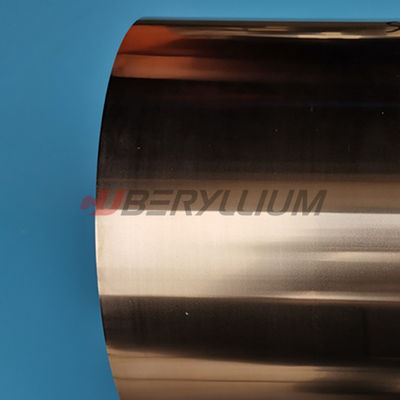

1/2H TD02 Beryllium Copper Strips 0.3mm Thickness 18mm Width For Switch Spring 0



FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
