C17200 DIN 2.1247 Beryllium Copper Strips 0.5mmx26mm 1/2H Temper TD02

  • C17200 DIN 2.1247 Beryllium Copper Strips 0.5mmx26mm 1/2H Temper TD02
  • C17200 DIN 2.1247 Beryllium Copper Strips 0.5mmx26mm 1/2H Temper TD02
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200(DIN.2.1247)
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Strips/Coils Max Coil Wt. 2T
Thinnest Thick. 0.5mm Width 26mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State 1/2H
Application Switch Springs
High Light

DIN 2.1247 Beryllium Copper Strips

,

C17200 Beryllium Copper Strips

,

TD02 Beryllium Copper Strip
Leave a Message
Product Description

C17200(DIN 2.1247) Beryllium Copper Strips/Coils 0.5mmx26mm 1/2H Temper(TD02)

Product Normal Description:

Product Name: Beryllium copper strips/coils

Grade: C17200(DIN.2.1247)

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.5mm x 26mm

State: 1/2H

Typical Application: used for switch springs

Product Brand: CUBERYLLIUM®



International Specification of C17200(DIN 2.1247) Beryllium Copper Alloys:

Strips: ASTM B194; AMS4530, 4532; SAE J461, 463; RWMA Class 4

European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN 2.1247, CW101C to EN



Most Commonly Temper Used:

Strips: A(TB00), 1/4H(TD01), 1/2H(TD02), H(TD04)

Sheets: A(TB00), 1/4H(TD01), 1/2H(TD02), H(TD04), AT(TF00)



Available Size: Custom Diameter & Sizes, Random Mill Lengths.

Available Products(Forms): Round Rods, Strips, Coils, Sheets, Custom shapes are available upon request.



Chemical Composition of C17200(DIN 2.1247) Beryllium Copper Alloys:

Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.80-2.00% 0.20% Min. 0.60% Max. Balance

Typical Physical Properties of C17200(DIN 2.1247) Beryllium Copper Alloys:

Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980

Temper Designations of C17200(DIN 2.1247) Beryllium Copper Strip:

CuBeryllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28



Related Products of C17200(DIN 2.1247) Beryllium Copper Alloys:

Beryllium copper rods / bars

Beryllium copper wires

Beryllium copper tubes / pipes

Beryllium copper sheets / plates

Beryllium copper strips / coils / tapes

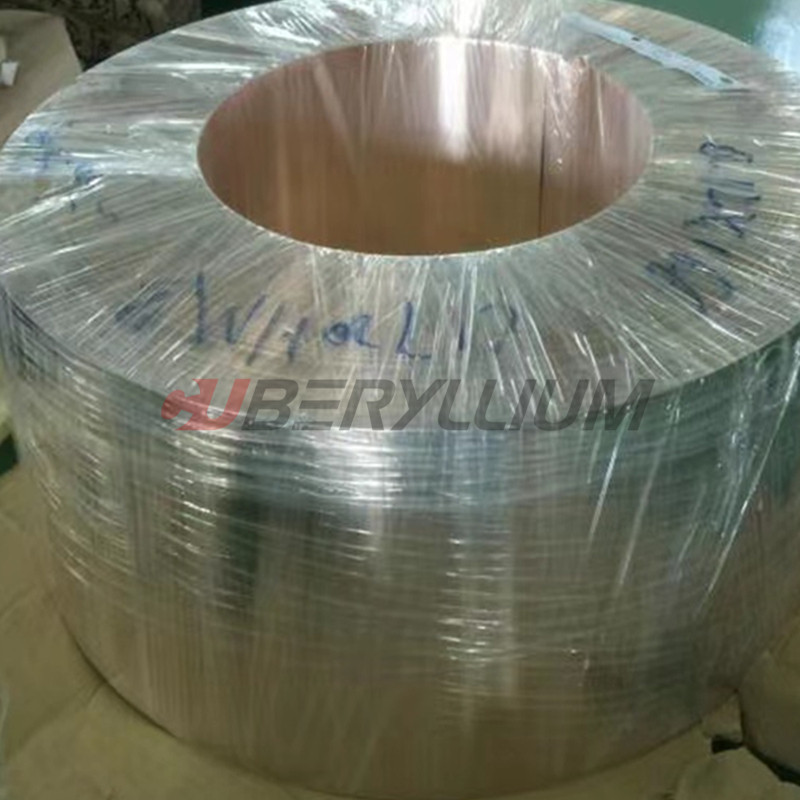

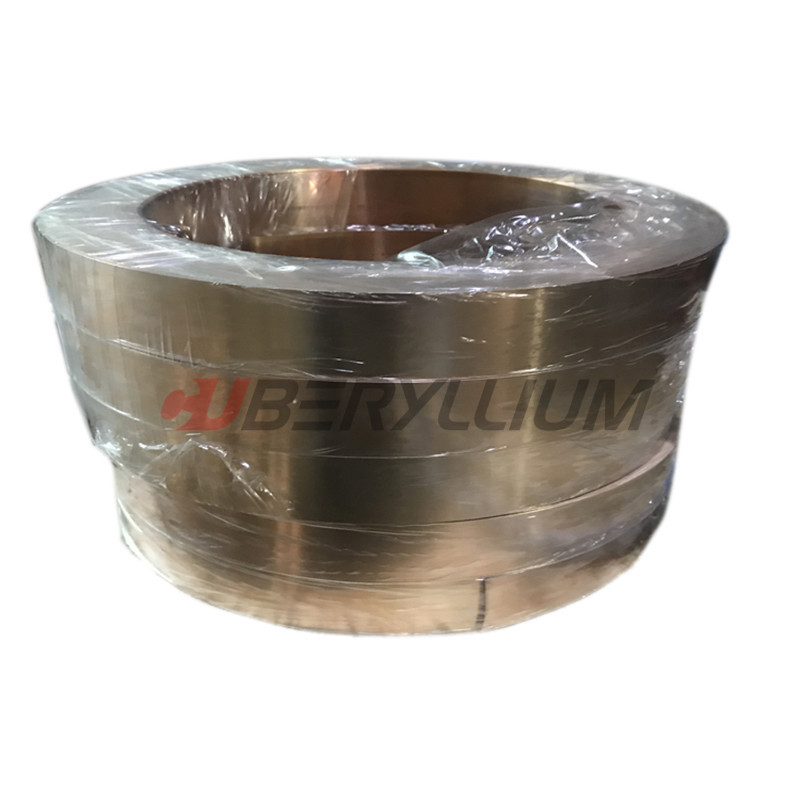

Product Photos:

C17200 DIN 2.1247 Beryllium Copper Strips 0.5mmx26mm 1/2H Temper TD02 0



FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
