CuBe2 DIN.2.1247 Beryllium Copper Alloys For Switch Springs

  • CuBe2 DIN.2.1247 Beryllium Copper Alloys For Switch Springs
  • CuBe2 DIN.2.1247 Beryllium Copper Alloys For Switch Springs
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2 (DIN.2.1247)
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Alloys Max Coil Wt. 2T
Thinnest Thick. 0.5mm Width 26mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State 1/2H
Application Switch Springs
High Light

DIN.2.1247 Beryllium Copper Alloys

,

CuBe2 Copper Beryllium Alloys

,

Switch Springs Beryllium Copper Alloys
Leave a Message
Product Description

CuBe2 (DIN.2.1247) Beryllium Copper Alloys 0.5mm x 26mm x coil For Switch Springs

Product Normal Description:

Product Name: Copper beryllium alloys

Grade: CuBe2 (DIN.2.1247)

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.5mm x 26mm

State: 1/2H

Typical Application: used for switch springs

Product Brand: CUBERYLLIUM®



About Cuberyllium-Beryllium Copper Strips Supplier & Beryllium Copper Coil Manufacturer:

Beryllium copper strips supplier, manufacturer in China

Beryllium copper coil supplier, manufacturer in China

CuBe2 - UNS. C17200 (Alloy 25, DIN.2.1247) Beryllium copper strips supplier, manufacturer in China

CuBe2 - UNS. C17200 (Alloy 25, DIN.2.1247) Beryllium copper coil supplier, manufacturer in China

CuBe2 - UNS. C17200 (Alloy 25, DIN.2.1247) Beryllium copper tape supplier, manufacturer in China



Chemical Composition of CuBe2 (DIN.2.1247) Beryllium Copper Alloys:

Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.80-2.00% 0.20% Min. 0.60% Max. Balance

Typical Physical Properties of CuBe2 (DIN.2.1247) Beryllium Copper Alloys:

Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980

Temper Designations of CuBe2 (DIN.2.1247) Beryllium Copper Strip:

CuBeryllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28



Applications of CuBe2 (DIN.2.1247) Beryllium Copper Alloys:

Product Category Product Reason Category Reason
Industrial Housings for Instruments Corrosion Resistance Corrosion Resistance
Housings for Instruments Machining Characteristics Machinability
Housings for Instruments Magnetic Properties Non-Magnetic
Housings for Instruments Mechanical Properties High Strength
Non Sparking Safety Tools Mechanical Properties Very High Strength
Non Sparking Safety Tools Non-Sparking Non-Sparking



Related Products of CuBe2 (DIN.2.1247) Beryllium Copper Alloys:

Beryllium copper rods / bars

Beryllium copper wires

Beryllium copper tubes / pipes

Beryllium copper sheets / plates

Beryllium copper strips / coils / tapes

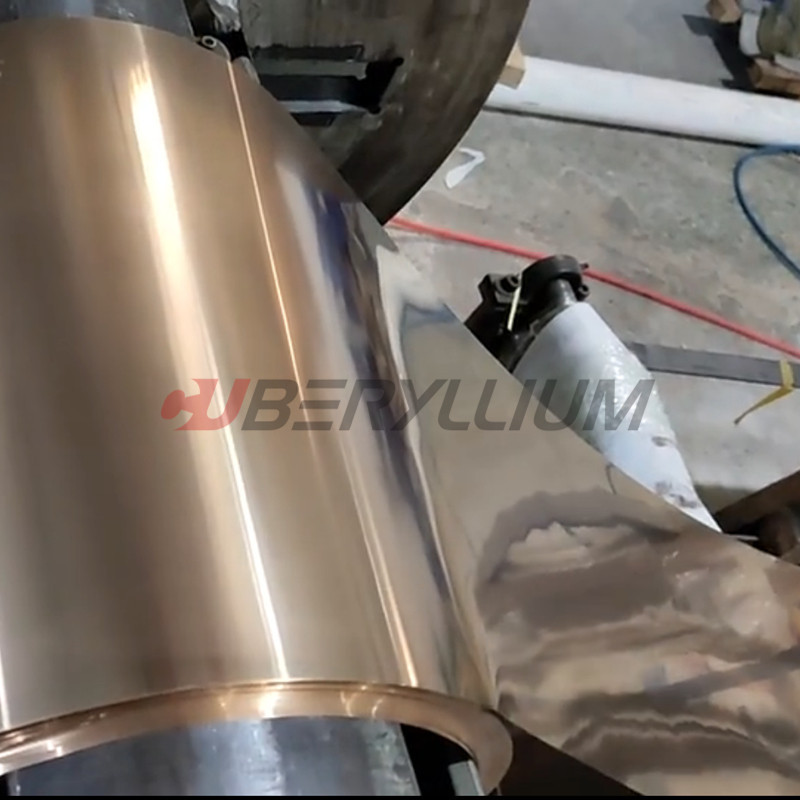

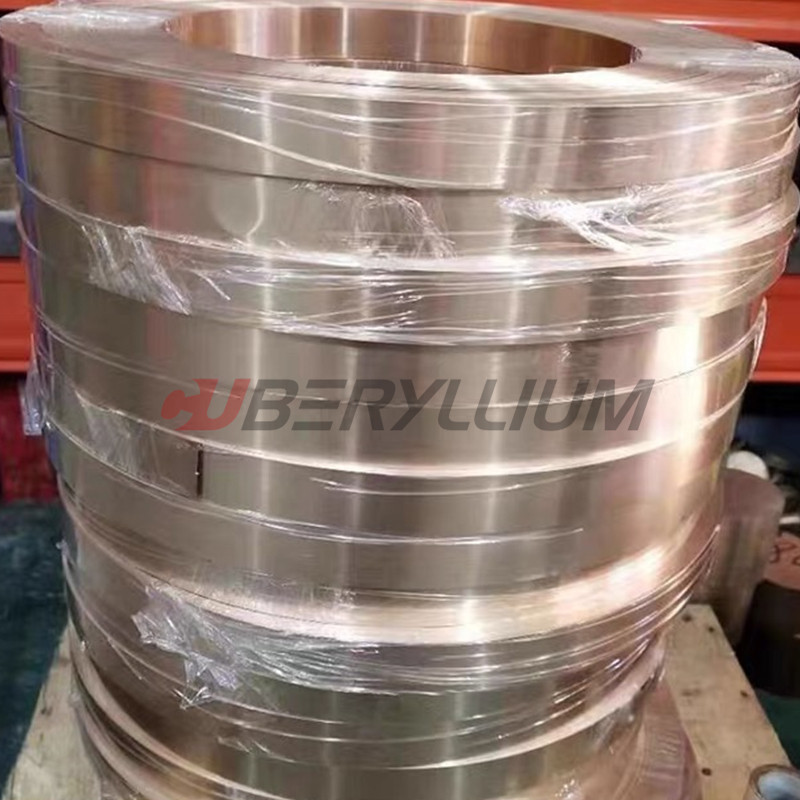

Product Photos:

CuBe2 DIN.2.1247 Beryllium Copper Alloys For Switch Springs 0



FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
