UNS C17200 Copper Beryllium Strip Thickness 0.5mm Width 26mm In Coil

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number UNS. C17200
Minimum Order Quantity 50
Price 30USD

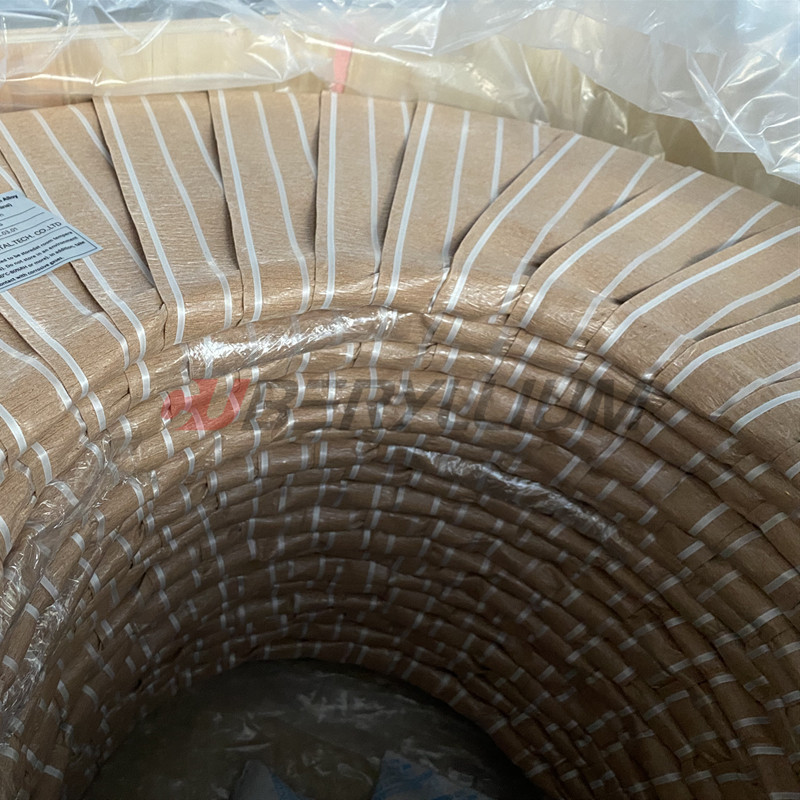

Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name UNS. C17200 Copper Beryllium Strip Max Coil Wt. 2T
Thinnest Thick. 0.5mm Width 26mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State 1/2H
Application Switch Spring
High Light

C17200 Copper Beryllium Strip

,

Bright Copper Beryllium Strip

,

Width 26mm Copper Beryllium Strip

Leave a Message
Product Description

UNS. C17200 Copper Beryllium Strip Thickness 0.5mm Width 26mm in Coil

Product Normal Description:

Product Name: Copper beryllium strip

Grade: UNS. C17200

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.5mm x 26mm

State: 1/2H

Typical Application: used for switch spring

Product Brand: CUBERYLLIUM®



Applications of UNS. C17200 Copper Beryllium Alloy:

C17200 likewise displays extraordinary protection from stress unwinding at raised temperatures.

Beryllium copper coil, beryllium copper strip are used in fasteners, electric industry, pump, springs, electrochemical industry etc.

We provide high-quality beryllium copper strip with quality assurance.





Chemical Composition of UNS. C17200 Copper Beryllium Alloy:

Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.80-2.00% 0.20% Min. 0.60% Max. Balance

Typical Physical Properties of UNS. C17200 Copper Beryllium Alloy:

Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980

Temper Designations of UNS. C17200 Copper Beryllium Strip:

CuBeryllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)
Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)
HARDNESS
Rockwell
B or C Scale
Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410~530 190~380 35~60 <130 45~78HRB 15~19
1/2 H TD02 Half Hard 580~690 510~660 12~30 180~220 88~96HRB 15~19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15~19
HM TM04

Mill hardened
930~1040 750~940 9~20 270~325 28~35HRC 17~28
SHM TM05 1030~1110 860~970 9~18 295~350 31~37HRC 17~28
XHM TM06 1060~1210 930~1180 4~15 300~360 32~38HRC 17~28



Applications of UNS. C17200 Copper Beryllium Alloy:

Product Category Product Reason Category Reason
Industrial Housings for Instruments Corrosion Resistance Corrosion Resistance
Housings for Instruments Machining Characteristics Machinability
Housings for Instruments Magnetic Properties Non-Magnetic
Housings for Instruments Mechanical Properties High Strength
Non Sparking Safety Tools Mechanical Properties Very High Strength
Non Sparking Safety Tools Non-Sparking Non-Sparking



Related Products of UNS. C17200 Copper Beryllium Alloy:

Beryllium copper rods / bars

Beryllium copper wires

Beryllium copper tubes / pipes

Beryllium copper sheets / plates

Beryllium copper strips / coils / tapes

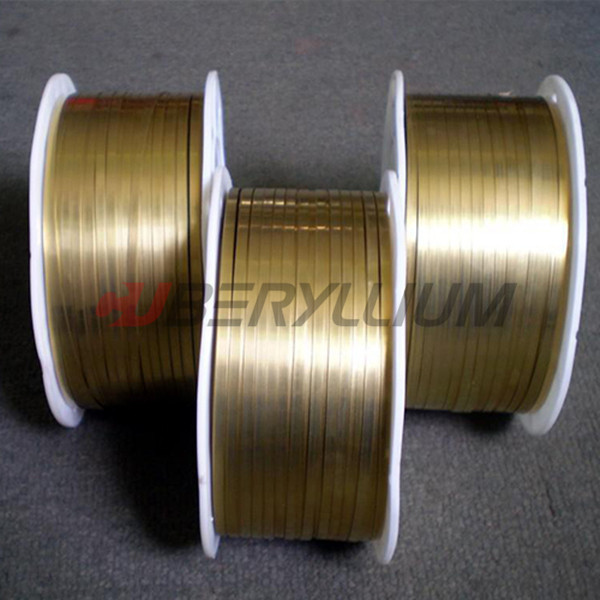

Product Photos:

UNS C17200 Copper Beryllium Strip Thickness 0.5mm Width 26mm In Coil 0





FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
