CW101C C17200 XHM TM06 Beryllium Copper Foil Strips Mill Hardened Copper Strip

  • CW101C C17200 XHM TM06 Beryllium Copper Foil Strips Mill Hardened Copper Strip
  • CW101C C17200 XHM TM06 Beryllium Copper Foil Strips Mill Hardened Copper Strip
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CW101C (C17200)
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Foil Strips Max Coil Wt. 2T
Thinnest Thick. 0.02mm Max Width 305mm
Standard ASTM B194, SAE J463, J461 Hardness 300~360HV
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State XHM (TM06) Application For Springs
High Light

c17200 tm06

,

C17200 XHM TM06 Beryllium Copper Foil

,

beryllium copper channel
Leave a Message
Product Description

Beryllium Copper Foil Strips CW101C (C17200) XHM State TM06 Mill Hardened Copper Strip

Product Normal Description:

Product Name: Beryllium copper foil strips

Grade: CW101C (C17200)

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.1mmx250mm

State: XHM (TM06)

Typical Application: used for springs

Product Brand: CUBERYLLIUM®



CUBERYLLIUM ®-172 also named Cube2--UNS. C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



Chemical Composition of Beryllium Copper CW101C (C17200) Alloy (CUBERYLLIUM ®-172):

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of Beryllium Copper CW101C (C17200) Alloy(CUBERYLLIUM ®-172):

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of Beryllium Copper Strips CW101C (C17200) (CUBERYLLIUM ®-172):

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28



The Magor Applications of Beryllium Copper CW101C (C17200) (CUBERYLLIUM ®-172):

  • Resistance welding
  • Plastic injection mold tooling
  • Oil and gas
  • Aerospace
  • Electronics and telecommunications
  • Electrical / electronic connectors
  • Robotics
  • Foundry products
  • Current-carrying springs
  • Welding electrodes
  • Bearings
  • Plastic molds
  • Corrosion resistant components
  • Precision screw machined parts

Product Photos:

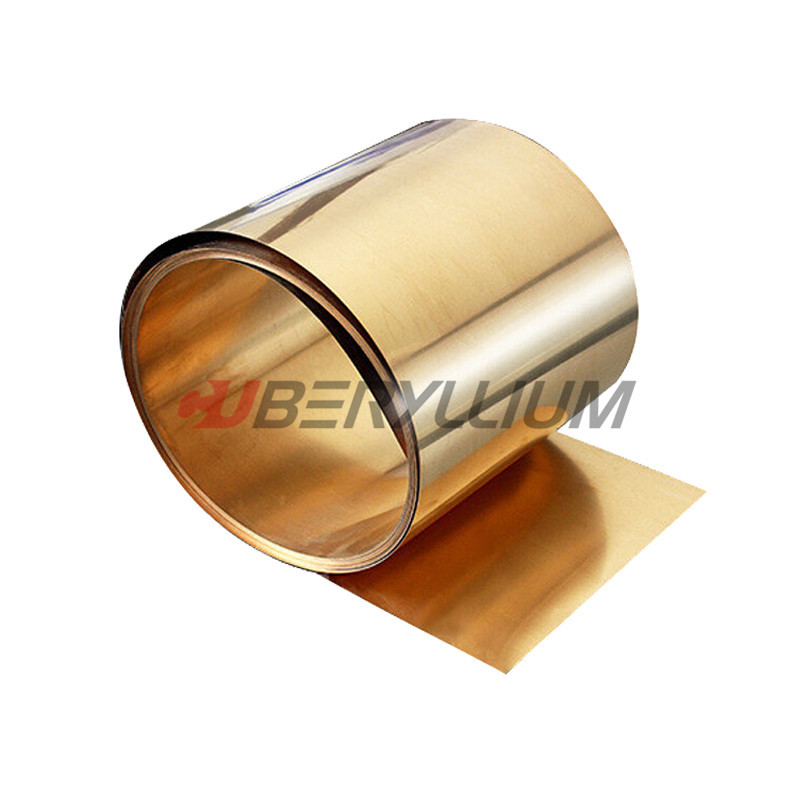

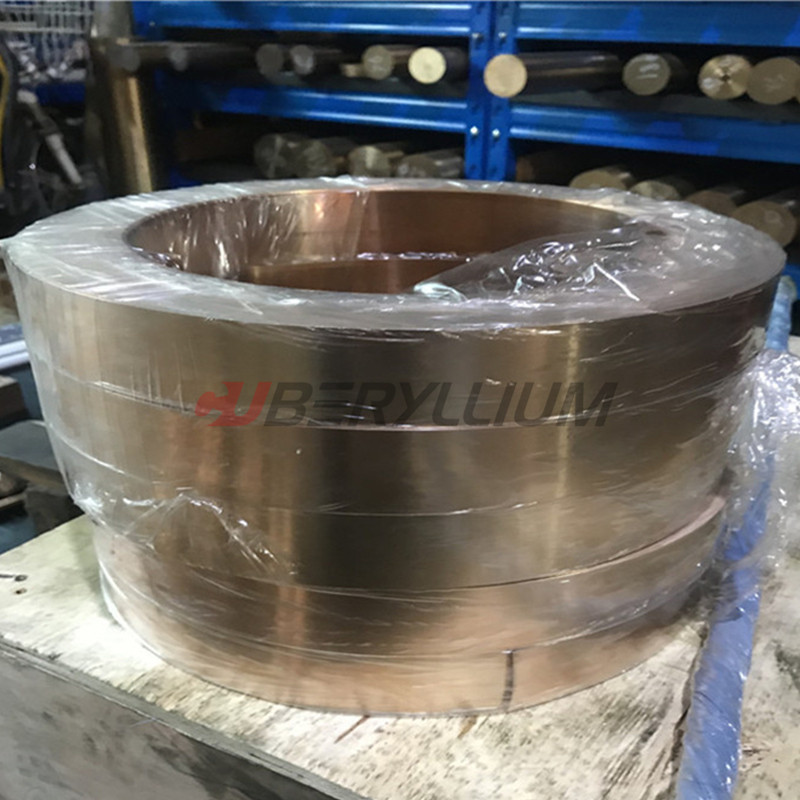

CW101C C17200 XHM TM06 Beryllium Copper Foil Strips Mill Hardened Copper Strip 0



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
