Astm B194 CuBe2 Beryllium Copper Temper Td04 Tapes 0.1mmx250mm For Plastic Molds

  • Astm B194 CuBe2 Beryllium Copper Temper Td04 Tapes 0.1mmx250mm For Plastic Molds
  • Astm B194 CuBe2 Beryllium Copper Temper Td04 Tapes 0.1mmx250mm For Plastic Molds
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CuBe2 Beryllium Copper Tapes Max Coil Wt. 2T
Thinnest Thick. 0.02mm Max Width 305mm
Standard ASTM B194, SAE J463, J461 Hardness 220~240HV
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State State Hard (TD04) Application For Plastic Molds
High Light

beryllium copper for molds

,

CuBe2 Beryllium Copper temper td04 0.1mmx250mm

,

becu beryllium copper Strip 0.1mmx250mm
Leave a Message
Product Description

State Hard (TD04) Tempered CuBe2 Beryllium Copper Tapes 0.1mmx250mm For Plastic Molds

Product Normal Description:

Product Name: Beryllium copper tapes

Grade: CuBe2

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.1mmx250mm

State: Hard (TD04)

Typical Application: used for plastic molds

Product Brand: CUBERYLLIUM®



Chemical Composition of CuBe2 Beryllium CopperAlloy (CUBERYLLIUM ®-172):

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of CuBe2 Beryllium Copper Alloy(CUBERYLLIUM ®-172):

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of CuBe2 Beryllium Copper Strip(CUBERYLLIUM ®-172):

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28





Fabrication Properties of CuBe2 (C17200) Beryllium Copper Alloy
Machining
  • C17200 copper alloy has a machinability rate of 20%.
Welding
  • Butt welding, seam welding, spot welding, coated metal arc welding, gas shielded arc welding, brazing and soldering are recommended for C17200 copper alloys. Oxyacetylene welding is not recommended for C17200.
Forging
  • Forging for C17200 occurs at a temperature of 649 to 816 degrees Celsius.

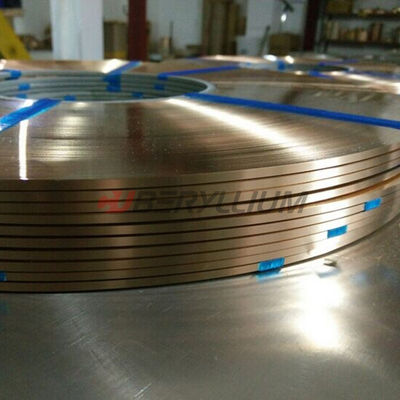

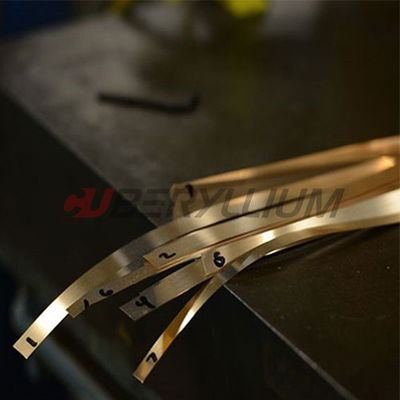

Product Photos:

Astm B194 CuBe2 Beryllium Copper Temper Td04 Tapes 0.1mmx250mm For Plastic Molds 0



Applications of UNS.C17200 Beryllium Copper Alloy(CUBERYLLIUM ®-172):

CUBERYLLIUM ®-172 is usually used for electrical industry, fasteners and industrial.

Electrical Industry: electrical switch and relay blades(switch parts, relay parts), clips, fuse clips, connectors, spring connectors, navigational indstruments, contact bridges, belleville washers;

Fasteners: washers, lock washers, fasteners, retaining rings, roll pins, screws, bolts;

Industrial: pump parts, springs, electrochemical, spline shafts, non sparking safety tools, flexible metal hose, housings for indtruments, bearings, bushings, valve seats, valve stems, disphragms, springs, welding equipment, rolling mill parts, valves, bourdon tubes, wear plates on heavy equipment, bellows.



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
