Astm B196 A TB00 Annealed CuBe2 Copper Strips For Bearings High Strength Conductivity

  • Astm B196 A TB00 Annealed CuBe2 Copper Strips For Bearings High Strength Conductivity
  • Astm B196 A TB00 Annealed CuBe2 Copper Strips For Bearings High Strength Conductivity
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CuBe2 Copper Strips Max Coil Wt. 2T
Thinnest Thick. 0.02mm Max Width 305mm
Standard ASTM B194, SAE J463, J461 Hardness <130
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State Annealed (A Or TB00) Application For Bearings
High Light

A TB00 Annealed CuBe2 Copper Strips

,

CuBe2 Copper Strips For Bearings

,

becu copper Strip
Leave a Message
Product Description

High Strength And Conductivity Annealed (A or TB00) CuBe2 Copper Strips For Bearings

Product Normal Description:

Product Name: High strength and conductivity copper strips

Grade: CuBe2

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.1mm-0.5mm

State: Annealed (A or TB00)

Typical Application: used for bearings

Product Brand: CUBERYLLIUM®



Chemical Composition of CuBe2 Copper Alloy (CUBERYLLIUM ®-172):

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of CuBe2 Copper Alloy(CUBERYLLIUM ®-172):

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of CuBe2 Copper Strip(CUBERYLLIUM ®-172):

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28





The Fabrication Properties of CuBe2 (C17200) Copper Alloys
Hot Working

  • C17200 copper alloys have good hot working capabilities.
Cold Working

  • C17200 copper alloys have excellent cold working properties.
Annealing

  • Annealing is the process of heating metal or glass and allowing it to cool slowly. This process removes internal stresses and strengthens it. C17200 copper alloys are annealed at temperatures from 774 to 802 degrees Celsius.
Other fabrication properties
  • Include blanking, drawing, drilling, forming and bending, tapping, and turning.



Applications of UNS.C17200 Beryllium Copper Alloy(CUBERYLLIUM ®-172):

CUBERYLLIUM ®-172 is usually used for electrical industry, fasteners and industrial.

Electrical Industry: electrical switch and relay blades(switch parts, relay parts), clips, fuse clips, connectors, spring connectors, navigational indstruments, contact bridges, belleville washers;

Fasteners: washers, lock washers, fasteners, retaining rings, roll pins, screws, bolts;

Industrial: pump parts, springs, electrochemical, spline shafts, non sparking safety tools, flexible metal hose, housings for indtruments, bearings, bushings, valve seats, valve stems, disphragms, springs, welding equipment, rolling mill parts, valves, bourdon tubes, wear plates on heavy equipment, bellows.

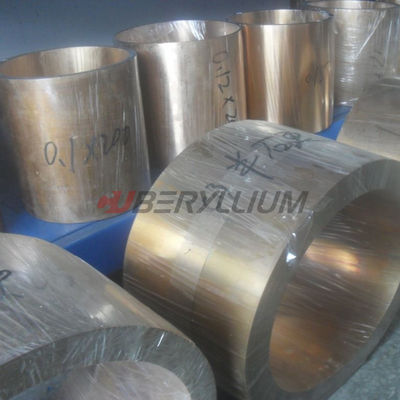

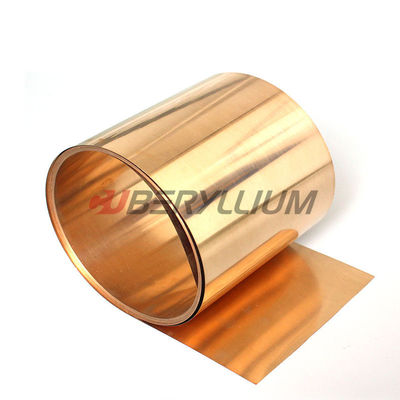

Product Photos:

Astm B196 A TB00 Annealed CuBe2 Copper Strips For Bearings High Strength Conductivity 0



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
