1/2Hard TD02 Tempered Alloy25 Beryllium Copper Strip For Welding Electrodes

  • 1/2Hard TD02 Tempered Alloy25 Beryllium Copper Strip For Welding Electrodes
  • 1/2Hard TD02 Tempered Alloy25 Beryllium Copper Strip For Welding Electrodes
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number Alloy25
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tempered Alloy25 Copper Strip Max Coil Wt. 2T
Thinnest Thick. 0.02mm Max Width 305mm
Standard ASTM B194, SAE J463, J461 Hardness 180~220HV
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State 1/2Hard (TD02) Application For Welding Electrodes Application
High Light

1/2Hard Alloy25 Beryllium Copper Strip

,

TD02 Alloy25 Beryllium Copper Strip

,

cube2 material Strip
Leave a Message
Product Description

1/2Hard (TD02) Tempered Alloy25 Copper Strip For Welding Electrodes Application

Product Normal Description:

Product Name: Tempered copper strip

Grade: Alloy25

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.1mm-0.5mm

State: 1/2Hard(TD02)

Typical Application: used for welding electrodes

Product Brand: CUBERYLLIUM®



Introduction of Alloy 25 (C17200) Copper Alloy:

Other Designations of Alloy 25(C17200)
  • AMS 4651
  • AMS 4725
  • ASTM B194
  • ASTM B196
  • ASTM B197
  • ASTM B570
  • MIL C-21657
  • SAE J461
  • SAE J463
Fabrication of Alloy 25(C17200) Machinability
  • The machinability rate of C17200 copper alloys is 20%.
Welding
  • Welding procedures such as butt welding, seam welding, spot welding, coated metal arc welding, gas shielded arc welding, brazing and soldering are recommended for C17200 copper alloys. For this type of alloys, oxyacetylene welding is not recommended.
Forging
  • Forging of C17200 copper alloys is carried out at temperature ranging from 649 to 816°C (1200 to 1500°F).



Chemical Composition of C17200 Beryllium Copper Alloy (CUBERYLLIUM ®-172):

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of C17200 Beryllium Copper Alloy(CUBERYLLIUM ®-172):

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of C17200 Beryllium Copper Strip(CUBERYLLIUM ®-172):

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28

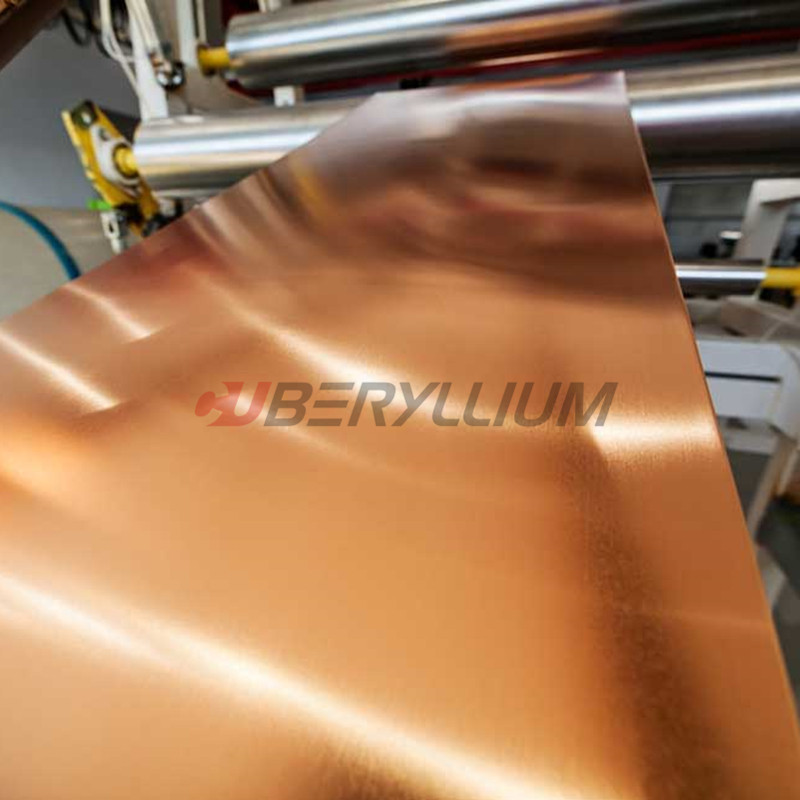

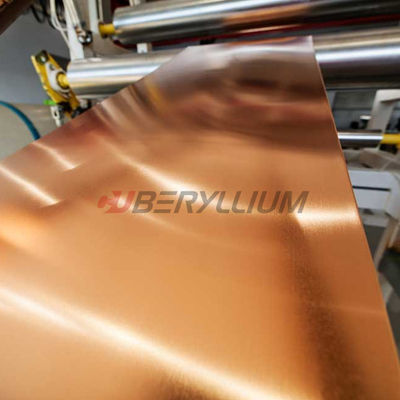

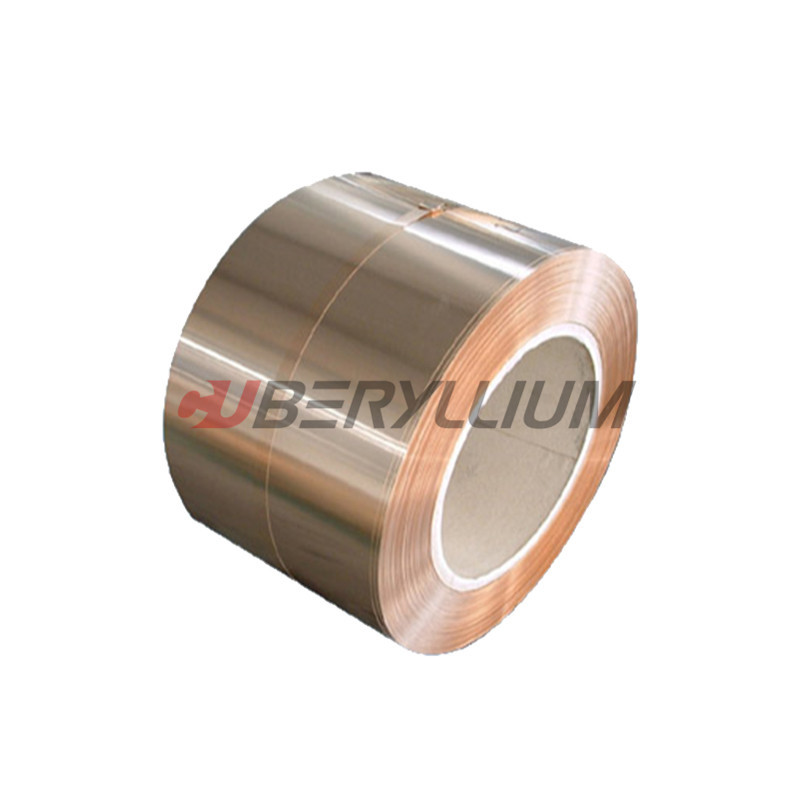

Product Photos:

1/2Hard TD02 Tempered Alloy25 Beryllium Copper Strip For Welding Electrodes 0



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
