C17200 QBe2 Beryllium Copper Strip Coil Foil With Excellent Electrical Conductivity 0.05mm

  • C17200 QBe2 Beryllium Copper Strip Coil Foil With Excellent Electrical Conductivity 0.05mm
  • C17200 QBe2 Beryllium Copper Strip Coil Foil With Excellent Electrical Conductivity 0.05mm
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number C17200/QBe2
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name C17200/QBe2 Beryllium Copper Strip/Coil/Foil Max Coil Wt. 2T
Thickness 0.05mm Max Width 305mm
Length 200mm, 500mm, 1000mm Or As Required Standard ГОСТ 1789-70
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished State Soft, Hard, Ageing(Soft), Ageing(Hard)
Typical Application For Spring Connectors Available Shapes Strip, Sheet, Rod, Wire, Tube
High Light

C17200 QBe2 Beryllium Copper Strip

,

Beryllium Copper Strip Coil 0.05mm

,

copper-beryllium Strip
Leave a Message
Product Description

C17200/QBe2 Beryllium Copper Strip/Coil/Foil With Excellent Electrical Conductivity

Product Description:

Name: Beryllium copper strip/coil/foil

Grade: C17200/QBe2

Thickness: 0.05mm

Max Width: 305mm

State: Soft, Hard, Ageing(Soft), Ageing(Hard)

Surface: Bright/Polished

Application: for spring connectors



Beryllium copper alloys are highly preferred due to their strength and hardness, among other copper properties. In comparison to other copper alloys, beryllium copper alloys have the highest strength and hardness. This means that Beryllium copper alloys have extensive applications. Beryllium copper alloys are available in large quantities by CUBERYLLIUM®.



CUBERYLLIUM®-Qbe2 also named Cube2 Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. Qbe2 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition. Qbe2 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



Chemical Composition of QBe2 Beryllium Copper Alloy:

CUBERYLLIUM® Brand

Gost-

Number

 Beryllium Al Ni Fe Cu Si
Cuberyllium-Qbe2 Qbe2 1.80-2.10 0.15 max 0.2~0.5

0.15

max

 Rest.

0.15

max


Typical Physical Properties of QBe2 Beryllium Copper Alloy:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Standard of QBe2 Beryllium Bronze Alloy:

End Product Specification
Chemistry ГОСТ 18175 – 78
Wire ГОСТ 15834 – 77
Rod ГОСТ 15835-70
Strip&Sheet ГОСТ 1789-70



Mechanical And Electrical Properties of QBe2 Beryllium Copper Strip:

Name Temper Thickness
(mm)		 Tensile Strength Hardness Elongation (min)
MPa HV Percent
Qbe2 Soft <0.15 >390 <130 >30%
0.15~0.25 390~590
>0.25 390~590
Hard <0.15 >590 >170 >3%
0.15~0.25 590~880
>0.25 640~930
After Ageing
(Soft)		 <0.15 >1080 >330 >2%
0.15~0.25 1080~1470
>0.25 1130~1470
After Ageing
(Hard)		 <0.15 >1080 >360 >1.5%
0.15~0.25 1130~1570
>0.25 1170~1570



Standard Tolerance of QBe2 Beryllium Copper Strip:

Tolerance Sheet
(MM)
Strip
Thickness		 CuBeryllium®
Standard Tolerance
over incl. plus or minus
0.03 0.08 0.003
0.08 0.1 0.004
0.1 0.15 0.005
0.15 0.2 0.006
0.2 0.25 0.007
0.25 0.4 0.008
0.4 0.55 0.009
0.55 0.7 0.01
0.7 0.9 0.015
0.9 1.5 0.025
Note: Tolerances apply to rolled and mill hardened strip.

New information plz contact info&cuberyllium.com.

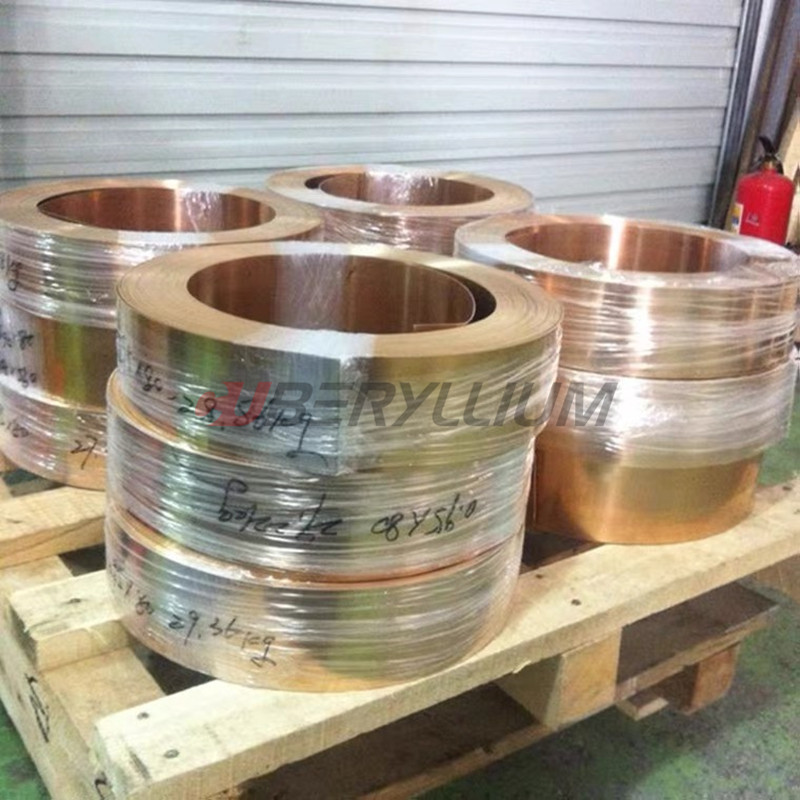

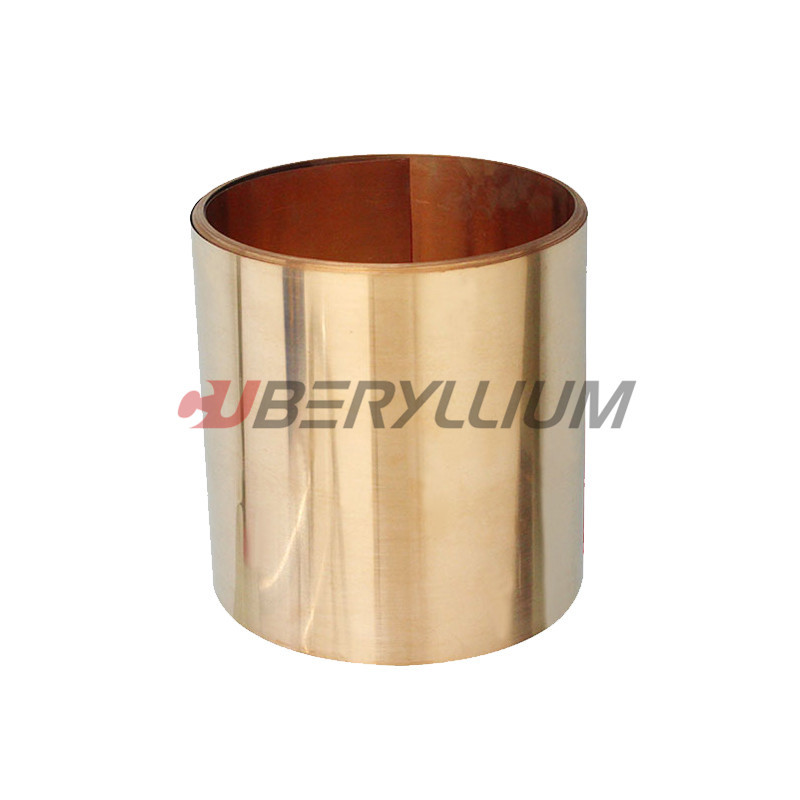

Product Photo:

C17200 QBe2 Beryllium Copper Strip Coil Foil With Excellent Electrical Conductivity 0.05mm 0



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
