BrB2 Qbe2.0 Beryllium Copper Strip Tape Thickness 0.12mmx250mm Hard Temper

  • BrB2 Qbe2.0 Beryllium Copper Strip Tape Thickness 0.12mmx250mm Hard Temper
  • BrB2 Qbe2.0 Beryllium Copper Strip Tape Thickness 0.12mmx250mm Hard Temper
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number BrB2 (Qbe2.0)
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Tape BrB2 (Qbe2.0) Max Coil Wt. 2T
Thinnest Thick. 0.02mm Max Width 305mm
Standard ГОСТ 1789-70 Heat Treatment Of Aging Age 3 Hrs At 600°F (315 C).
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
Hardness >170 Tensile Strength >590 Mpa
Normal Be% 1.8~2.1% Elongation Percent >3%
Electrical Conductivity 15~19% IACS
High Light

BrB2 Qbe2.0 Beryllium Copper Strip Tape 0.12mmx250mm

,

Beryllium Copper Strip Tape 0.12mmx250mm

,

cube 2 copper alloy Strip 0.12mmx250mm
Leave a Message
Product Description

Beryllium Copper Tape BrB2 (Qbe2.0) Thickness 0.12mmx250mm Hard Temper

Product Description:

Name: Beryllium Copper Tape

Grade: BrB2 (Qbe2.0)

Specification: 0.12mmx250mm

Tolerance: +/-0.005mm

State: Hard

Surface: Bright



CUBERYLLIUM ®-Qbe2 also named Cube2 Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. Qbe2 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition. Qbe2 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



Chemical Composition of Beryllium Copper Alloy BrB2 (Qbe2.0):

CUBERYLLIUM® Brand

Gost-

Number

 Beryllium Al Ni Fe Cu Si
Cuberyllium-Qbe2 Qbe2 1.80-2.10 0.15 max 0.2~0.5

0.15

max

 Rest.

0.15

max


Typical Physical Properties of Beryllium Copper Alloy BrB2 (Qbe2.0):
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Shape Available of Beryllium Copper Alloy Qbe2.0:

Cold Rolled Hot Worked
Strip ✓ Rod ✓
Flat Wire ✓ Bar ✓
Rectangular Bar ✓ Plate ✓
Square Bar ✓ Tube ✓
Plate ✓ 　 　
Cold Drawn Special Shapes
Rod ✓ Turned Rod ✓
Bar ✓ Disc ✓
Tube&Capillary ✓ Forgings ✓
Wire ✓ Extrusions ✓



Mechanical Properties of Beryllium Copper Tape BrB2 (Qbe2.0)
Name Temper Thickness
(mm)		 Tensile Strength Hardness Elongation (min)
MPa HV Percent
Qbe2 Soft <0.15 >390 <130 >30%
0.15~0.25 390~590
>0.25 390~590
Hard <0.15 >590 >170 >3%
0.15~0.25 590~880
>0.25 640~930
After Ageing
(Soft)		 <0.15 >1080 >330 >2%
0.15~0.25 1080~1470
>0.25 1130~1470
After Ageing
(Hard)		 <0.15 >1080 >360 >1.5%
0.15~0.25 1130~1570
>0.25 1170~1570



Standard Tolerance of Beryllium Copper Tape:

Tolerance Sheet
(MM)
Strip
Thickness		 CuBeryllium®
Standard Tolerance
over incl. plus or minus
0.03 0.08 0.003
0.08 0.1 0.004
0.1 0.15 0.005
0.15 0.2 0.006
0.2 0.25 0.007
0.25 0.4 0.008
0.4 0.55 0.009
0.55 0.7 0.01
0.7 0.9 0.015
0.9 1.5 0.025
Note: Tolerances apply to rolled and mill hardened strip.

New information plz contact info&cuberyllium.com

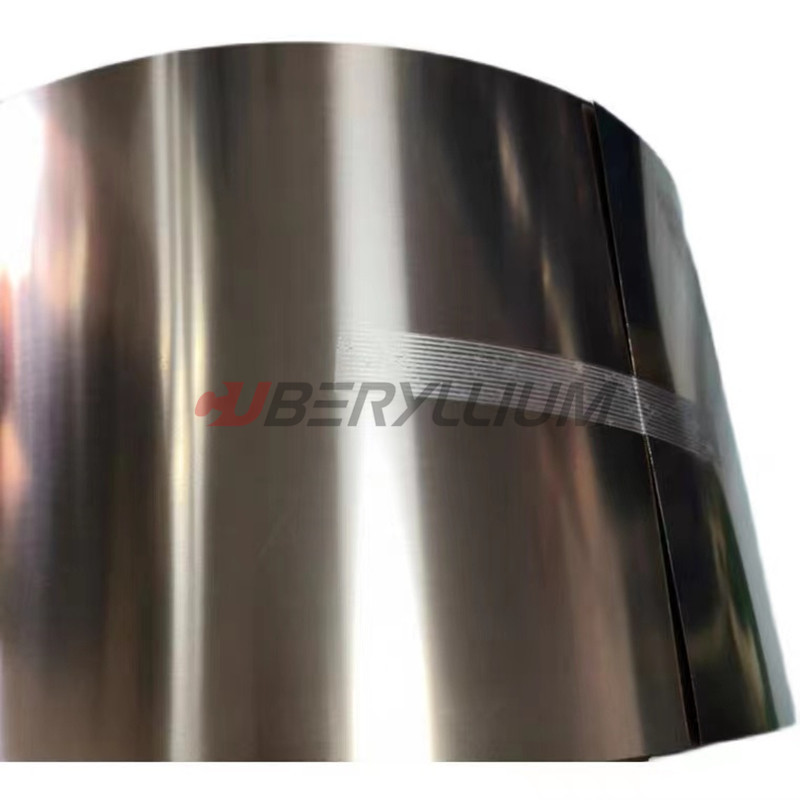

Product Photo:

BrB2 Qbe2.0 Beryllium Copper Strip Tape Thickness 0.12mmx250mm Hard Temper 0



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
