ASTM C17410 Beryllium Copper Foil Tape 0.08mm For Spring Contacts
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO,SGS |
| Model Number | ASTM C17410 |
| Minimum Order Quantity | 200 |
| Price | 30USD |
| Packaging Details | in coil packed into wooden case |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ASTM C17410 Thickness 0.08mm Beryllium Copper Tape | CUBERYLLIUM® Grade | CUBERYLLIUM® 741 |
|---|---|---|---|
| Max Width | 305mm | Max Coil Wt. | 2T |
| Thinest Thick. | 0.05mm | Length | 200mm, 500mm, 1000mm Or As Required |
| Standard | ASTM B768, B888 | Safe Handling | No Special Health Risk. |
| Machining Property | Good | State | 1/2 HT(TH02), HT(TH04) |
| Surface | Bright, Polished | Typical Application | For Connector Application |
| Available Shapes | Strip, Sheet | ||
| High Light | ASTM C17410 Beryllium Copper foil,C17410 Beryllium Copper foil 0.08mm,c17410 alloy |
||
Product Description
ASTM C17410 Thickness 0.08mm Beryllium Copper Tape Used For Spring Contacts
Product Name: Beryllium Copper Tape
Grade: ASTM C17410
Size: Thickness 0.8mm, Or as customers' requirement
State: 1/2 HT(TH02), HT(TH04)
Product Informance of CUBERYLLIUM® Company:
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-741 also named -C17410 Copper alloy with low beryllium content. It contains only few alloy elements: Beryllium and cobalt. Alloy 741, C17410 combines outstanding electric conductivity with high mechanical strength (typical values: 50% et 750N/mm2 .
Alloy 741 is supplied hardened so that a later heat treatment of the products is not necessary. This reduces production costs and prevents the deformation of the finished products. Although alloy 741 is supplied in hardened condition, it shows excellent bending behavior. This alloy distinguishes by excellent bending behavior in connection with mechanical strength and conductivity, which outperforms any other copper alloy of this price level.
Chemical Composition of ASTM C17410 Beryllium Copper Alloys:
| Cuberyllium Brand | UNS-Number | Beryllium | Cobalt | Nickel | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Lead | Copper |
| Cuberyllium-C741 | C17410 | 0.15-0.50 | 0.35-0.60 | _ | _ | _ | _ | Balance |
Forms Available
Alloy 174 mill hardened strip is available in widths ranging from 1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.
Typical application of ASTM C17410 Beryllium Copper Tape:
Bearings
Plastic molds
Welding electrodes
Current-carrying springs
Corrosioin resistant components
Precision screw machined parts
Connectors for appliances and consumer electronics
| Related material specifications of ASTM C17410 Beryllium Copper Alloys | |
| Strips | ASTM B768, B888 |
| Sheets | ASTM B768, B888 |
Typical Physical Properties of ASTM C17410 Beryllium Copper Alloys:
| Elastic Modulus | Melting Point (Solidus) | Electrical Conductivity/ Resistivity |
Density |
Thermal Expansion Coefficient | Thermal Conductivity (25 °C) |
| 138 GPa | 1020 °C | 2.9-3.8 μΩcm | 8.80 g/cm3 | 17.6 x 10-6 m/m °C | 230 W/ m K |
MECHANICAL PROPERTIES of ASTM C17410 Beryllium Copper Tape:
| Form | Temper | Temper Code |
Tensile Strength (ksi) |
YS-0.2% Offset (ksi) |
Elongation (%) |
Rockwell B scale |
|---|---|---|---|---|---|---|
| Flat Products | 1/2 Hard and Precipitation Heat Treated | TH02 | 105 Typ | 90 Typ | 15 Typ | 93 Typ |
| Hard and Precipitation Heat Treated | TH04 | 120 Typ | 110 Typ | 12 Typ | 102 Typ | |
| * Measured at room temperature, 68°F (20°C). | ||||||

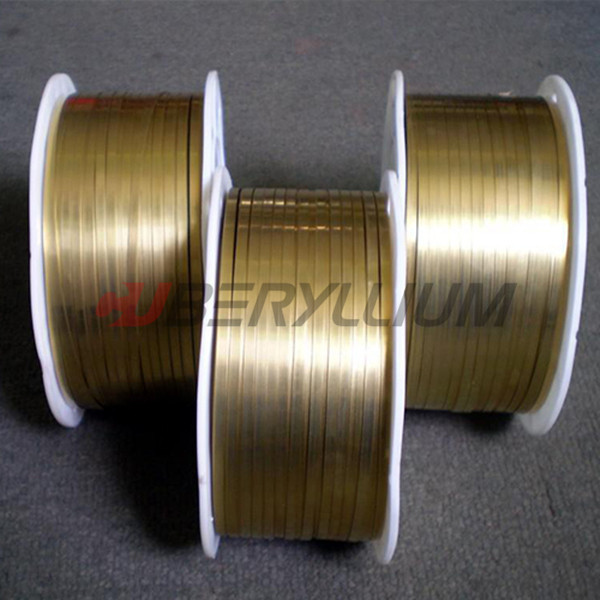

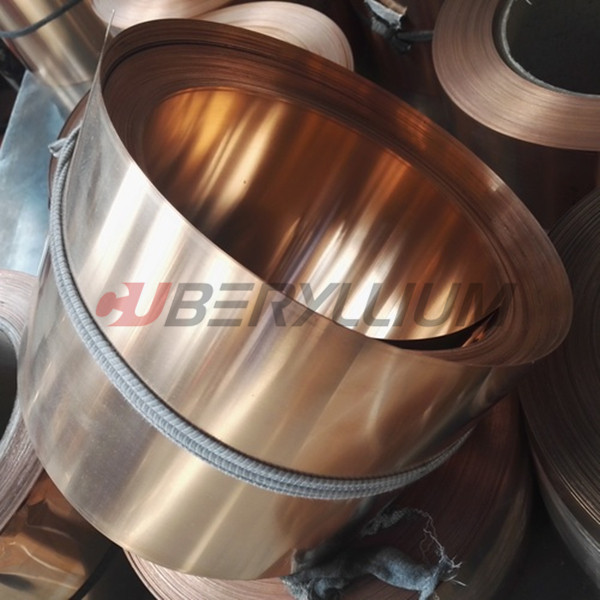

Product Photo:
Weldability
Soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are all recommended
Hot & Cold Workability
Good hot working properties. Excellent cold working properties.
Health and Safety
Processing beryllium-containing alloys poses a health risk if safe practices are not followed. Inhalation of airborne beryllium can cause serious lung diseases in some individuals. Occupational safety and health regulatory agencies worldwide have set mandatory limits on occupational respiratory exposures. Read and follow the guidance in the Safety Data Sheet (SDS) before working with this material.
For questions on safe practices for beryllium-containing alloys, contact us by e mail at info@cuberyllium.com
Fabrication
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do mill harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
